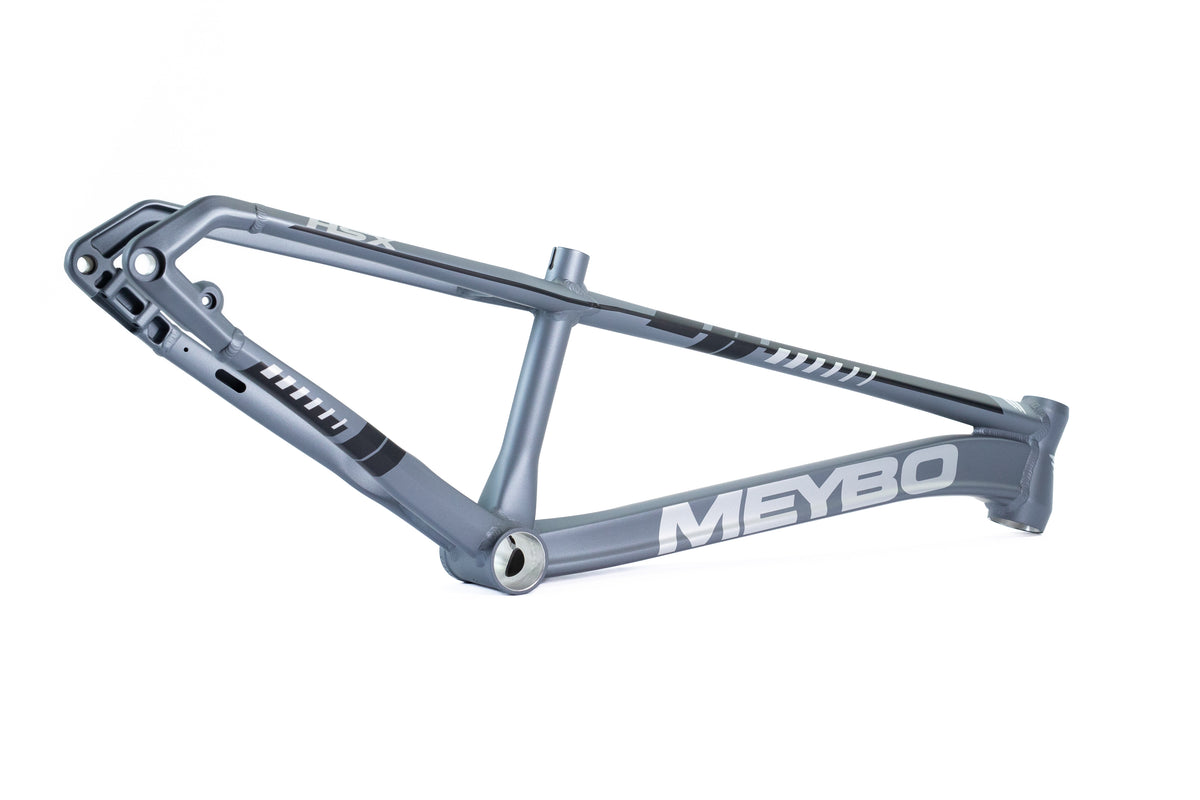

Meybo HSX Alloy BMX Race Frame

The Meybo HSX Alloy delivers the same race-proven geometry and aggressive performance as the carbon version, built around a lightweight and durable alloy platform engineered for serious BMX racing. Designed to maximize stiffness, handling precision, and efficient power transfer, the HSX Alloy is built to perform at the highest levels of competition.

Used by elite riders, including members of the Dutch National U23 squad, the HSX platform is engineered to handle the demands of modern BMX racing while maintaining a stable and predictable ride feel through every section of the track.

The frame features Meybo’s fixed chainstay system combined with a 15mm bolt-through rear axle and HSX tensioner system. This design maintains a consistent chainstay length regardless of gearing changes, ensuring the bike delivers the same handling characteristics every ride.

On Pro sizes and larger, the HSX Alloy utilizes a tapered 1.5 head tube for increased front-end stiffness and improved steering precision at high speeds. An oversized bottom bracket platform further enhances power transfer for explosive acceleration out of the gate.

The integrated flat mount disc brake system provides clean aesthetics, reliable braking performance, and simplified maintenance.

Whether racing at the local national level or competing internationally, the 2026 Meybo HSX Alloy is designed to help riders maximize performance every lap.

Key Features

• 6061-T6 multiple-butted hydroformed alloy tubing
• Race-proven Meybo HSX geometry
• Flat mount disc brake system
• Fixed 15mm bolt-through rear dropouts
• HSX chain tensioner system for precise chain alignment
• Internal brake hose routing
• Integrated seat clamp design
• Derailleur compatible for geared setups
• Oversized bottom bracket platform for maximum stiffness

Specifications

Seatpost Size

• Expert / Expert XL:
  • 25.4mm
• Pro sizes and larger:
  • 27.2mm

Bottom Bracket

• Youth sizes:
  • BB86
• Pro sizes and larger:
  • BB386EVO

Brake Mount

• Flat mount disc brake

Headset

• Youth:
  • 1-1/8” Integrated
• Pro sizes and larger:
  • Tapered Integrated 1.5”

Rear Axle

• 15mm bolt-through axle included
• Compatible with 15mm bolt-through hubs only

Frame Geometry

Expert

• Top Tube:
  • 19.69”
• Chainstay:
  • 13.39”
• Head Angle:
  • 73.5°
• Seat Angle:
  • 71°
• Weight:
  • 1402g

Expert XL

• Top Tube:
  • 20.67”
• Chainstay:
  • 13.58”
• Head Angle:
  • 73.5°
• Seat Angle:
  • 71°
• Weight:
  • 1450g

Pro

• Top Tube:
  • 21.10”
• Chainstay:
  • 14.52”
• Head Angle:
  • 74°
• Seat Angle:
  • 71°
• Weight:
  • 1597g

Pro XL

• Top Tube:
  • 21.49”
• Chainstay:
  • 14.96”
• Head Angle:
  • 74°
• Seat Angle:
  • 71°
• Weight:
  • 1660g

Pro XXL

• Top Tube:
  • 21.96”
• Chainstay:
  • 15.19”
• Head Angle:
  • 74°
• Seat Angle:
  • 71°
• Weight:
  • 1687g

Pro XXXL

• Top Tube:
  • 22.48”
• Chainstay:
  • 15.47”
• Head Angle:
  • 74°
• Seat Angle:
  • 71°
• Weight:
  • 1714g

Pro XXXXL

• Top Tube:
  • 22.95”
• Chainstay:
  • 15.62”
• Head Angle:
  • 74.3°
• Seat Angle:
  • 71°
• Weight:
  • 1743g

Cruiser

• Top Tube:
  • 22.20”
• Chainstay:
  • 15.47”
• Head Angle:
  • 74°
• Seat Angle:
  • 71°
• Weight:
  • 1698g

If you’re chasing podium finishes, the 2026 Meybo HSX Alloy is built to get you there.
