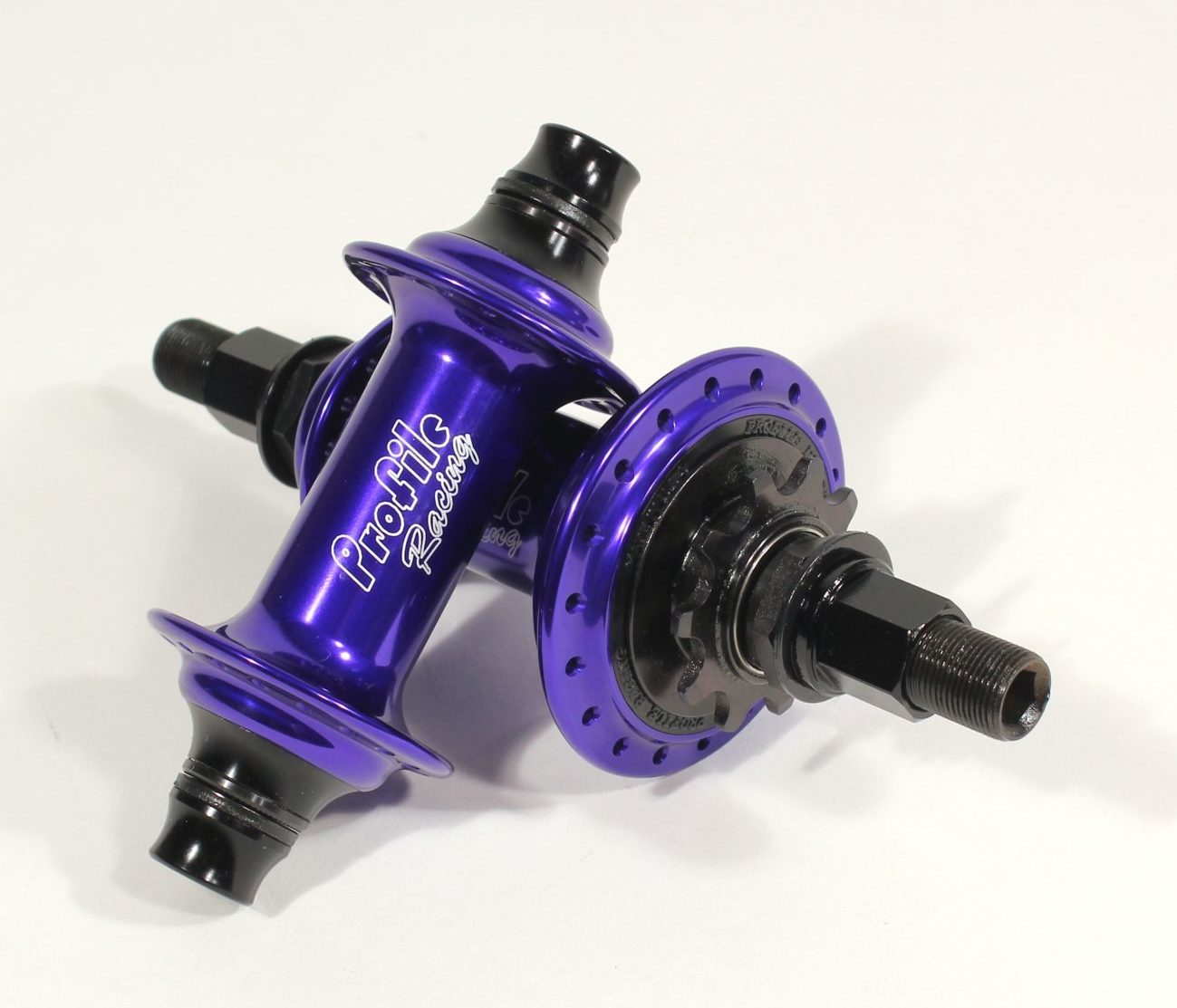

PROFILE ELITE CASSETTE HUBSET

ELITE CASSETTE HUBSET

***All Elite Hubs(regardless of color) are built with BLACK anodized Volcano & Cone spacers***

***20mm & 15mm front hub options now available with Elite hubset***

BUILD YOUR OWN HUBSET (BYOH)
Choices for following:
-Hub Color
-Spoke holes/Drive side
-Axles(Front & Cassette)-
-Axle Bolts(Front & Cassette):  Choose any Chromo bolt option at NO EXTRA CHARGE!
-Cassette Driver
-Cog

-Profile Racing designed Elite Cassette Hubset to be the best racing hubset available! They are also suitable for trails and light park use.

• 6 pawl driver for 204 points of engagement means instant forward motion at the first application of pedal pressure.
• Black anodized Volcano cones and aluminum cone spacers with hardened CrMo knurls to bite into dropouts.
• Front hub choices of 3/8″, 14mm, & 15mm/20mm oversized axles!
• Bolt choices for 3/8″ threaded aluminum axle:
  -Standard 3/8 socket head bolts(8mm hex)- come with anodized Volcano cones
  -17mm Hex Head outer w/8mm internal hex
  -Button Head w/8mm internal hex
• CrMo or Ti axle options(14mm Alum nuts included) .
• CrMo or Ti one-piece drivers.
• Aluminum or Titanium splined drivers for Profile Cogs.
• Standard CrMo Cogs, or upgrade to Aluminum or Elite CrMo Cogs.
• RHD or LHD(36h & 9t Only)
• 36h or 28h(RHD Only)
• Standard BMX 110mm(rear) & 100mm(front) hub widths
• 3/8’s aluminum axle NOT intended for heavy street riding.

How to Service Your Profile Rear Elite Hub

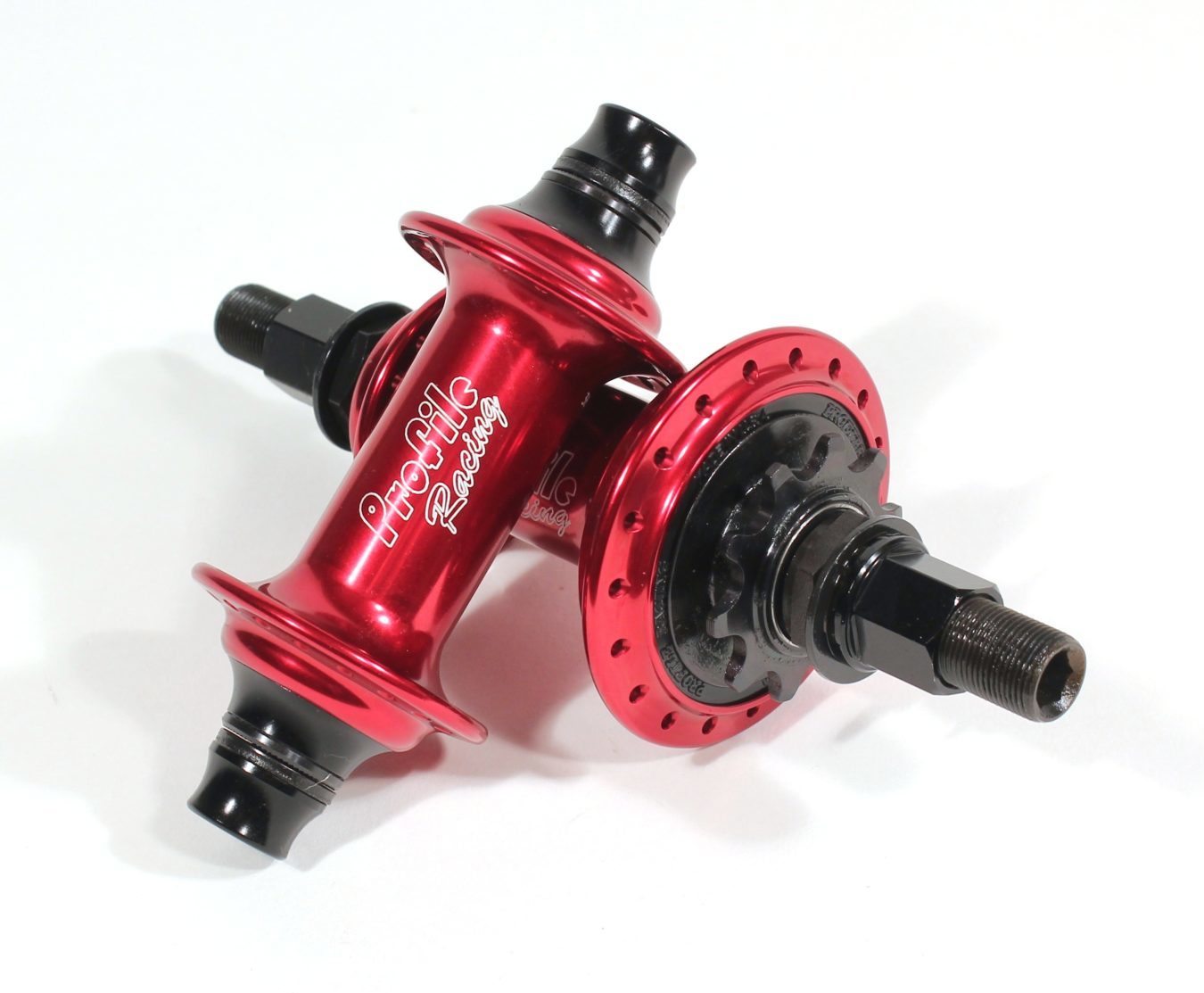

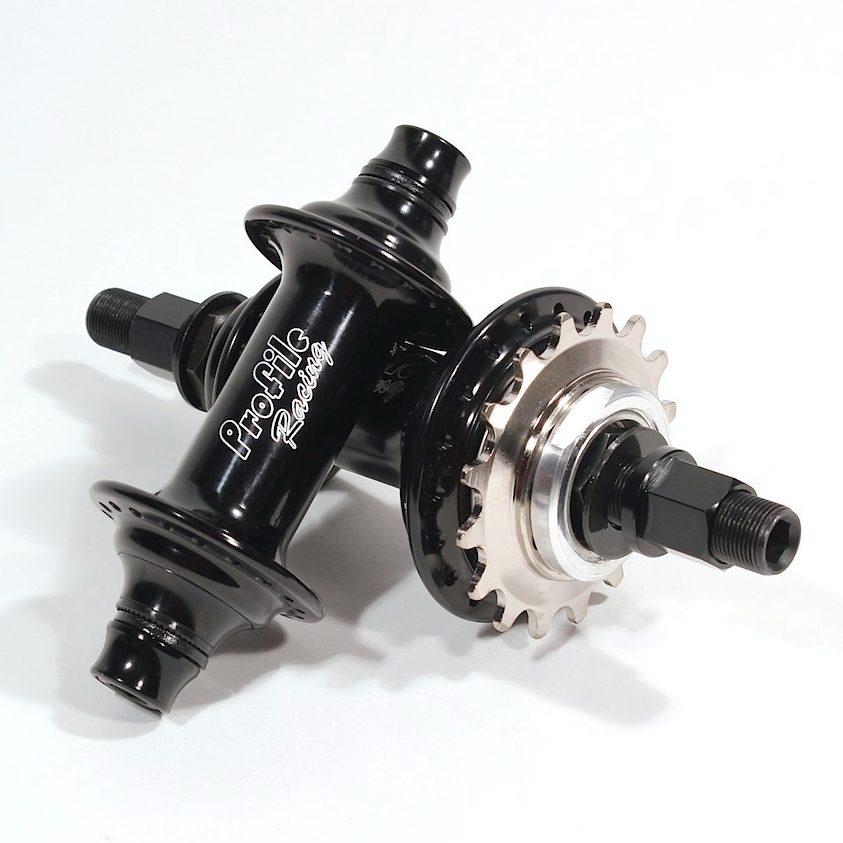

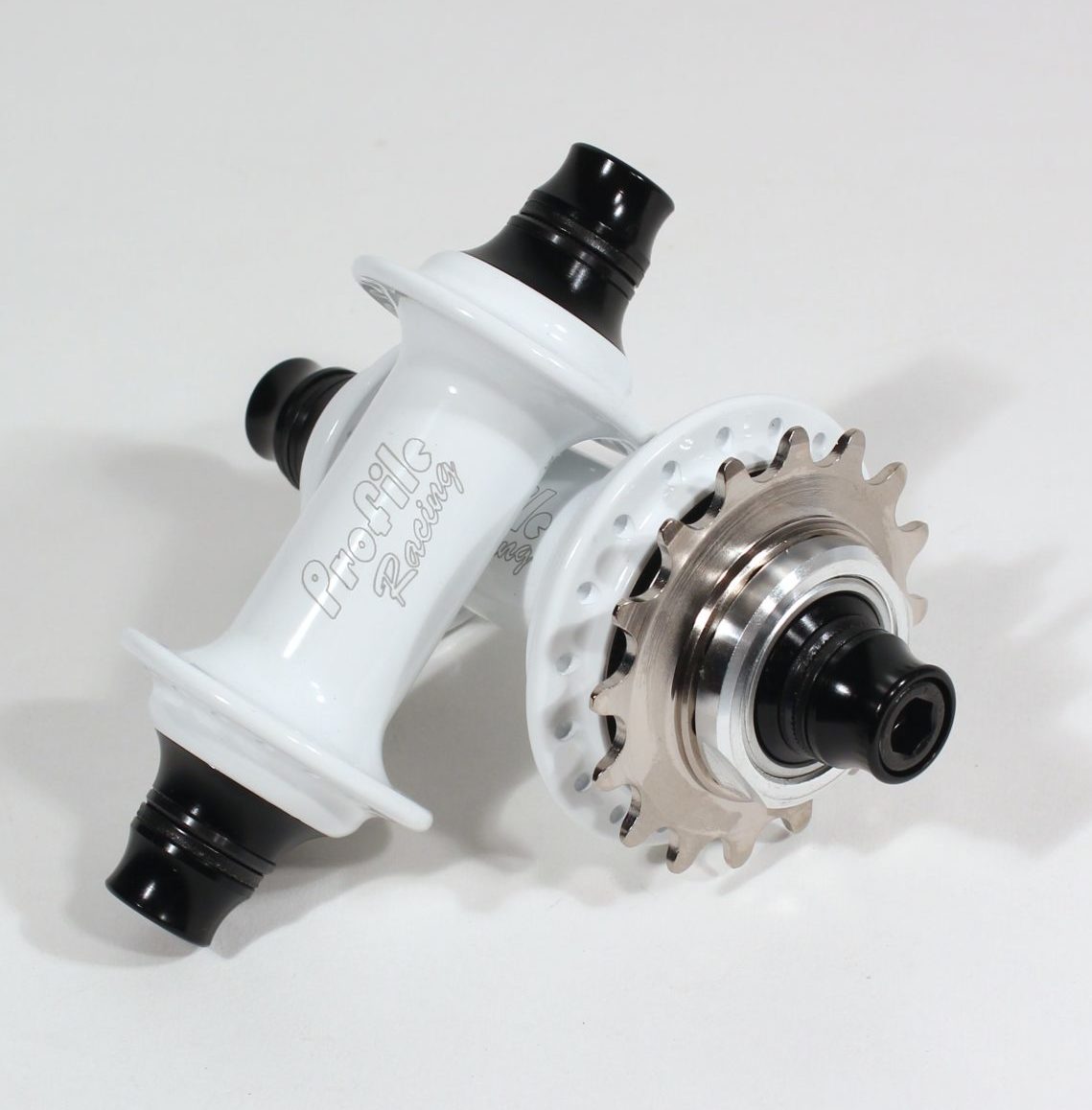

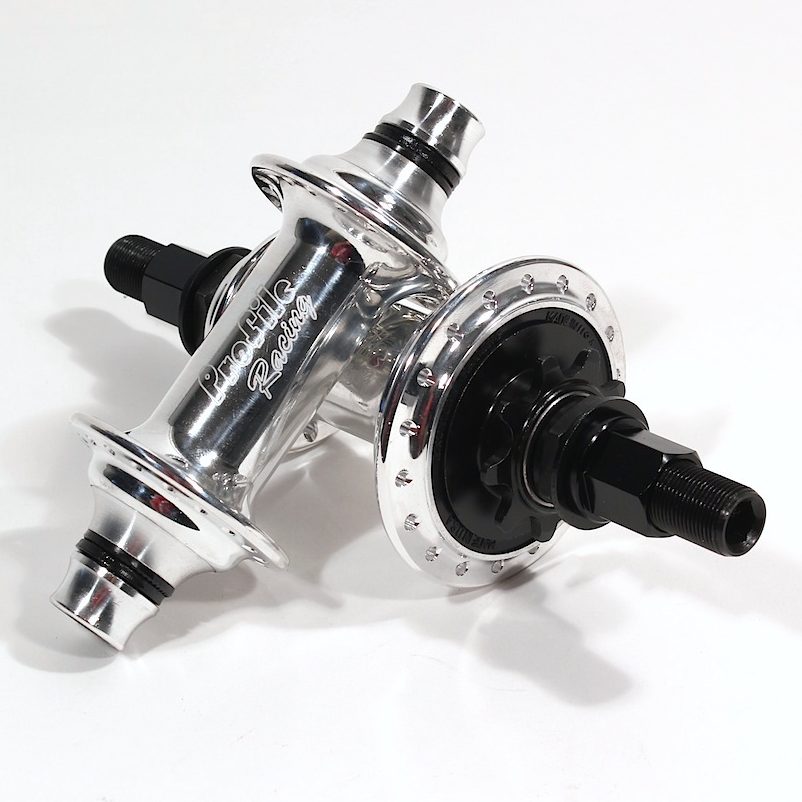

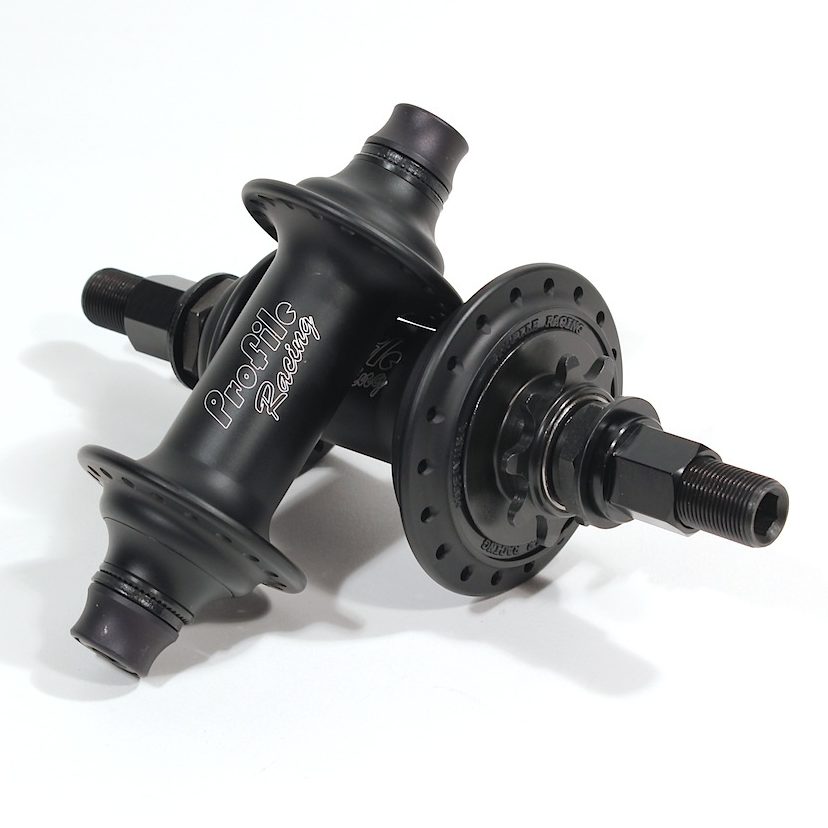

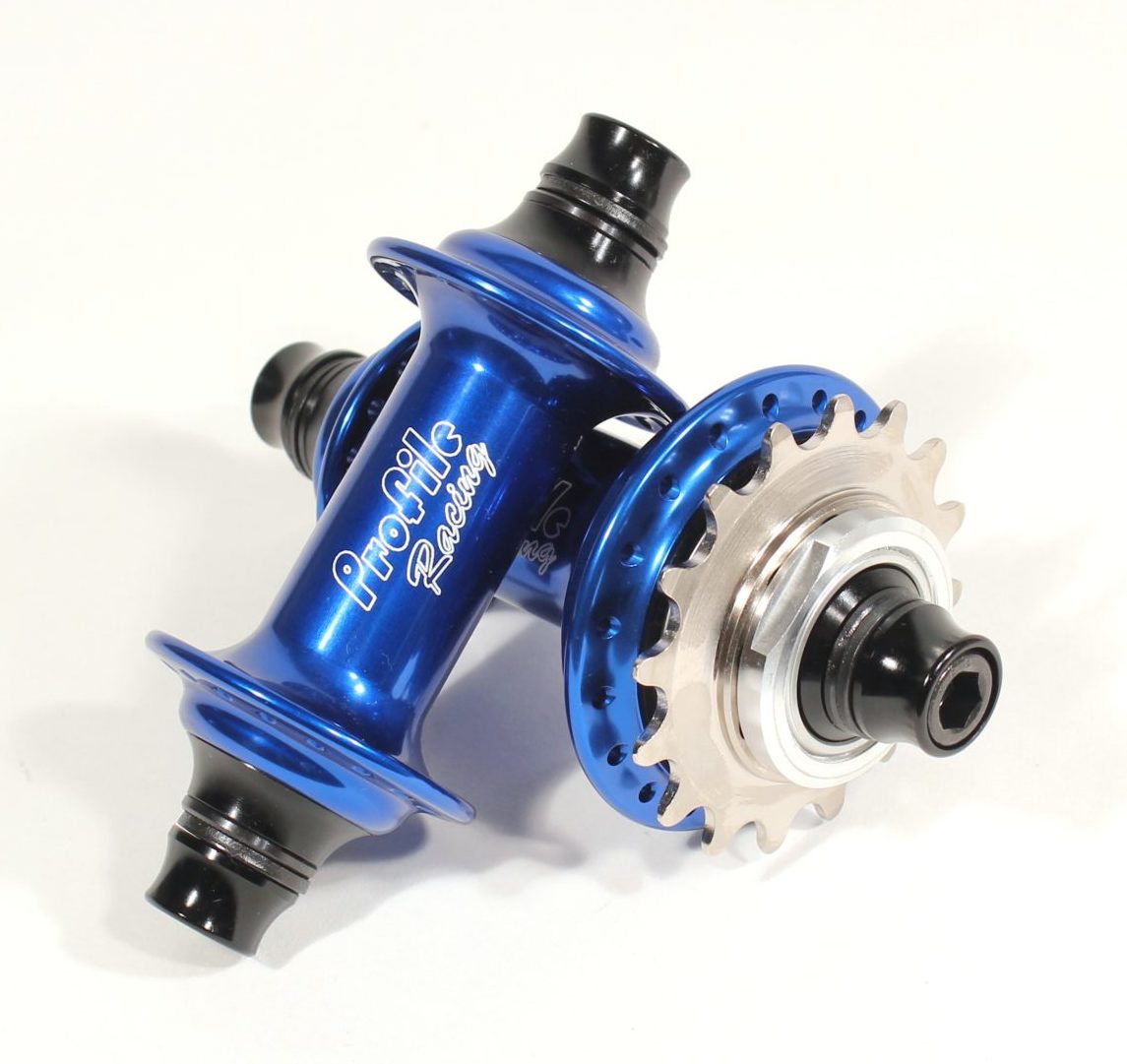

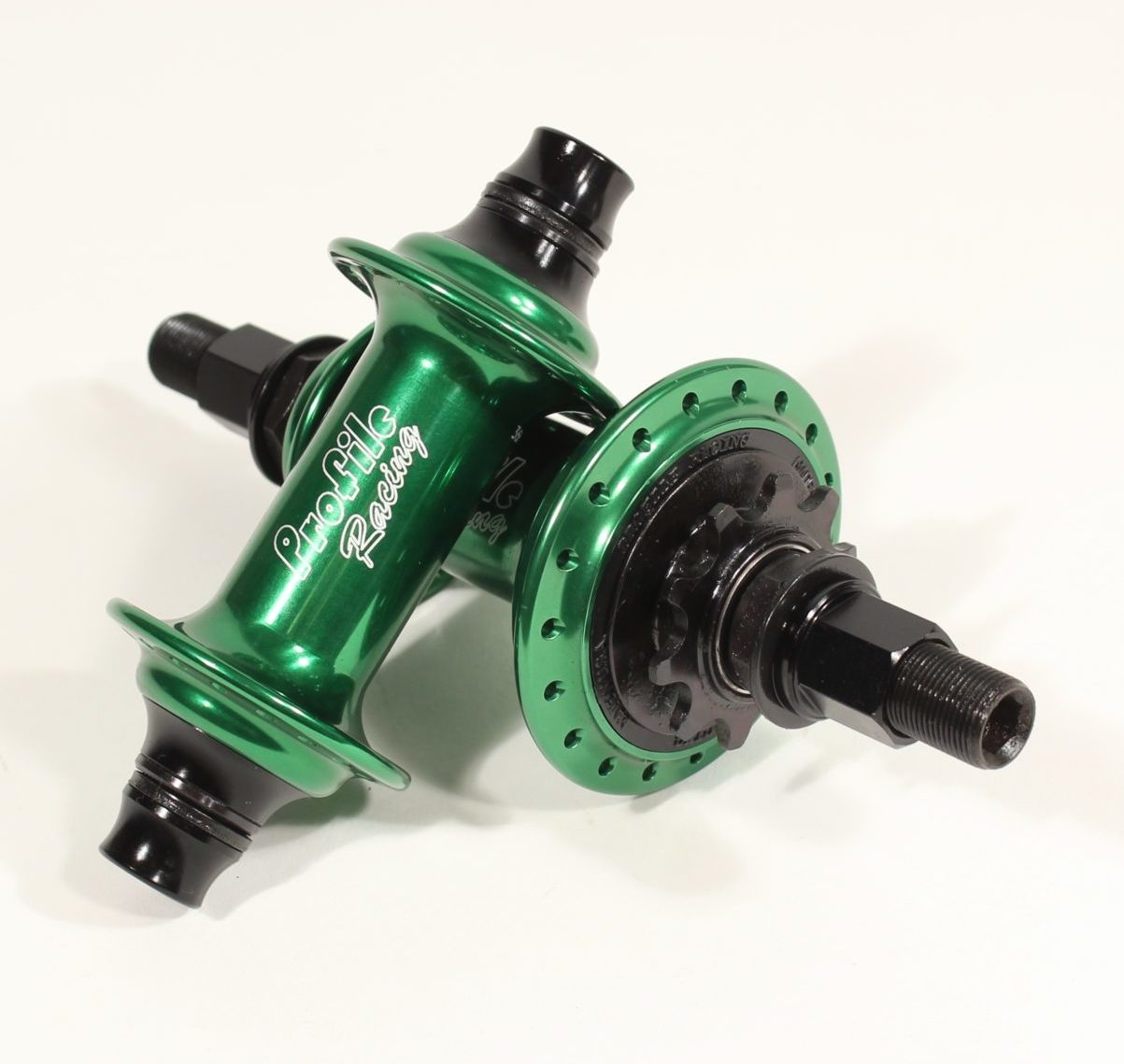

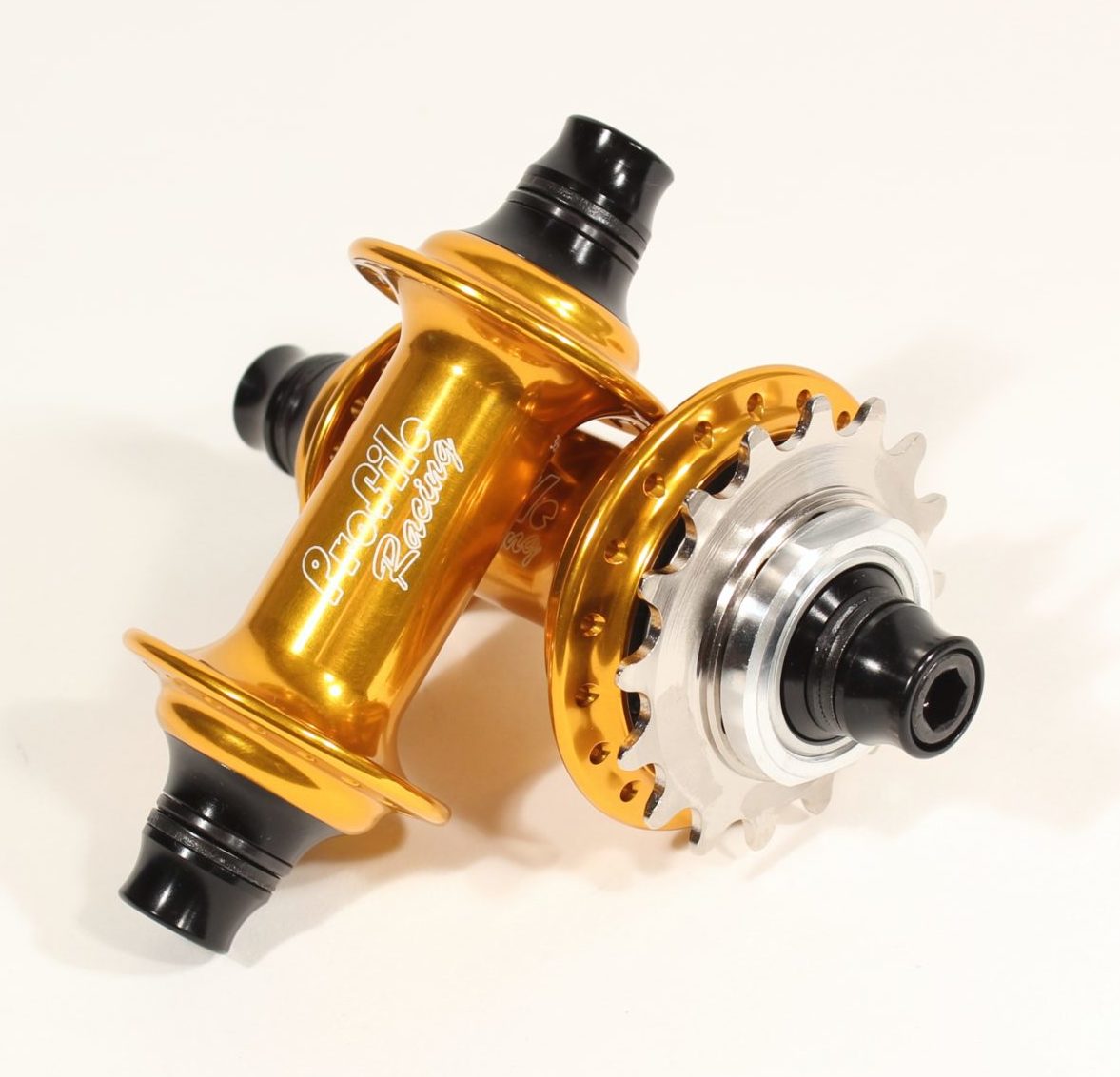

Colors: Red, Black, Blue, Polished, Gold , Green, Purple, Aqua, Matte Black, White

Elite Front Hub Weights:
Hub w/CrMo Axle Bolts: 8.1oz / 231g
Hub w/Ti Axle Bolts: 7.3oz / 207g

Elite Cassette Hub Weights:
Hub w/ 3/8 CrMo Bolts, 9t CrMo Driver: 15.6oz / 443g
Hub w/ 3/8 CrMo Bolts, 9t Ti Driver: 13.65oz / 388g

Hub w/ 3/8 Ti Bolts, 9t CrMo Driver: 14.75oz / 419g
Hub w/ 3/8 Ti Bolts, 9t Ti Driver: 12.80g / 364g

Hub w/ 3/8 CrMo bolts, Alu Driver, 16t CrMo Cog: 15.15oz / 430g
Hub w/ 3/8 CrMo bolts, Alu Driver, 16t Elite CrMo Cog: 14.80oz / 421g
Hub w/ 3/8 CrMo bolts, Alu Driver, 16t Alu Cog: 13.95oz / 396g

Hub w/ 3/8 Ti bolts, Alu Driver, 16t CrMo Cog: 14.3oz / 406g
Hub w/ 3/8 Ti bolts, Alu Driver, 16t Elite CrMo Cog: 14.0oz / 397g
Hub w/ 3/8 Ti bolts, Aluminum Driver, 16t Aluminum Cog: 13.05oz / 370g

Hub w/ 3/8 CrMo bolts, Ti Driver, 16t CrMo Cog: 16oz / 455g
Hub w/ 3/8 CrMo bolts, Ti Driver, 16t Elite CrMo Cog: 15.7oz / 446g
Hub w/ 3/8 CrMo bolts, Ti Driver, 16t Aluminum Cog: 14.8oz / 420g

Hub w/ 3/8 Ti bolts, Ti Driver, 16t CrMo Cog: 15.2oz / 431g
Hub w/ 3/8 Ti bolts, Ti Driver, 16t Elite CrMo Cog: 14.85oz / 422g
Hub w/ 3/8 Ti bolts, Ti Driver, 16t Aluminum Cog: 13.95oz / 396g

Hub w/ 14mm GDH Chromo w/ chromo 9t: 17.95oz/509g
Hub w/ 14mm GDH Chromo w/ titanium 9t: 16.6oz/471g

Profile Hubs are custom orders only. We only carry a few in stock. Email us for specific orders.
