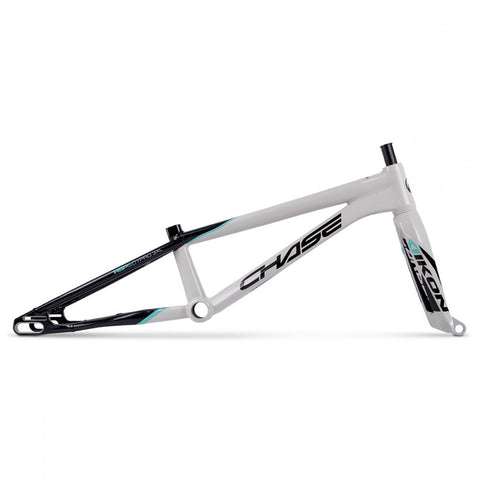

CHASE RSP6.0 FRAME & FORK KIT

Custom order - email sales@bikesupplies.ca to confirm availability

Note: Frame requires additional Parts, such as new Exclusive Disc Brake Adapter / Chain Tension kit, Rear Axle. Please read description for more info on needed items that are sold separately.

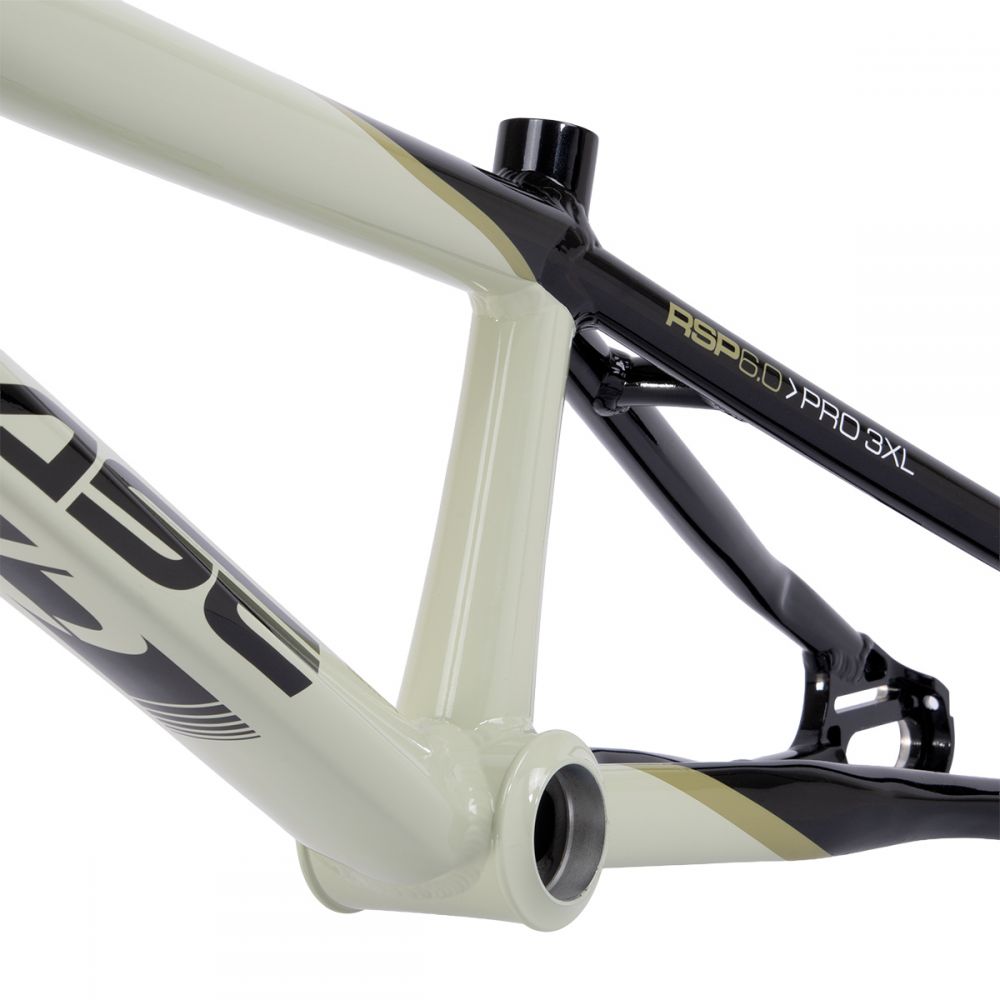

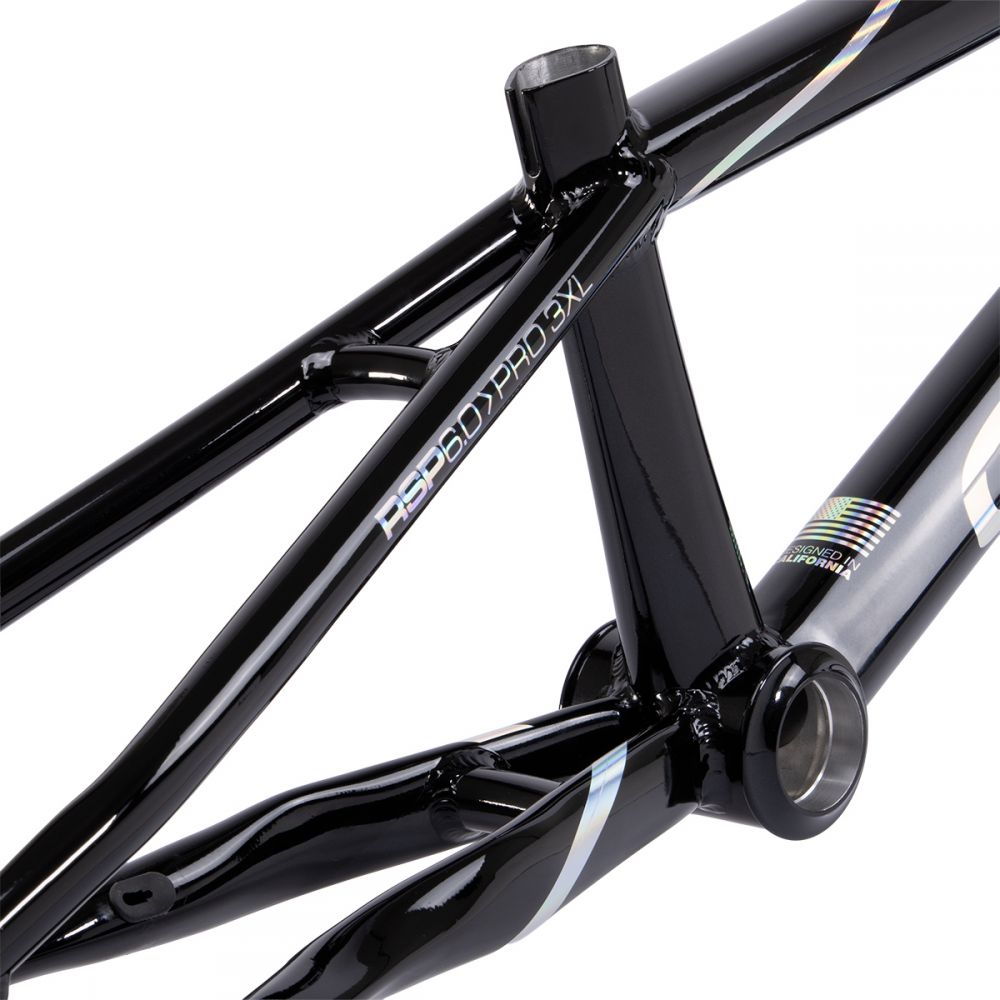

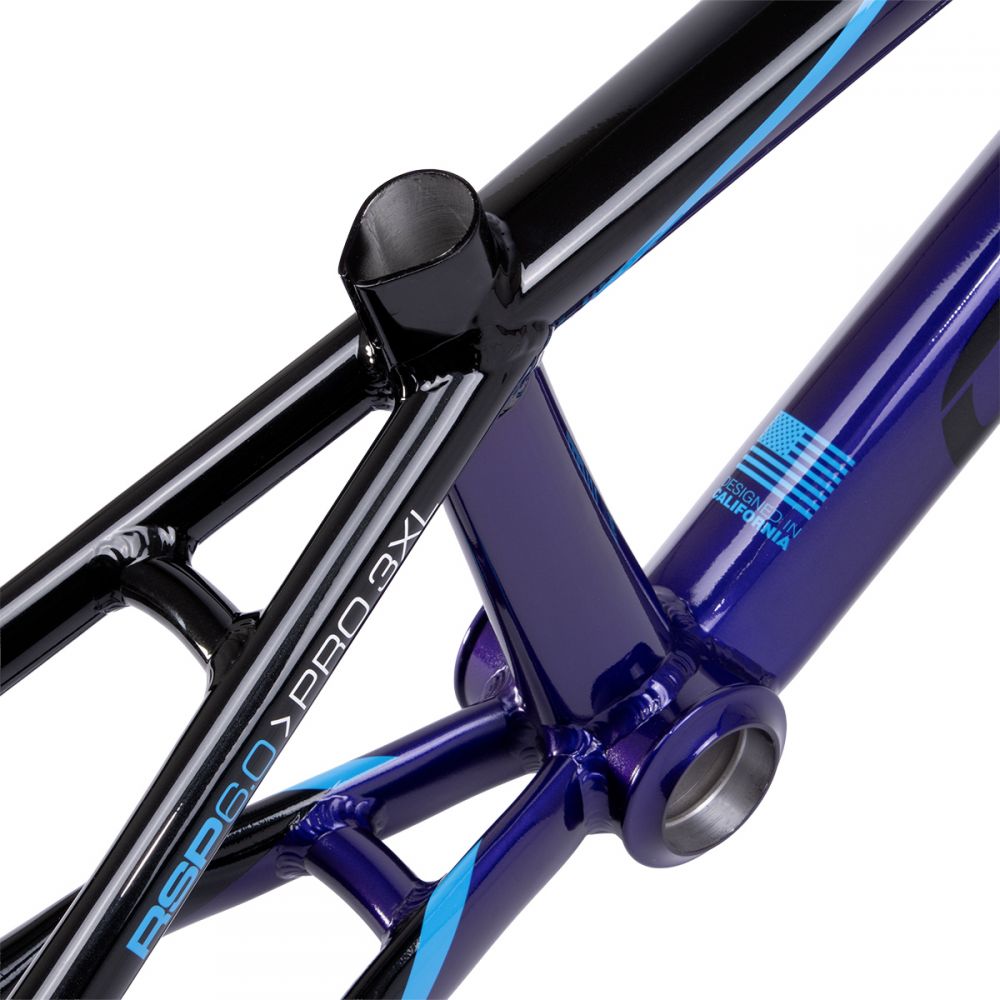

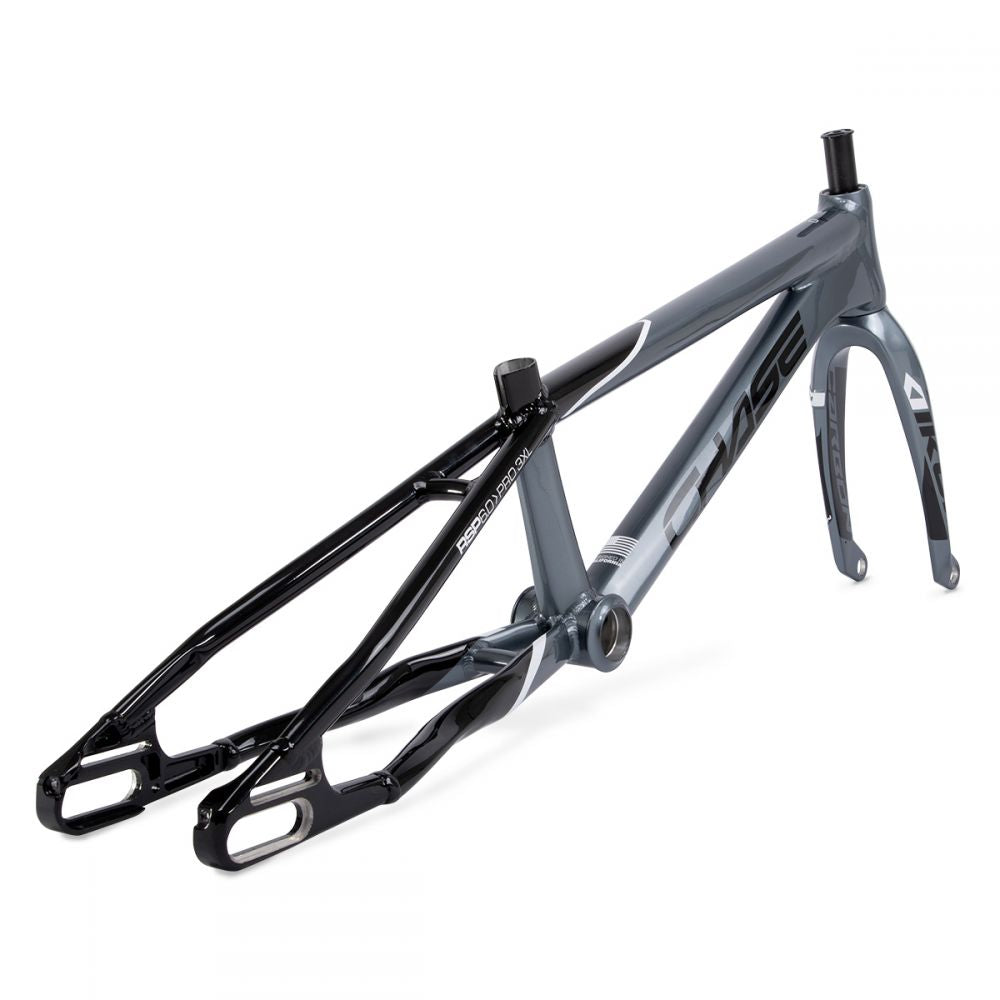

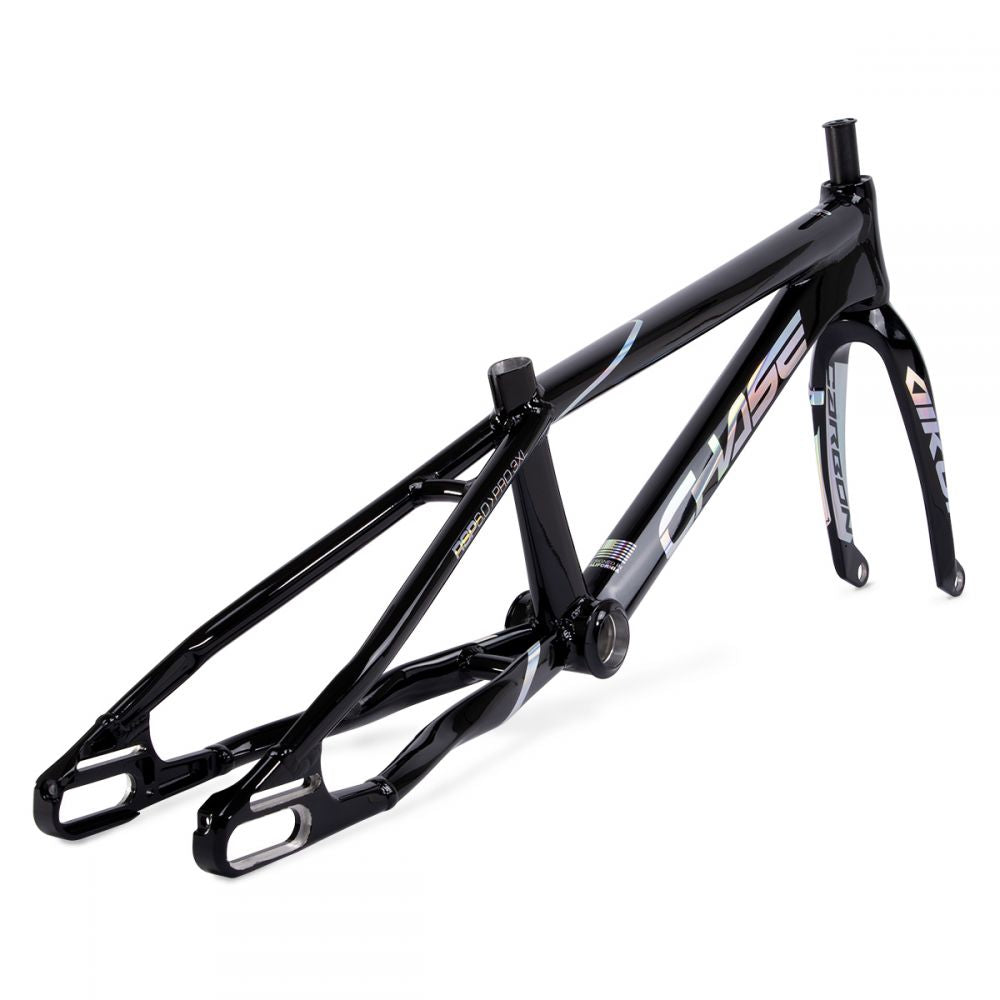

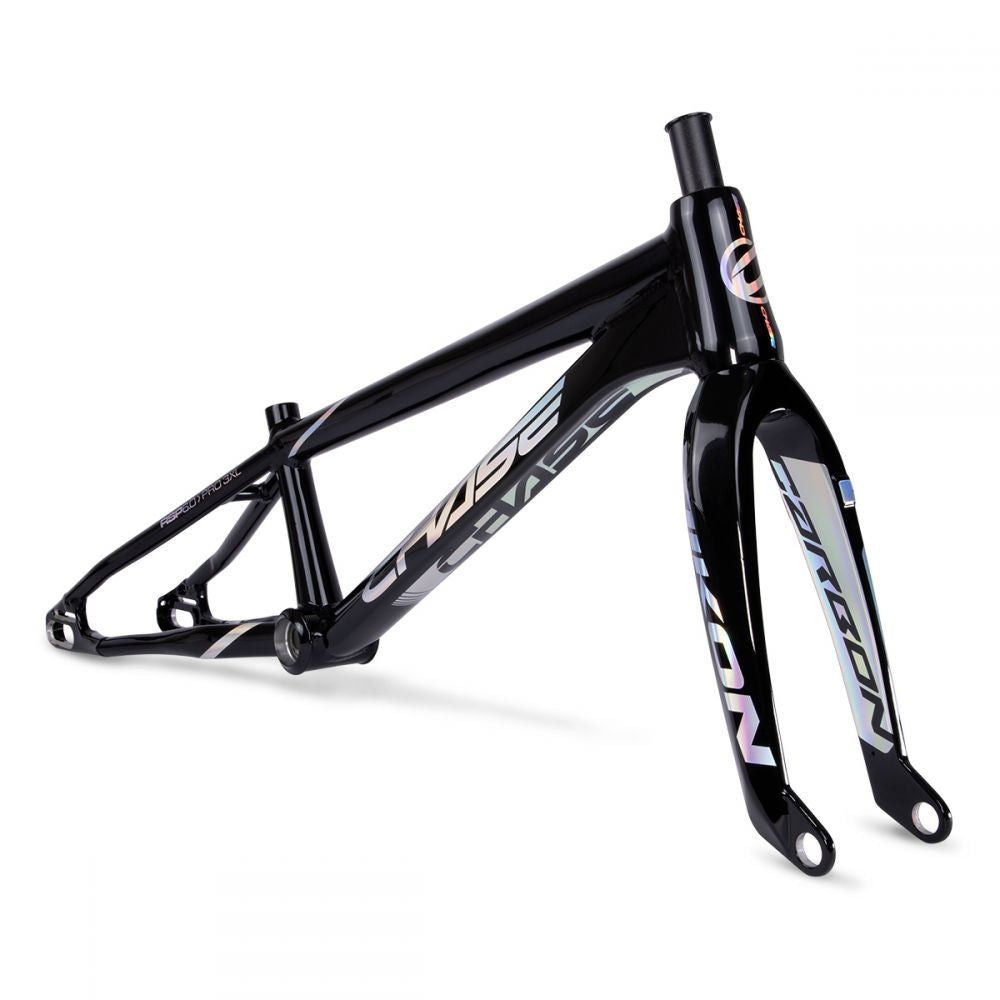

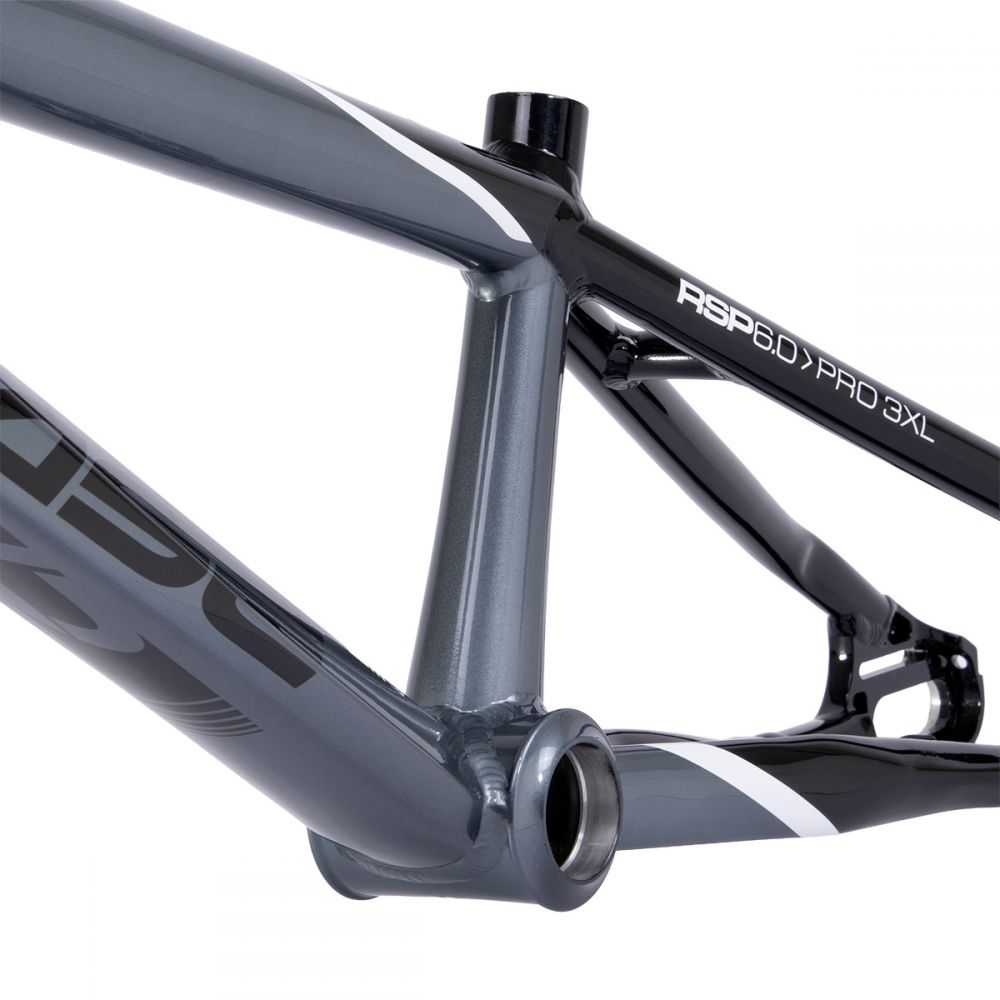

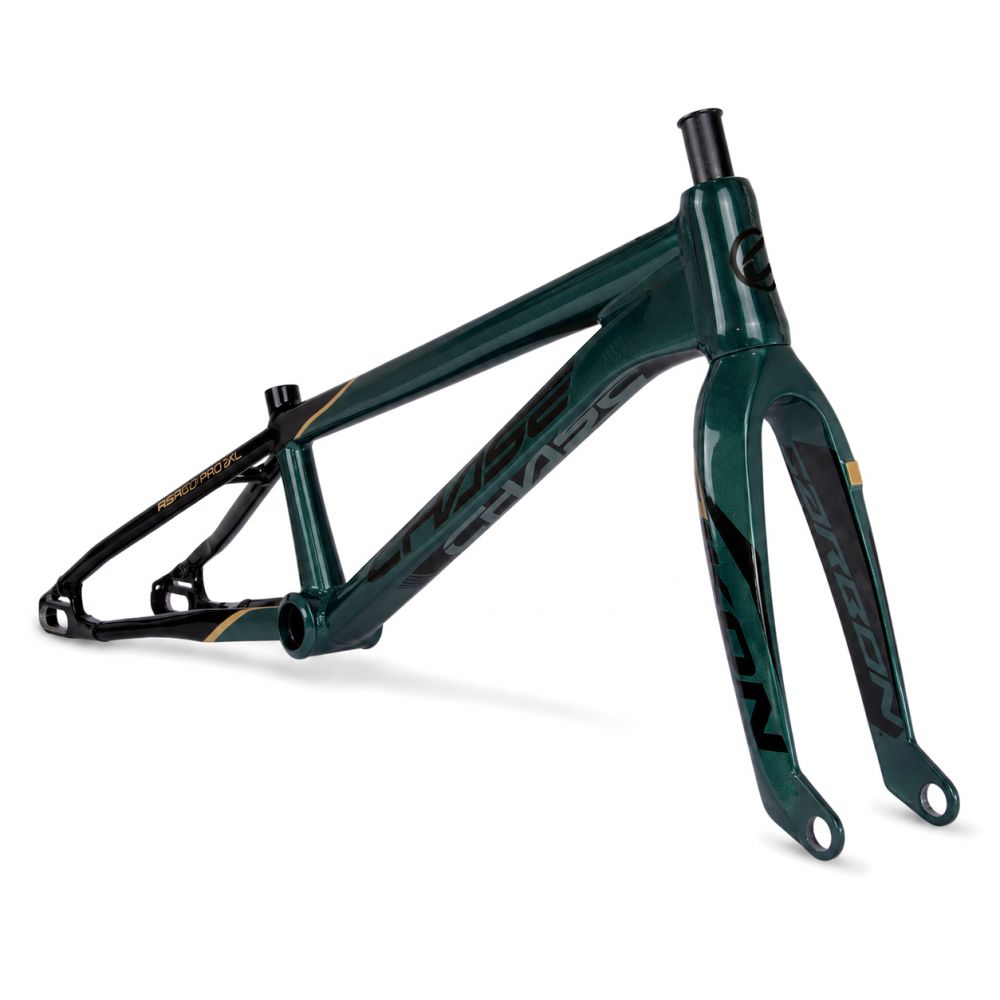

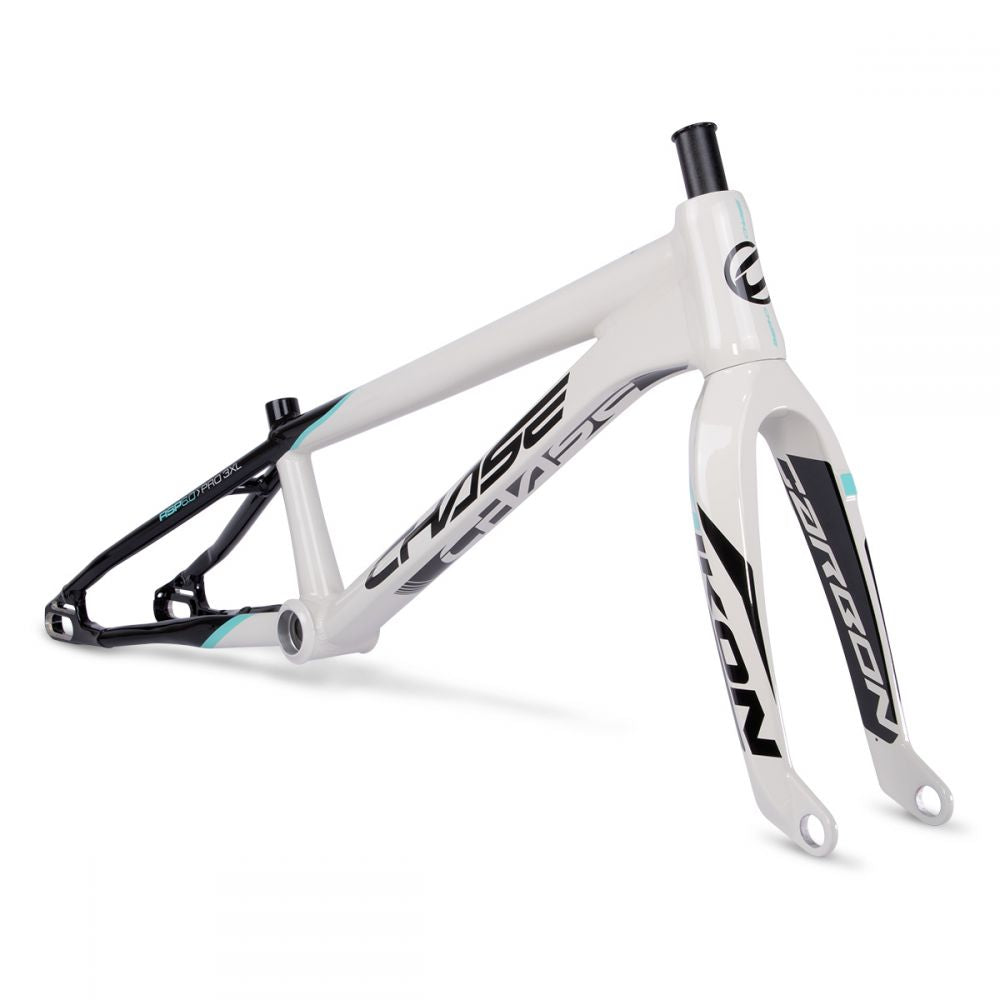

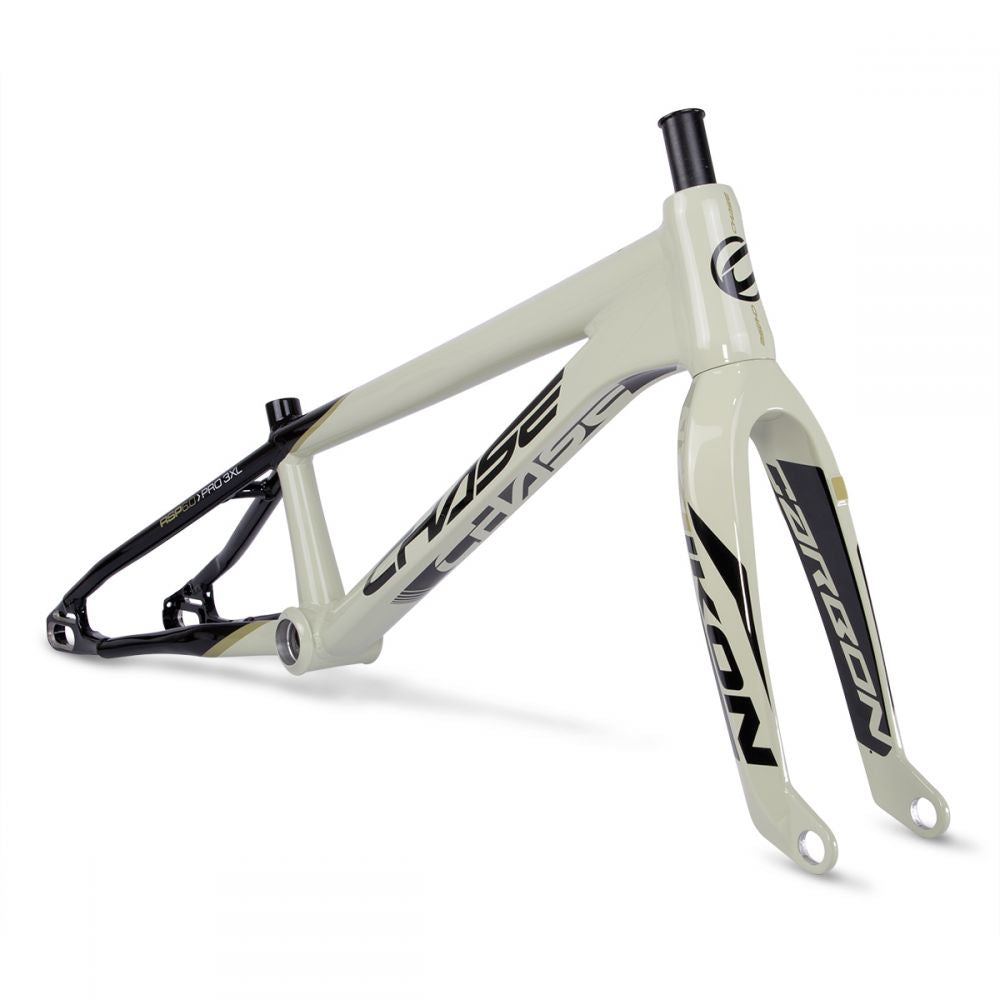

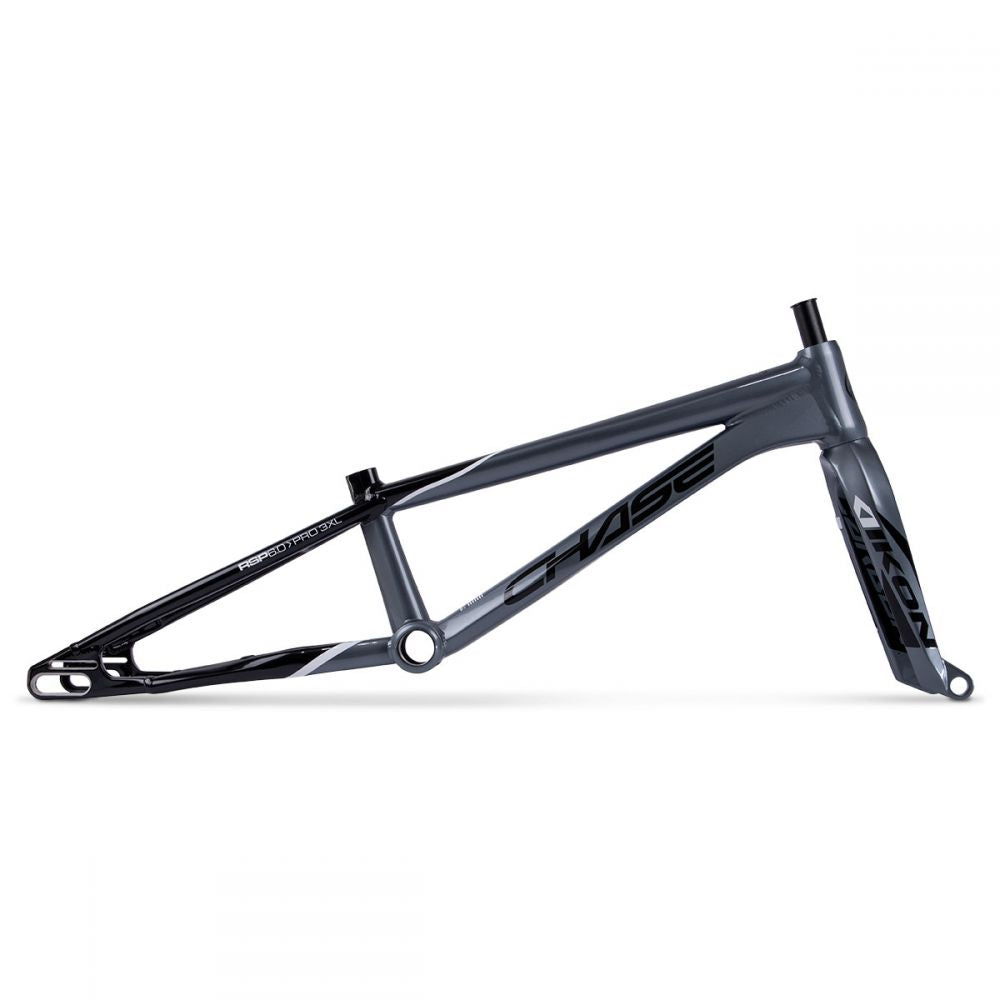

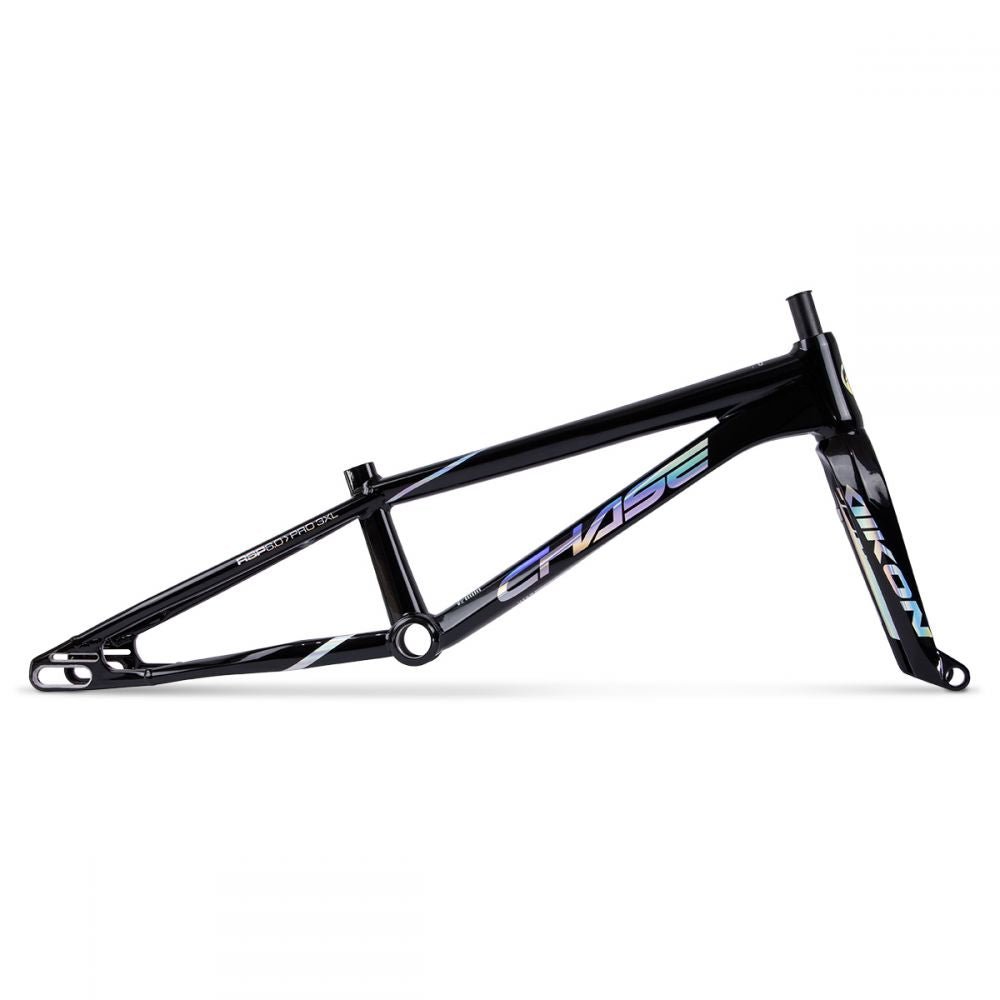

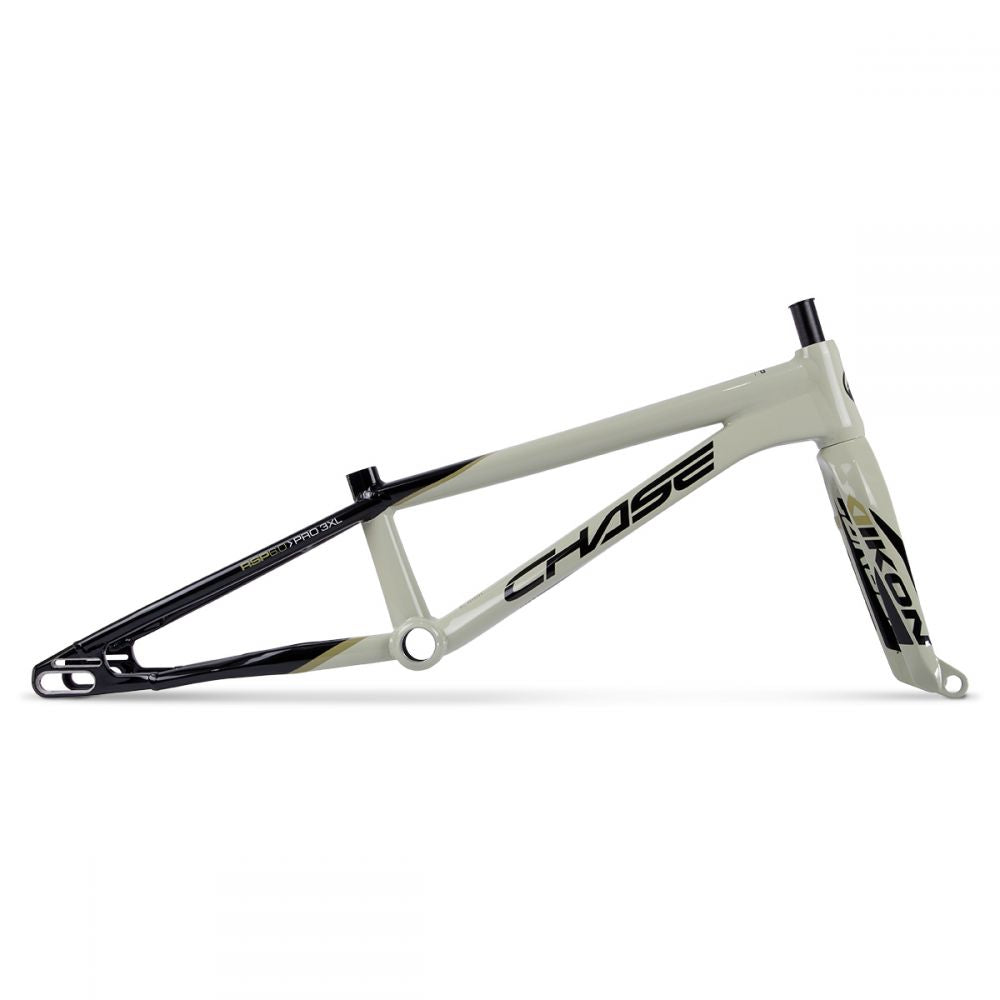

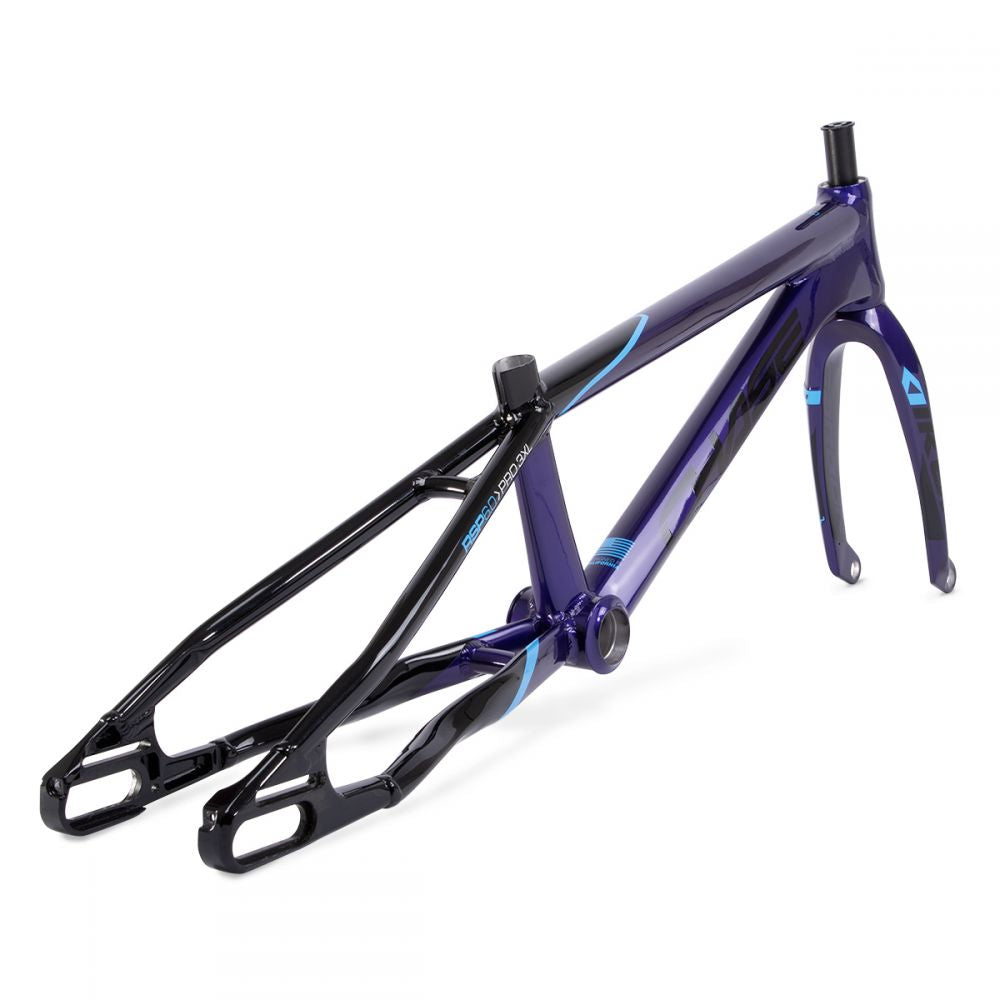

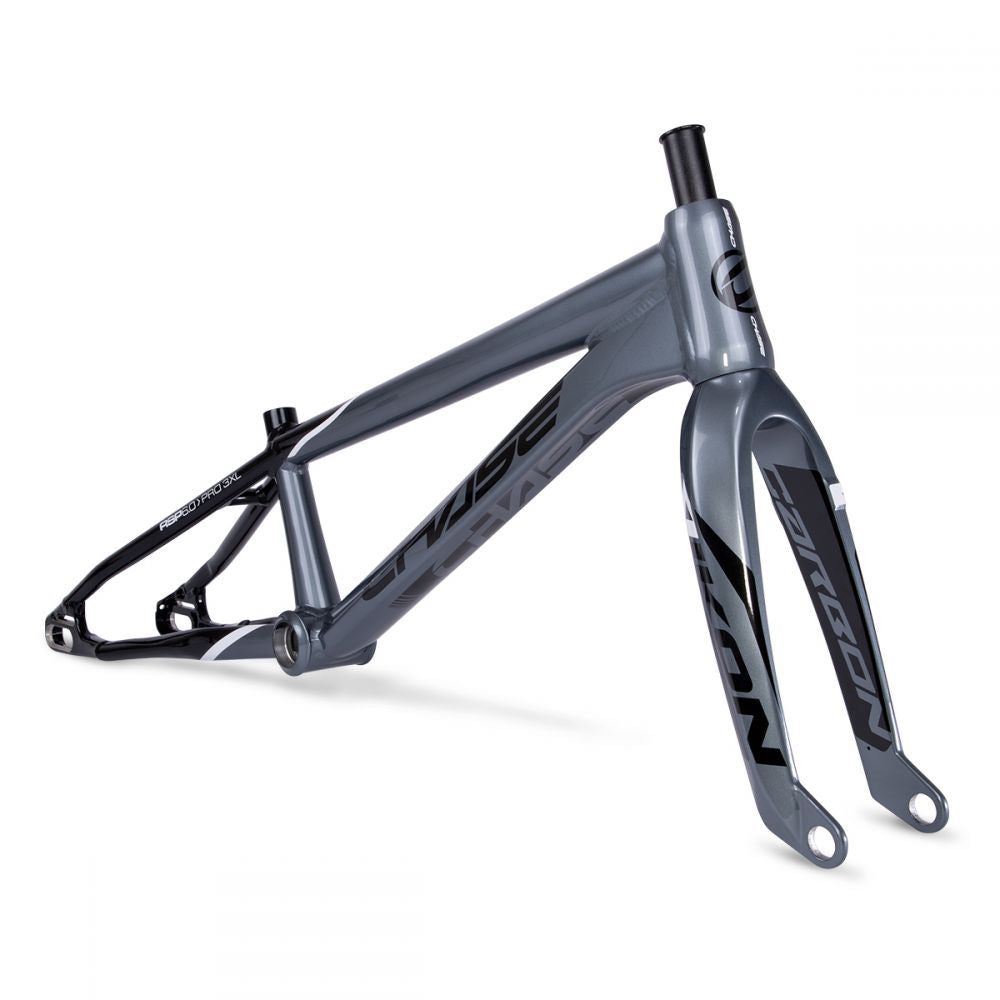

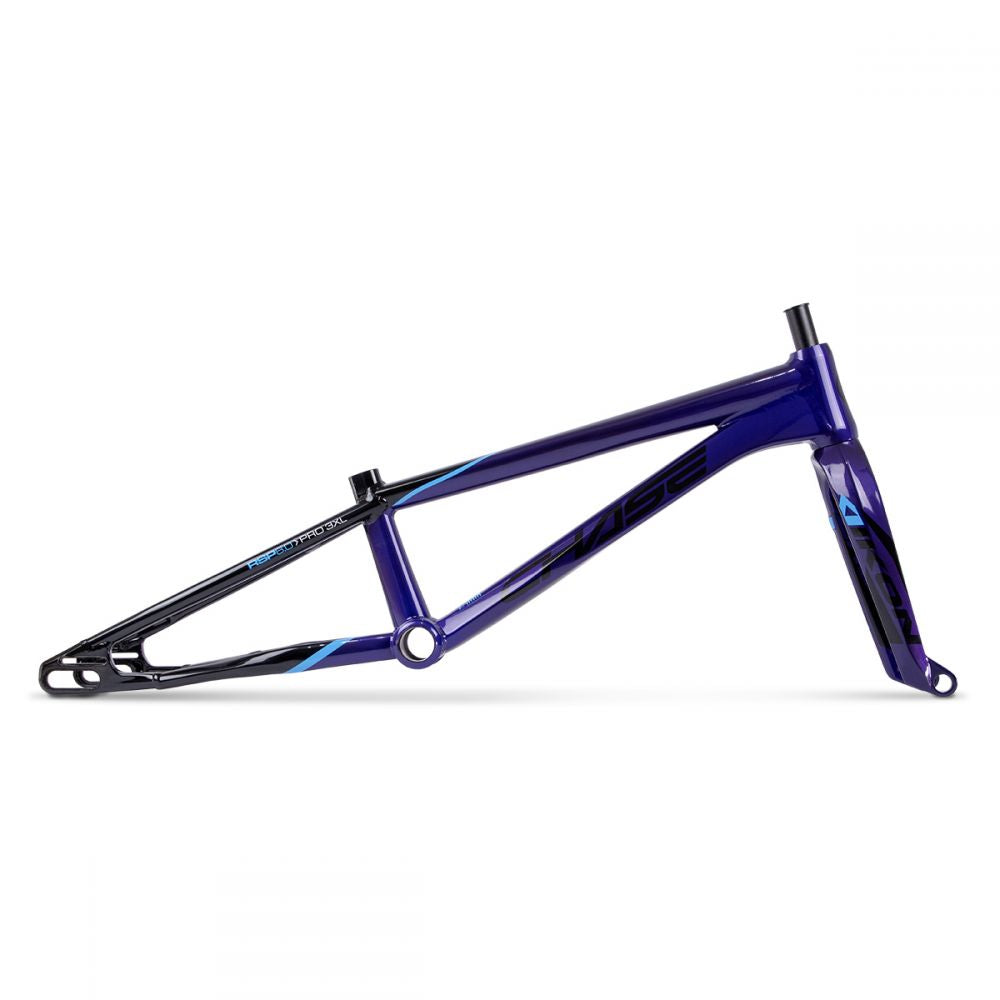

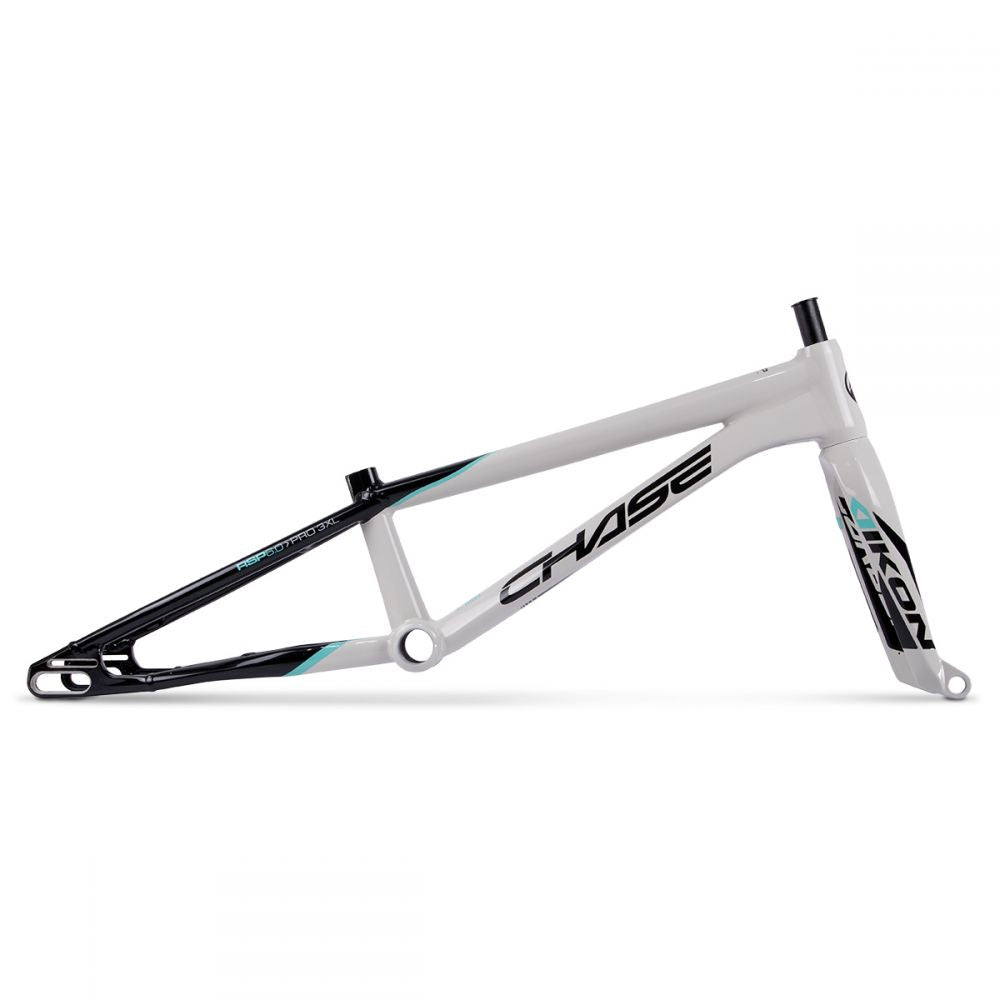

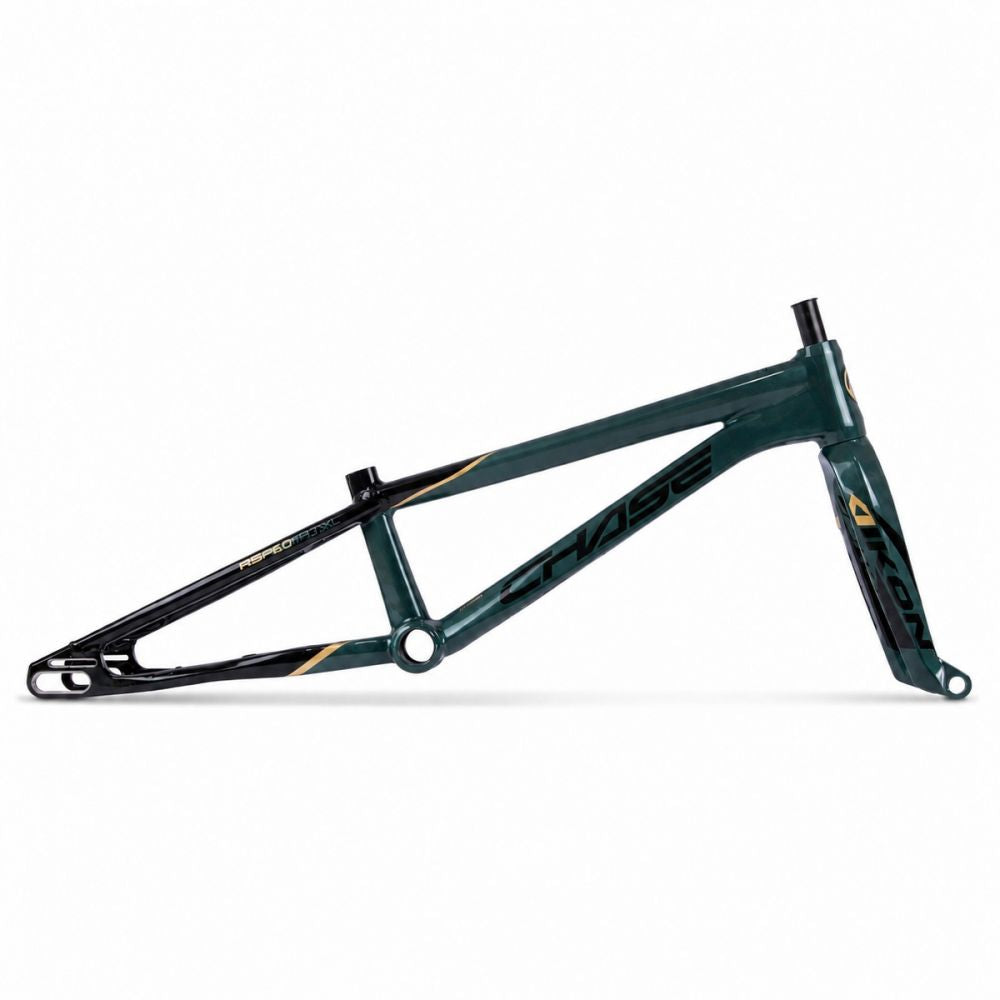

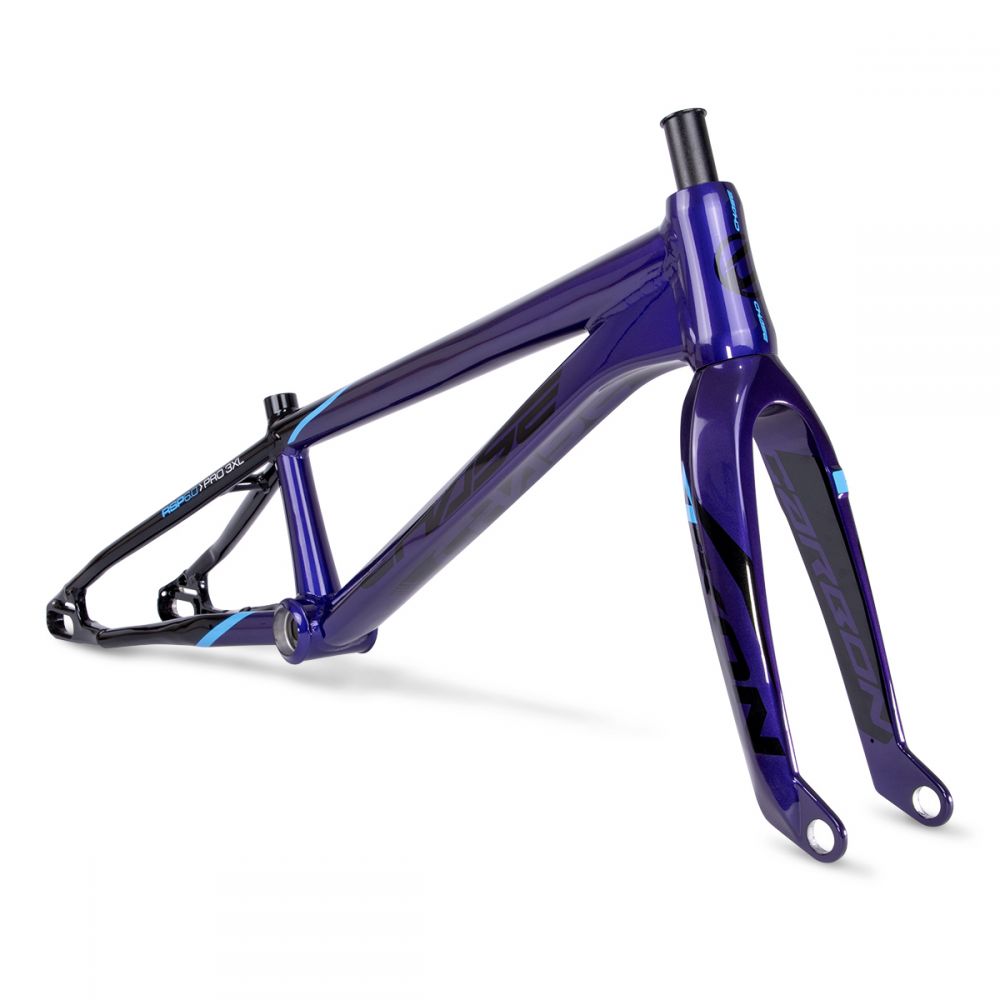

RSP 6.0 FRAME KIT + IKON CARBON FORK

The RSP 6.0 is the ultimate Alloy BMX race frame. This is the evolution of the Orignal RSP 1.0 and with each new Frame model, we have been able to push the boundaries of useful BMX technology and contiune to evolve the best Alloy BMX frame available in BMX racing today. The RSP frame has quite the impressive Championship pedigree with USA BMX, USA Cycling, UCI World, and Olympic Victories.

• New RSP 6.0 if offered in 12 sizes and 7 color options, including 2 new 20” Frame sizes of XXXXL & XXXXXL. New for the RSP 6.0, you can purchase a color matching IKON fork and Frame package.

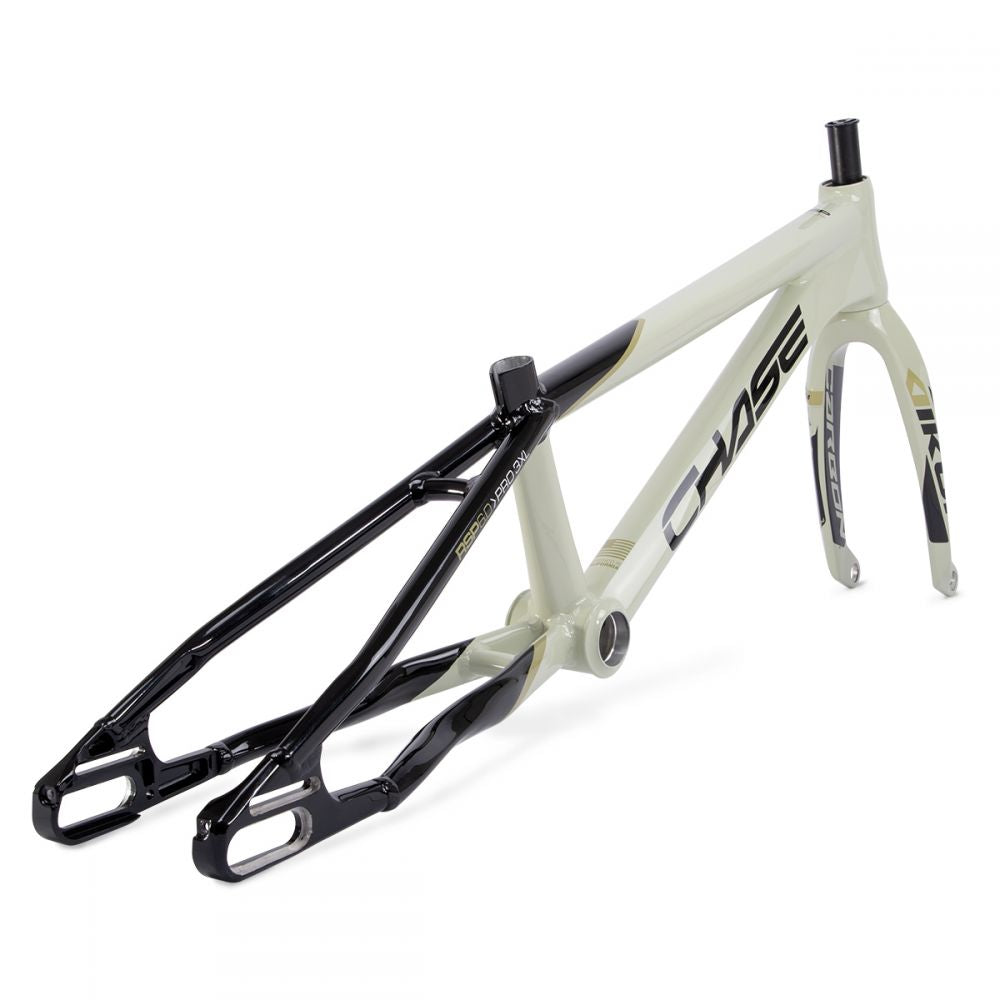

• New features include a revised drop out and chain tensioner system, A new top tube, & down tube and updated internal cable routing.
• The RSP 6.0 needs a disc brake caliber adapter purchased separately with the frame. For Disc Brake Adapter options, we offer a 6mm axle, 10mm, 15mm, or 20mm axle options for either Flat or Post Mount brake calipers.
• The RSP 6.0 Requires a 136mm Rear axle, sold separately, as well as an AERO Seat Post and Clamp.
• The RSP 6.0 Mini, Junior, Expert, & Expert XL use a 3/8" rear dropout. The Pro size and larger use a 20mm Rear Dropout.

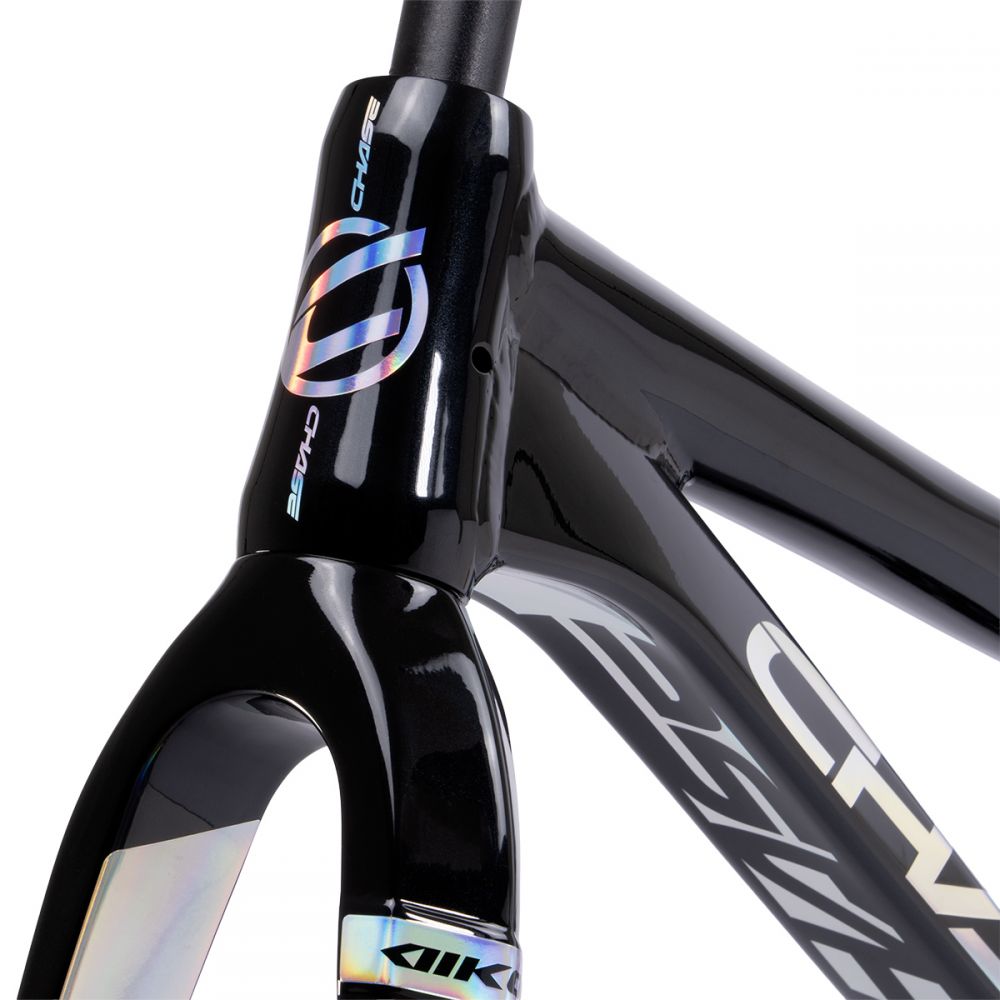

• The RSP 6.0 Mini, Junior, Expert have a 1-1/8" Head tube. Expert XL & larger frames use a tapered 1-1/8" - 1.5" head tube.

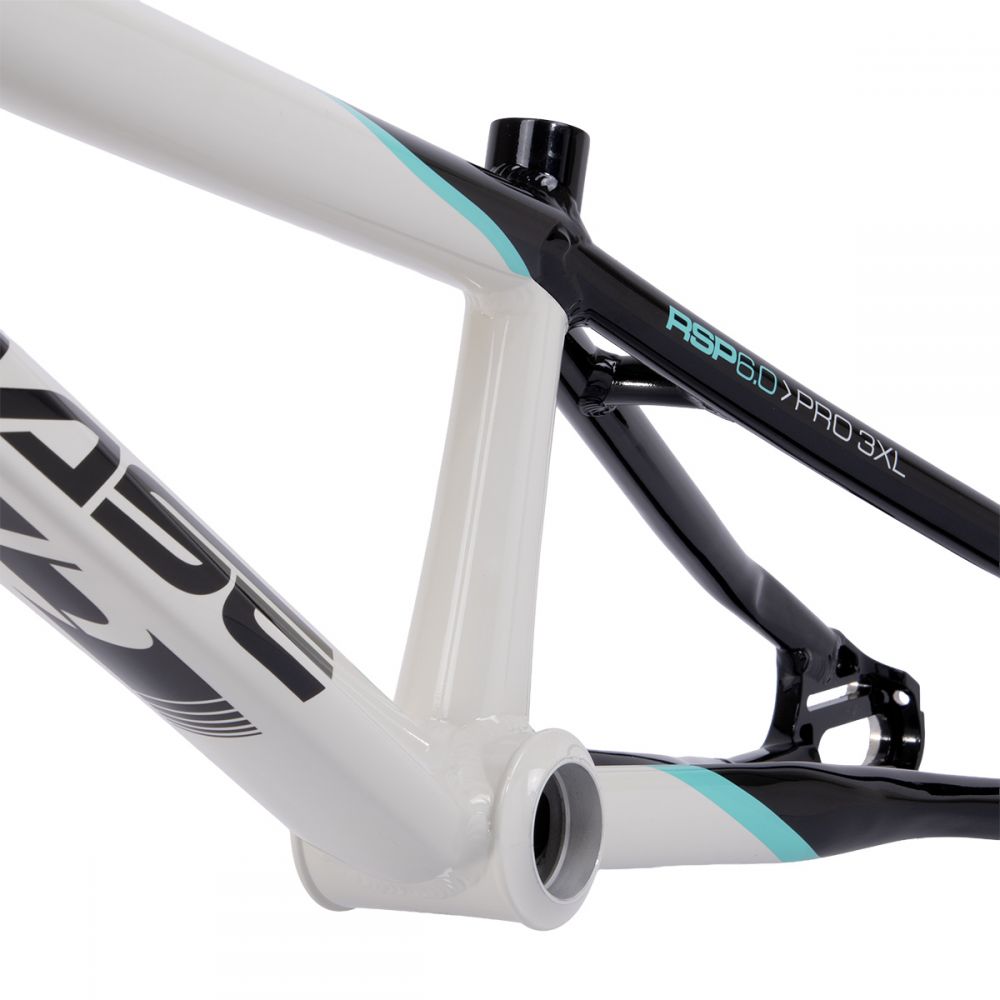

• The RSP 6.0 Mini, Junior, Expert have a Euro Threaded Bottom Bracket. Expert XL & larger frames use a Press Fit BB.
• The RSP 6.0 requires a aero Seat Post & Clamp sold separately
• Aero Post & Clamp Size - Mini thought Expert Frames - 25.4mm - Expert XL Frames & Above 27.2mm - Sold Separately
• Aero Seat Post extenders available in both sizes sold separately

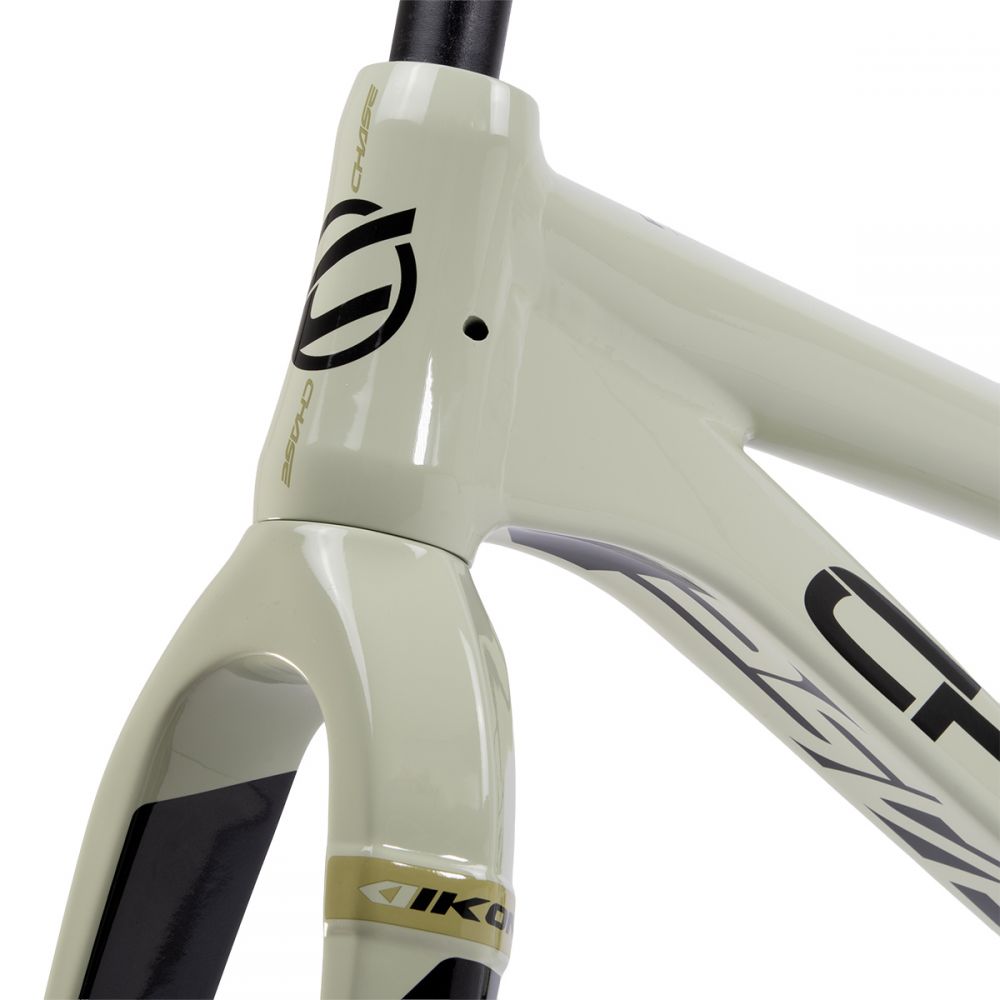

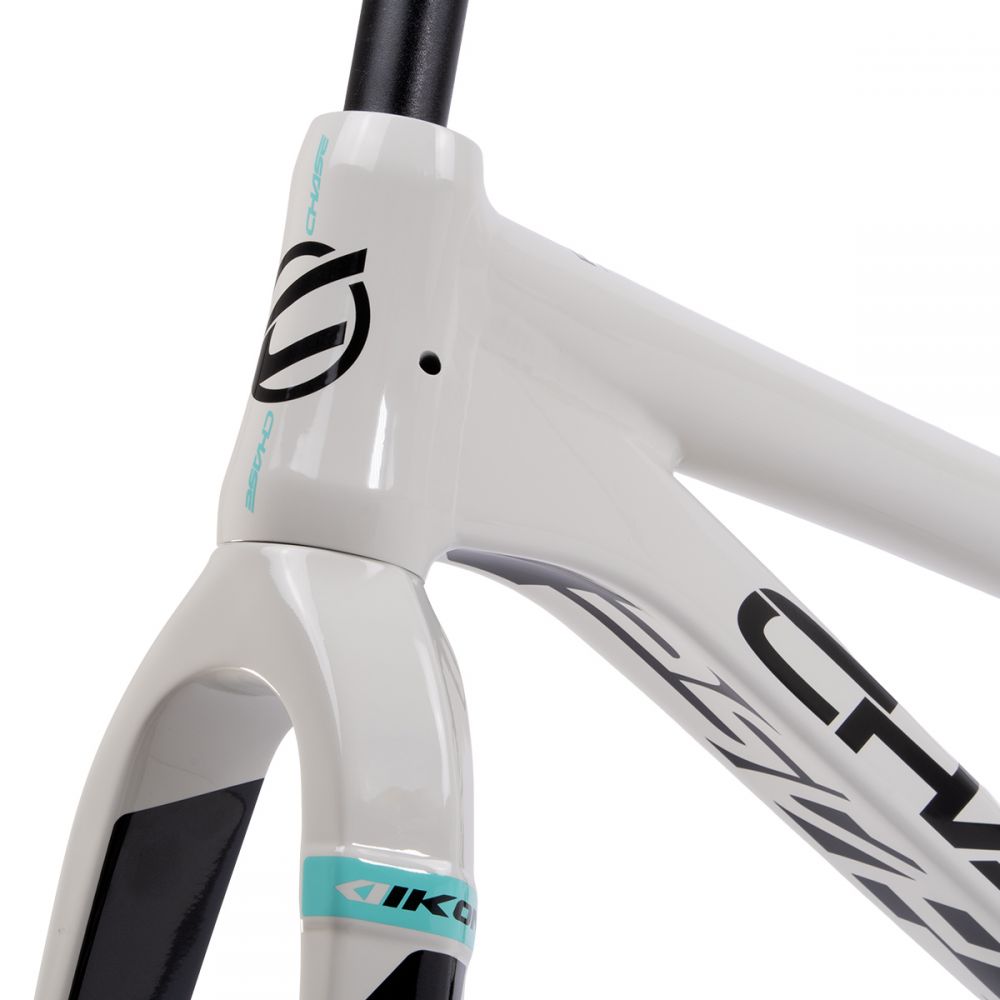

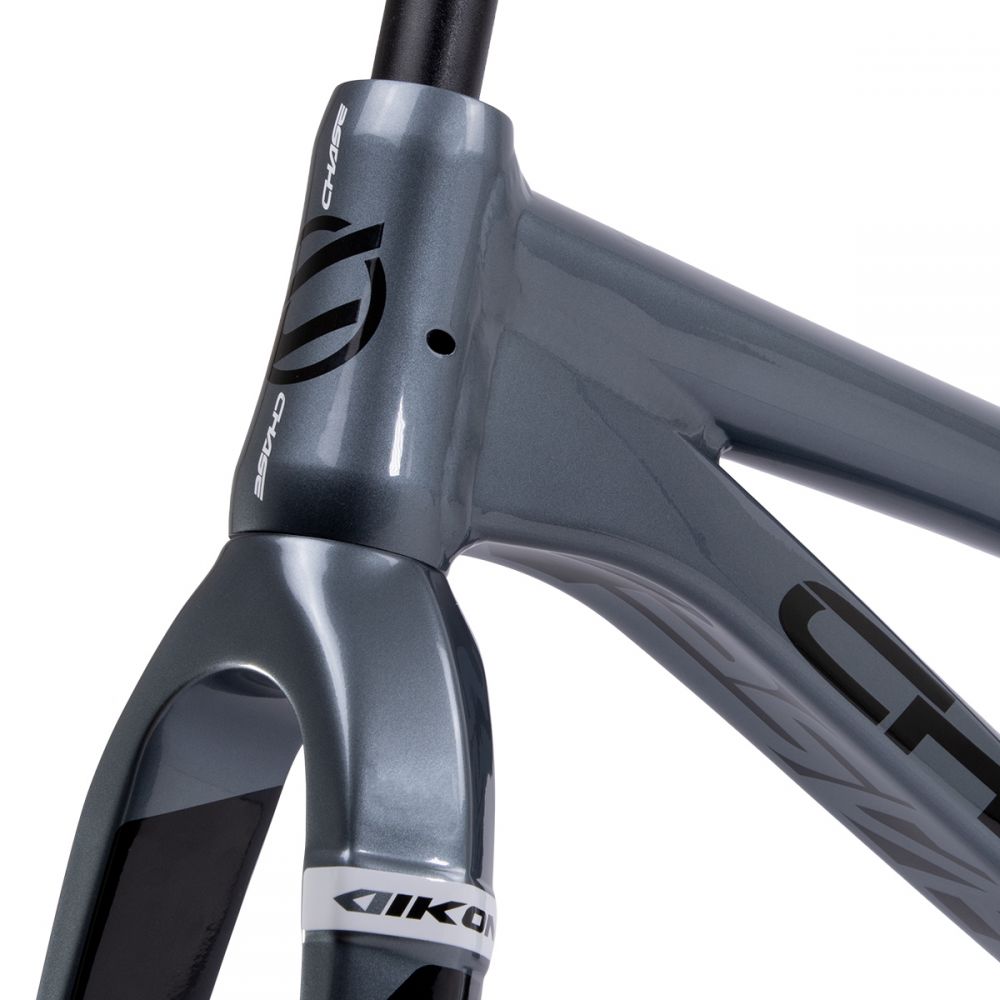

IKON CARBON TAPERED PRO 20MM Fork (Color-matched)

• 20" UD carbon monocoque fork
• 7075 aluminum tapered steerer tube: 1-1/8" top / 1.5" bottom – 6mm wall thickness
• Integrated crown race for 45-degree lower bearing – no additional crown race required
• CNC-machined 6061 aluminum dropouts
• Axle: 20mm
• Offset: 31mm
• Steerer tube length: 173mm
• Axle-to-crown height: 305mm
• Weight: 626g (excluding top cap)
• Sold with top cap

COMPATIBILITY:

• Tapered integrated headset: 1-1/8" (top) – 1.5" (bottom)
• Press Fit BB86 bottom bracket

NOTE:

• Sold without headset
• Sold without Seat Post Clamp
• Sold without Drop out disc brake adapter or Rear hub tapered cone washer and bolt.

— GEOMETRY —



SIZE	TT	CS min	LR	FORK INFO	AF	SA	BBD	HT	HT TYPE	SPL	SP	BB TYPE	DROPOUT	TIRES MAXI	BRAKE	WEIGHT
MINI	18.00″ 457.2mm	12.76″ 324mm	1.5″ 38.1mm	12.1″ 307mm	73.0°	70°	0.4" 10mm	4.5" 115mm	Integrated IS 42/42	8.3″ 209.55mm	Aero 25.4mm	Euro BSA 68mm	Enclosed 3/8" / 10mm	20"x1-1/8"	Mount or Flat 120 / 140mm	-
JUNIOR	19.00″ 482.6mm	13.00″ 330.2mm	1.5″ 38.1mm	12.1″ 307mm	73.0°	70°	0.4" 10mm	4.5" 115mm	Integrated IS 42/42	8.5″ 215.9mm	Aero 25.4mm	Euro BSA 68mm	Enclosed 3/8" / 10mm	20"x1-1/8"	Mount or Flat 120 / 140mm	-
EXPERT	19.50″ 495.3mm	13.25″ 336.55mm	1.5″ 38.1mm	12.1″ 307mm	73.0°	70°	0.4" 10mm	4.7" 120mm	Integrated IS 42/42	8.5″ 215.9mm	Aero 25.4mm	Euro BSA 68mm	Enclosed 3/8" / 10mm	20"x1-3/8"	Mount or Flat 120 / 140mm	-
EXPERT XL	20.00″ 508mm	13.50″ 342.9mm	1.5″ 38.1mm	12.1″ 307mm	74.0°	72°	0.4" 10mm	4.7" 120mm	Integrated IS 42/52	8.5″ 215.9mm	Aero 27.2mm	Press Fit BB86	Enclosed 3/8" / 10mm	20"x1.6"	Mount or Flat 120 / 140mm	-
PRO	20.50″ 520.7mm	14.25″ 361.95mm	1.5″ 38.1mm	12.1″ 307mm	74.0°	72°	0.4" 10mm	4.7" 120mm	Integrated IS 42/52	8.7″ 220.98mm	Aero 27.2mm	Press Fit BB86	Enclosed 20mm	20"x2.10"	Mount or Flat 120 / 140mm	-
PRO XL	21.00″ 533.4mm	14.30″ 361.95mm	1.5″ 38.1mm	12.1″ 307mm	74.0°	72°	0.4" 10mm	4.7" 120mm	Integrated IS 42/52	8.7″ 220.98mm	Aero 27.2mm	Press Fit BB86	Enclosed 20mm	20"x2.10"	Mount or Flat 120 / 140mm	-
PRO XXL	21.50″ 546.1mm	14.50″ 368.5mm	1.5″ 38.1mm	12.1″ 307mm	74.0°	72°	0.4" 10mm	4.7" 120mm	Integrated IS 42/52	8.7″ 220.98mm	Aero 27.2mm	Press Fit BB86	Enclosed 20mm	20"x2.10"	Mount or Flat 120 / 140mm	-
PRO XXXL	22.00″ 558.8mm	15.00″ 381mm	1.5″ 38.1mm	12.1″ 307mm	74.0°	72°	0.4" 10mm	4.7" 120mm	Integrated IS 42/52	8.7″ 220.98mm	Aero 27.2mm	Press Fit BB86	Enclosed 20mm	20"x2.10"	Mount or Flat 120 / 140mm	-
PRO XXXXL	22.50″ 571.5mm	15.00″ 381mm	1.5″ 38.1mm	12.1″ 307mm	74.0°	72°	0.4" 10mm	4.7" 120mm	Integrated IS 42/52	8.7″ 220.98mm	Aero 27.2mm	Press Fit BB86	Enclosed 20mm	20"x2.10"	Mount or Flat 120 / 140mm	-
PRO XXXXXL	23.00″ 584.2mm	15.00″ 381mm	1.5″ 38.1mm	12.1″ 307mm	74.0°	72°	0.4" 10mm	4.7" 120mm	Integrated IS 42/52	8.7″ 220.98mm	Aero 27.2mm	Press Fit BB86	Enclosed 20mm	20"x2.10"	Mount or Flat 120 / 140mm	-
PRO CRUISER 24"	21.50″ 546.1mm	14.7″ 374.58mm	1.5″ 38.1mm	14.0″ 355mm	74.0°	72°	0.0" 0mm	4.7" 120mm	Integrated IS 42/52	10.4″ 264.1mm	Aero 27.2mm	Press Fit BB86	Enclosed 20mm	24"x2.10"	Mount or Flat 120 / 140mm	-
PRO XL CRUISER 24"	22.00″ 558.8mm	14.7″ 374.58mm	1.5″ 38.1mm	14.0″ 355mm	74.0°	72°	0.0" 0mm	4.7" 120mm	Integrated IS 42/52	10.4″ 264.1mm	Aero 27.2mm	Press Fit BB86	Enclosed 20mm	24"x2.10"	Mount or Flat 120 / 140mm	-

— New ACT 2.0 and RSP 6.0 needed additional parts for Frame —

CHASE RSP6.0 - ACT2.0 POST MOUNT DISC CALIBER ADAPTERS

CHASE RSP6.0 - ACT2.0 FLAT MOUNT DISC CALIBER ADAPTERS

CHASE REAR HUB TAPERED CONE WASHER AND BOLT - 10MM / 3/8 AXLE
