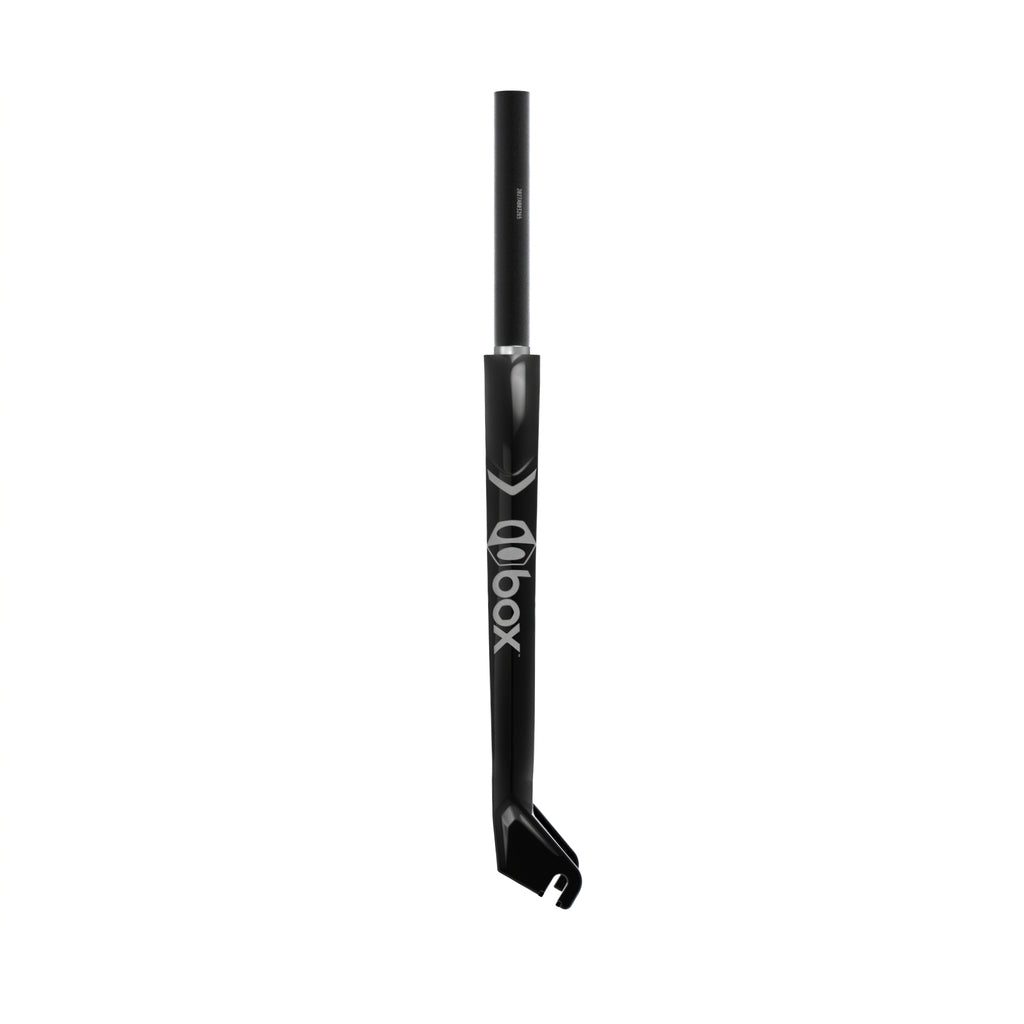

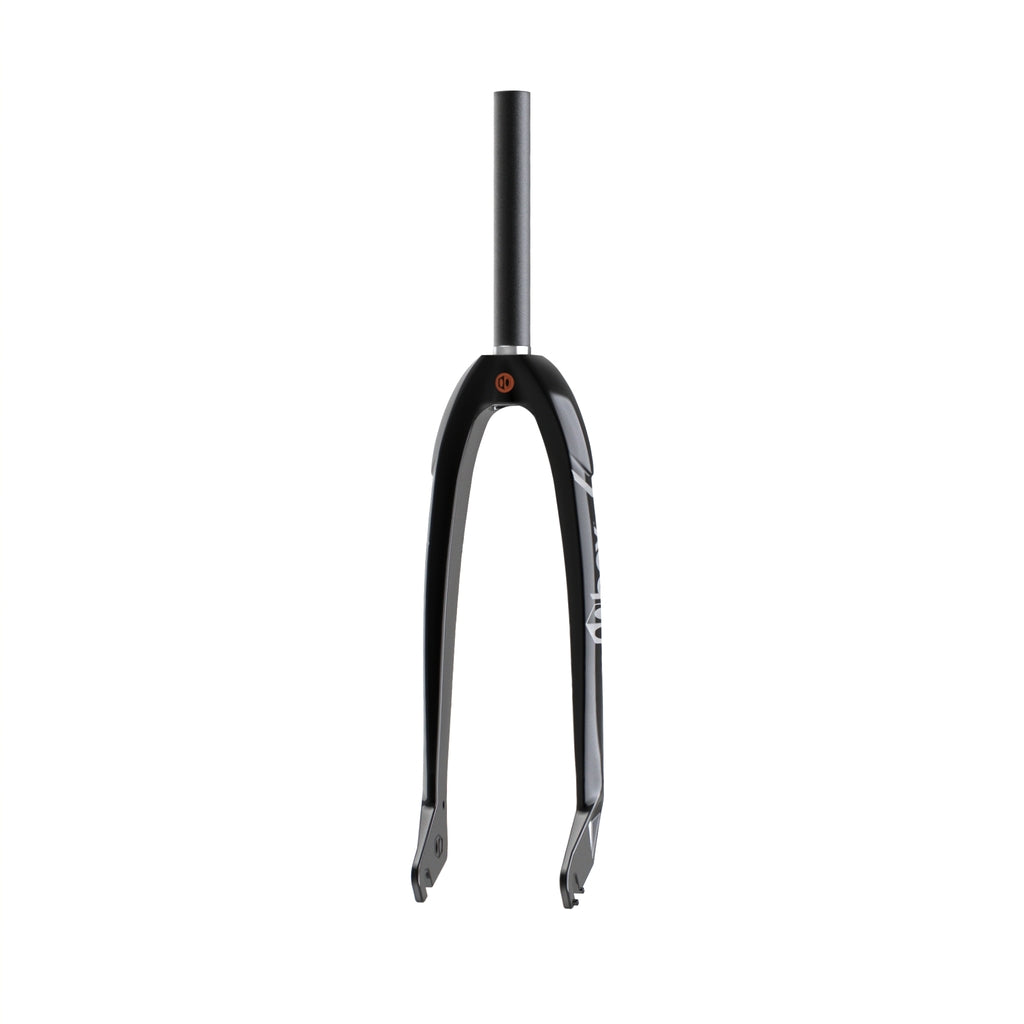

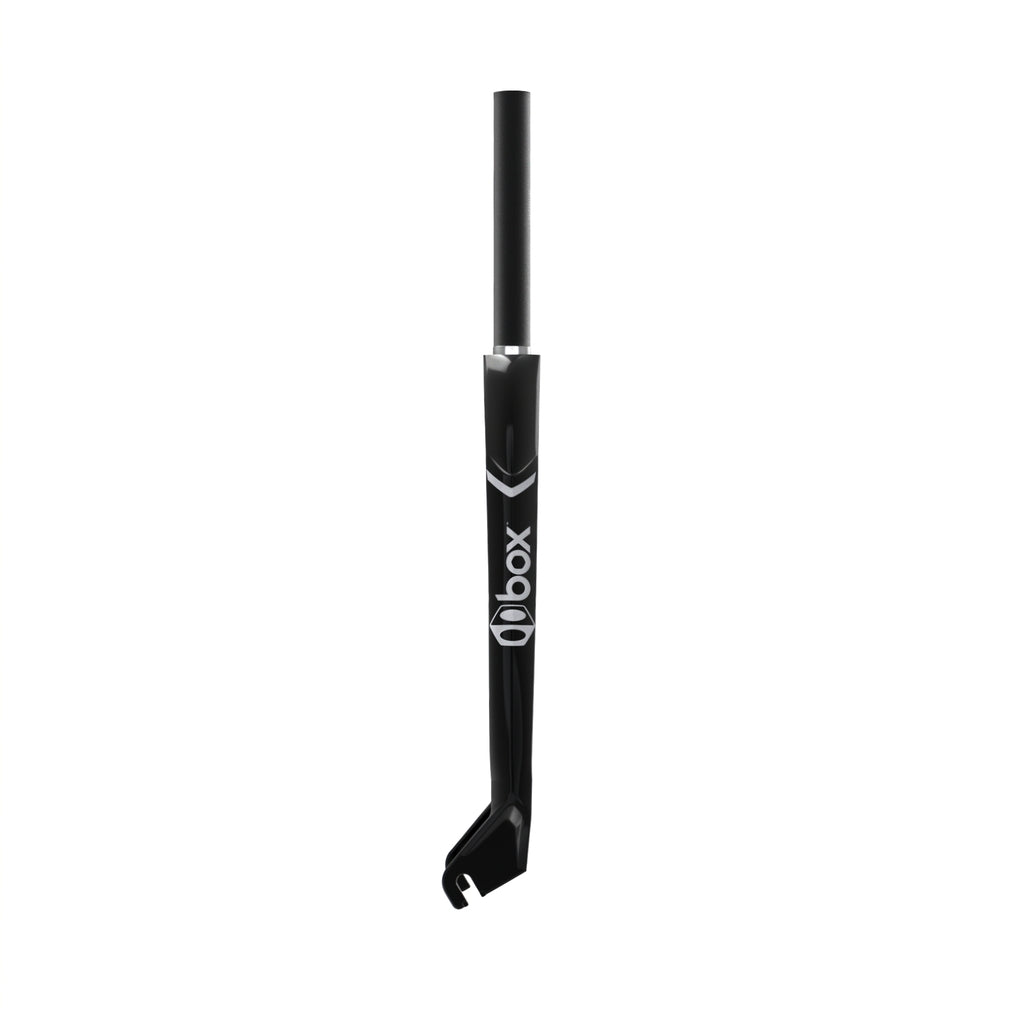

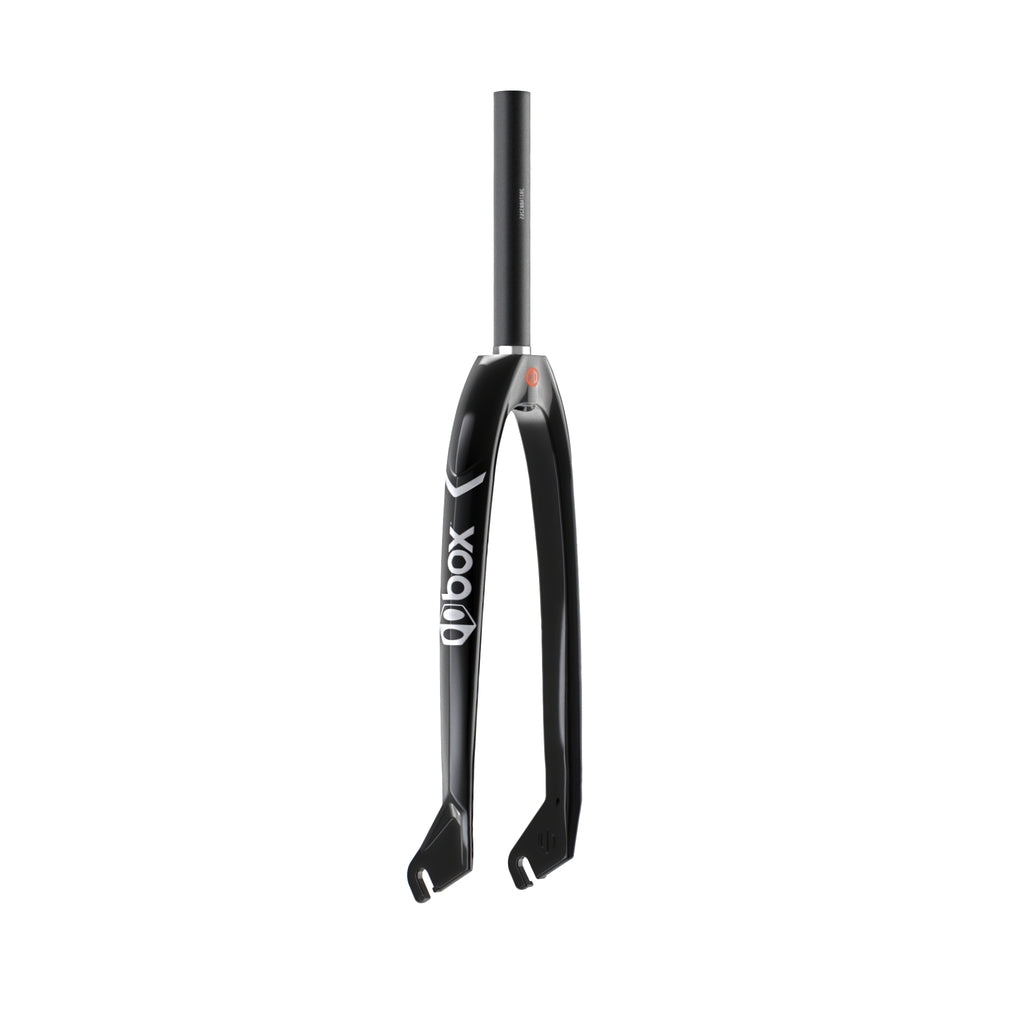

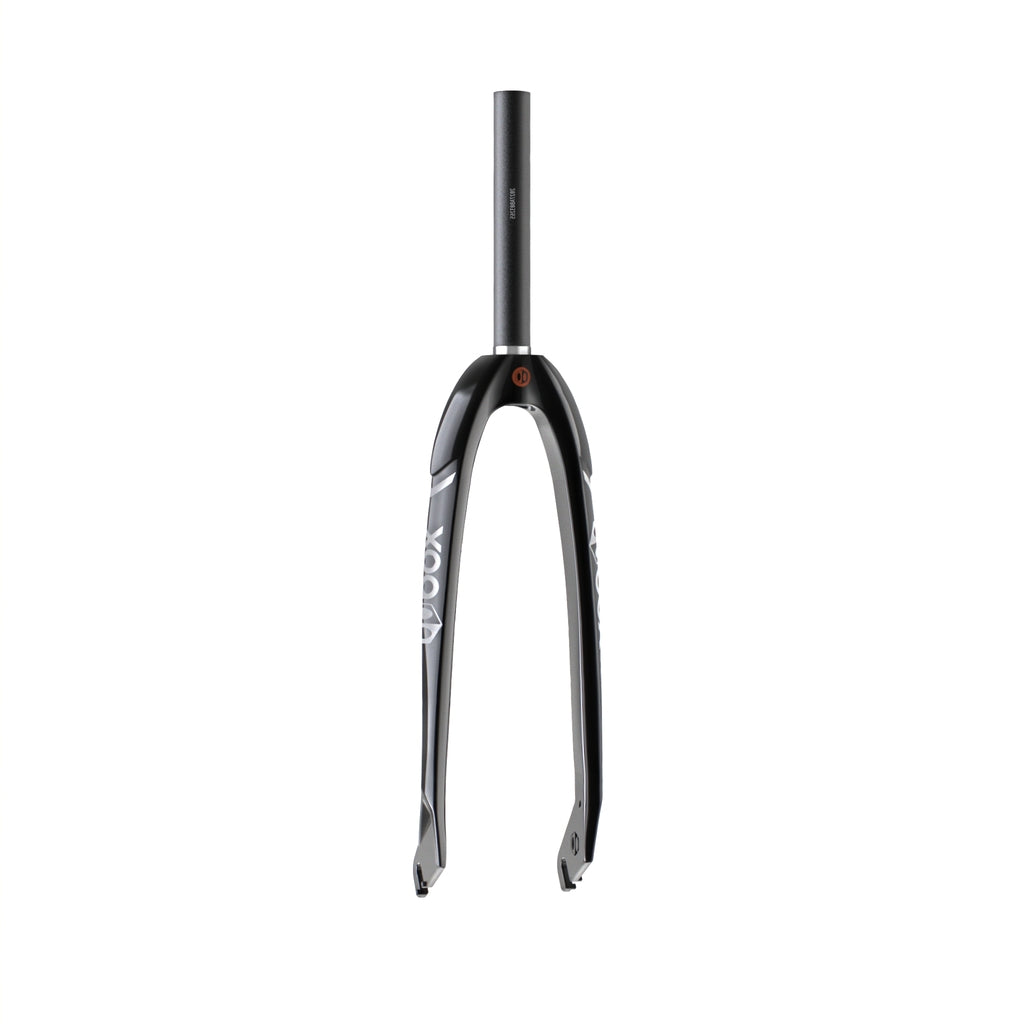

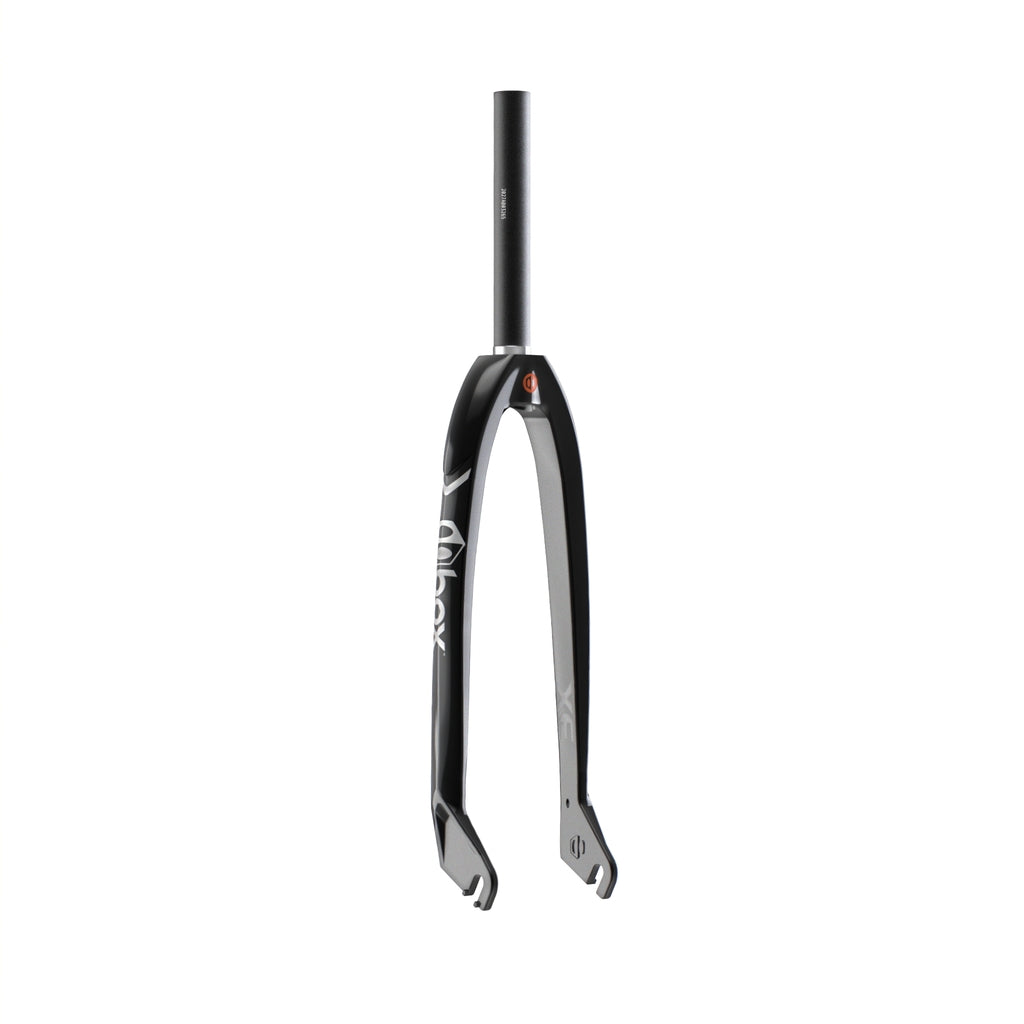

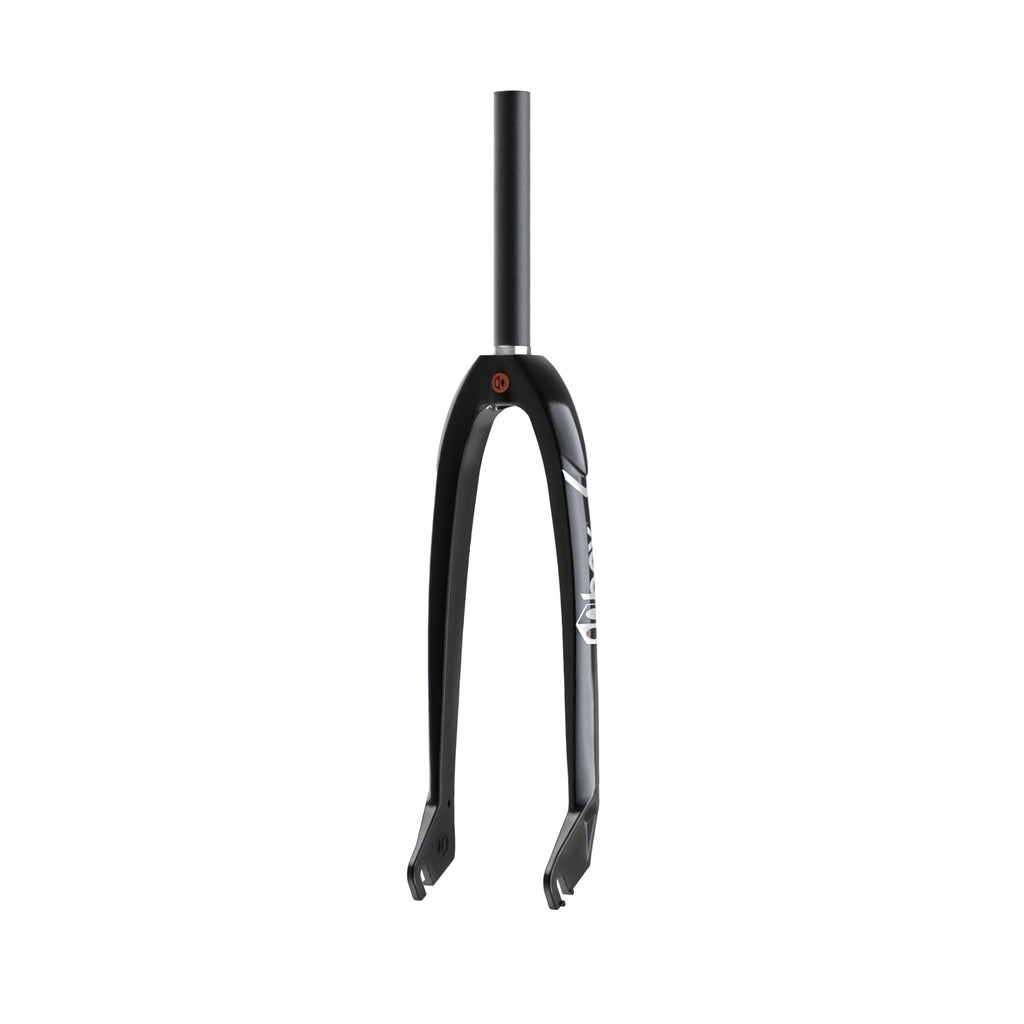

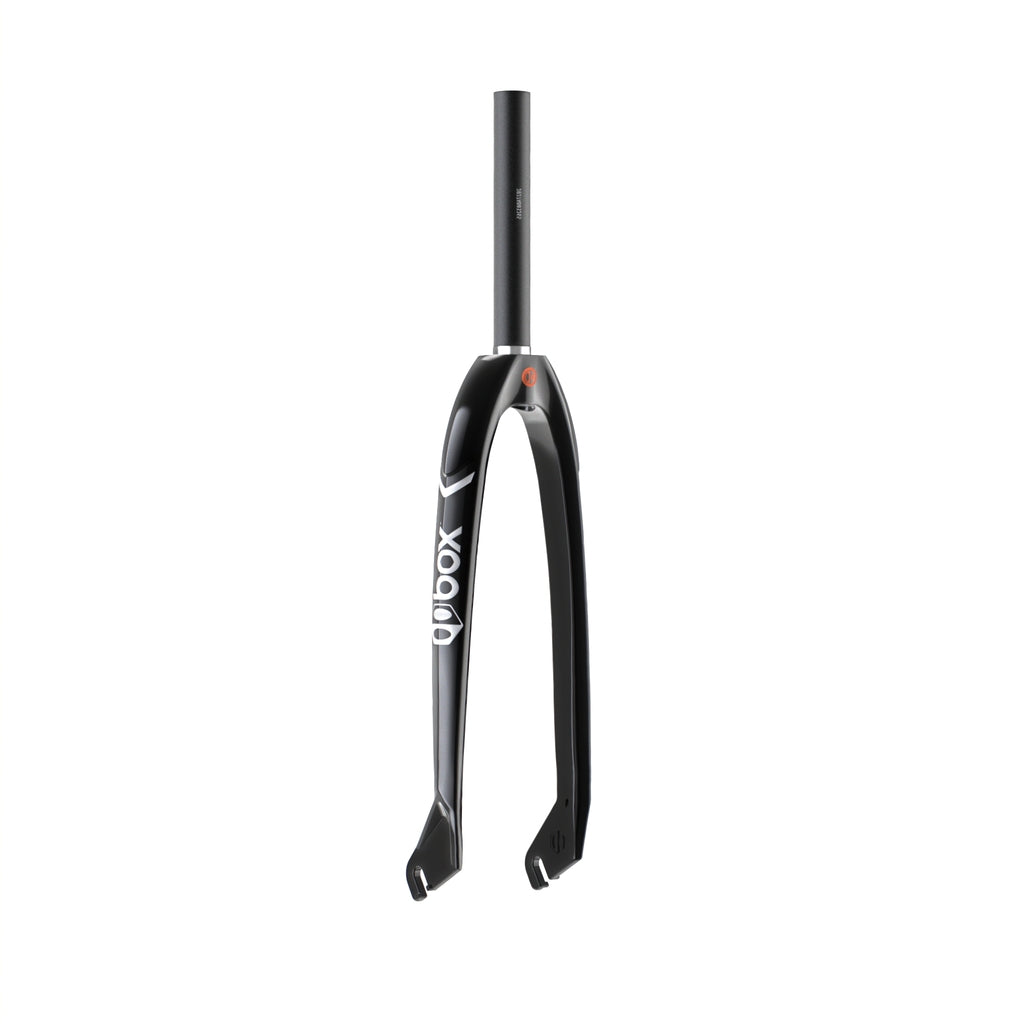

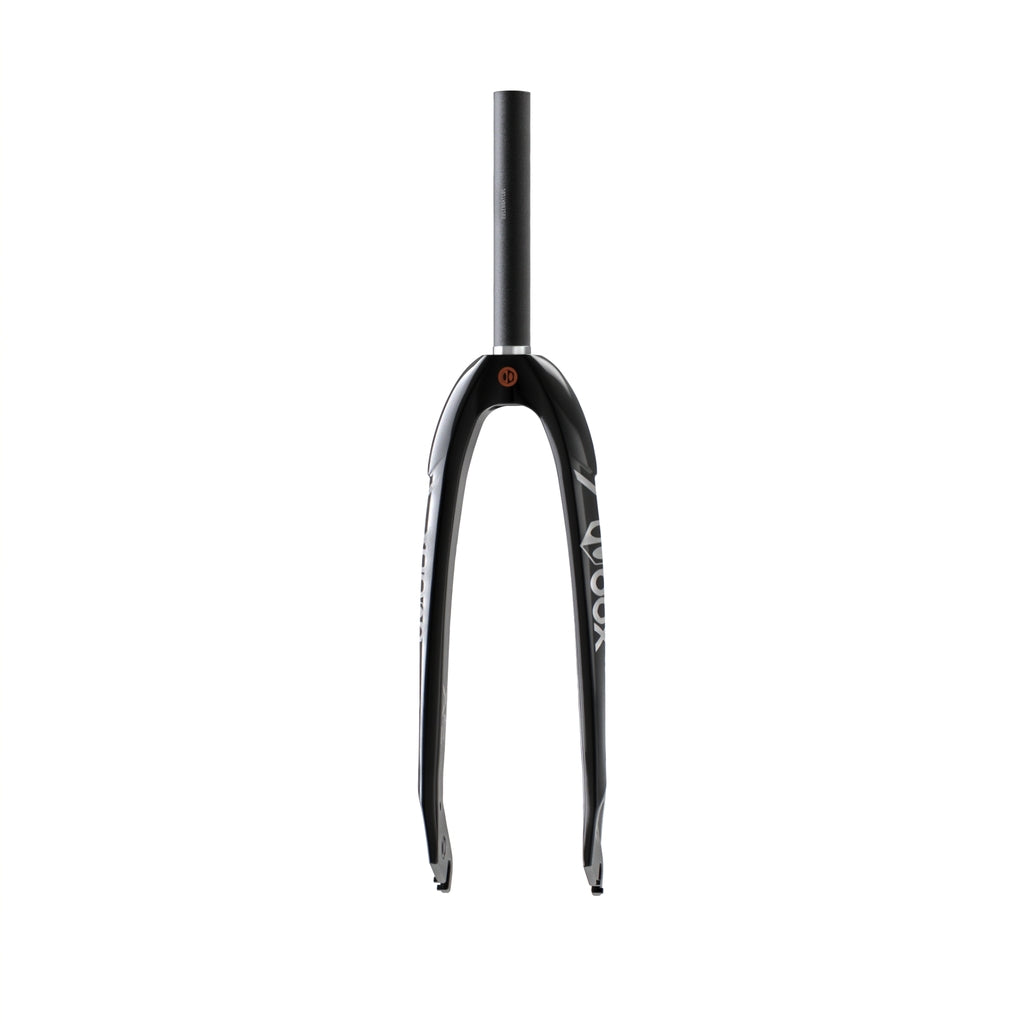

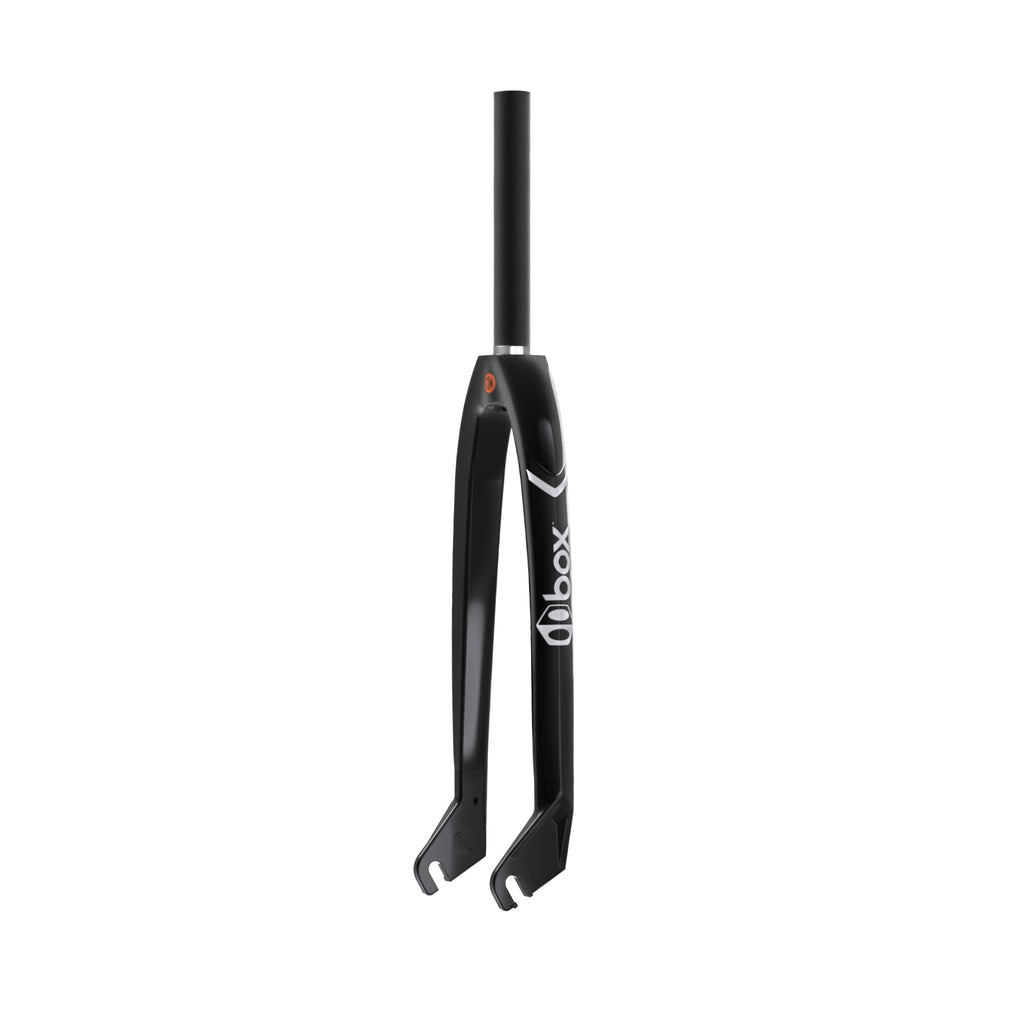

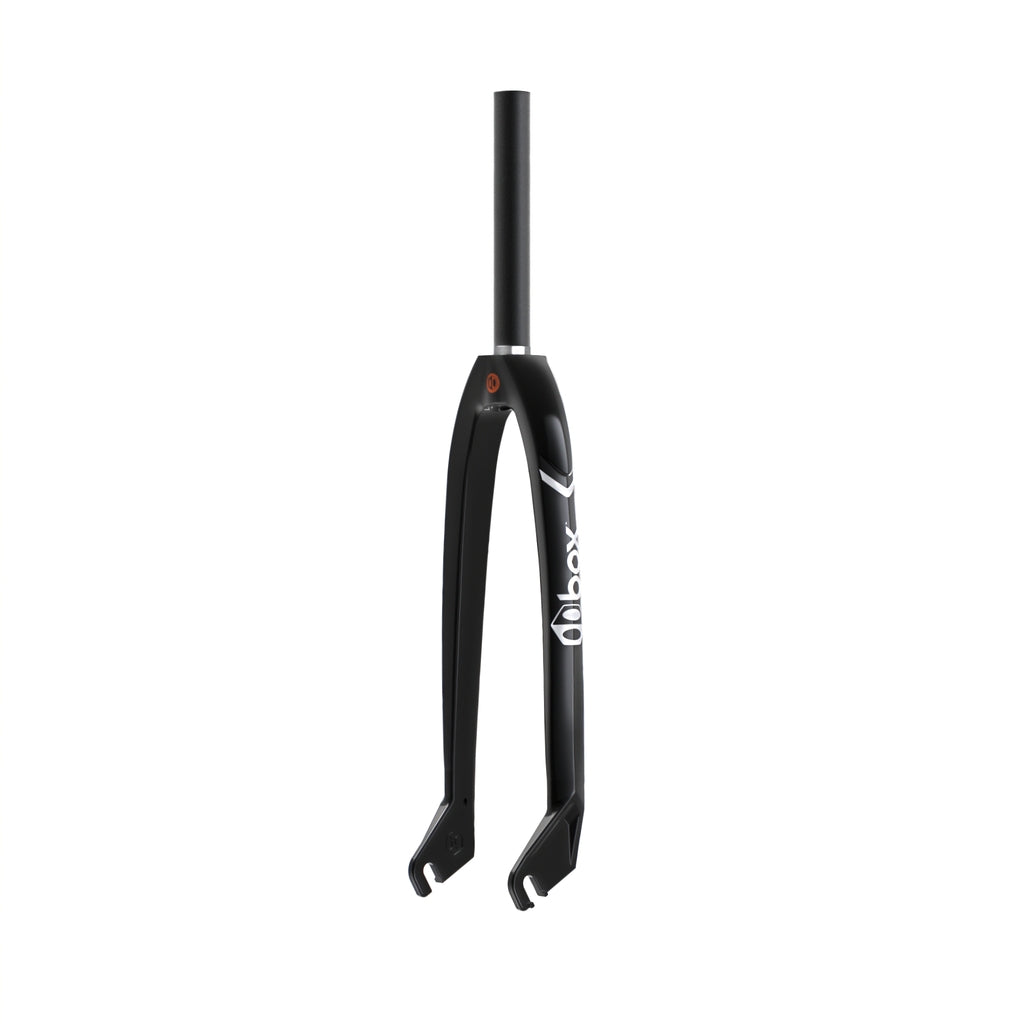

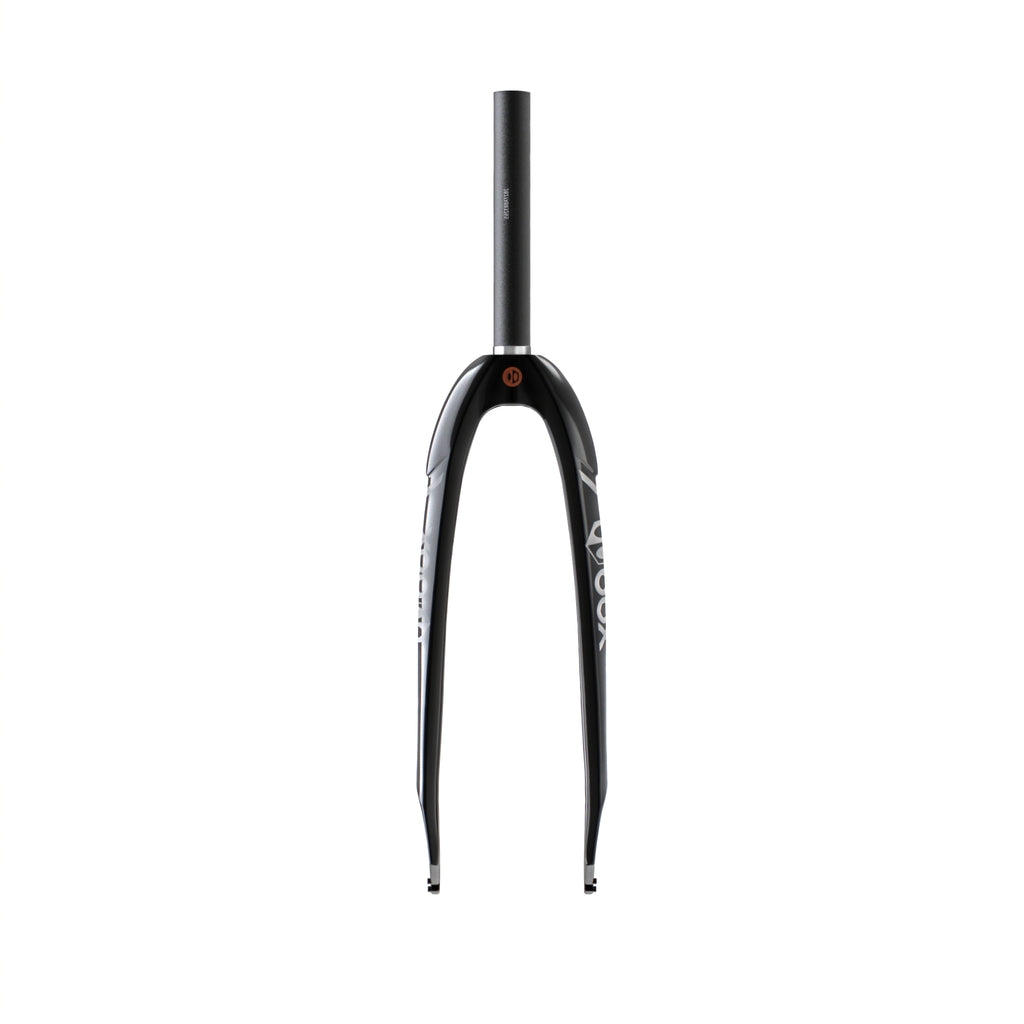

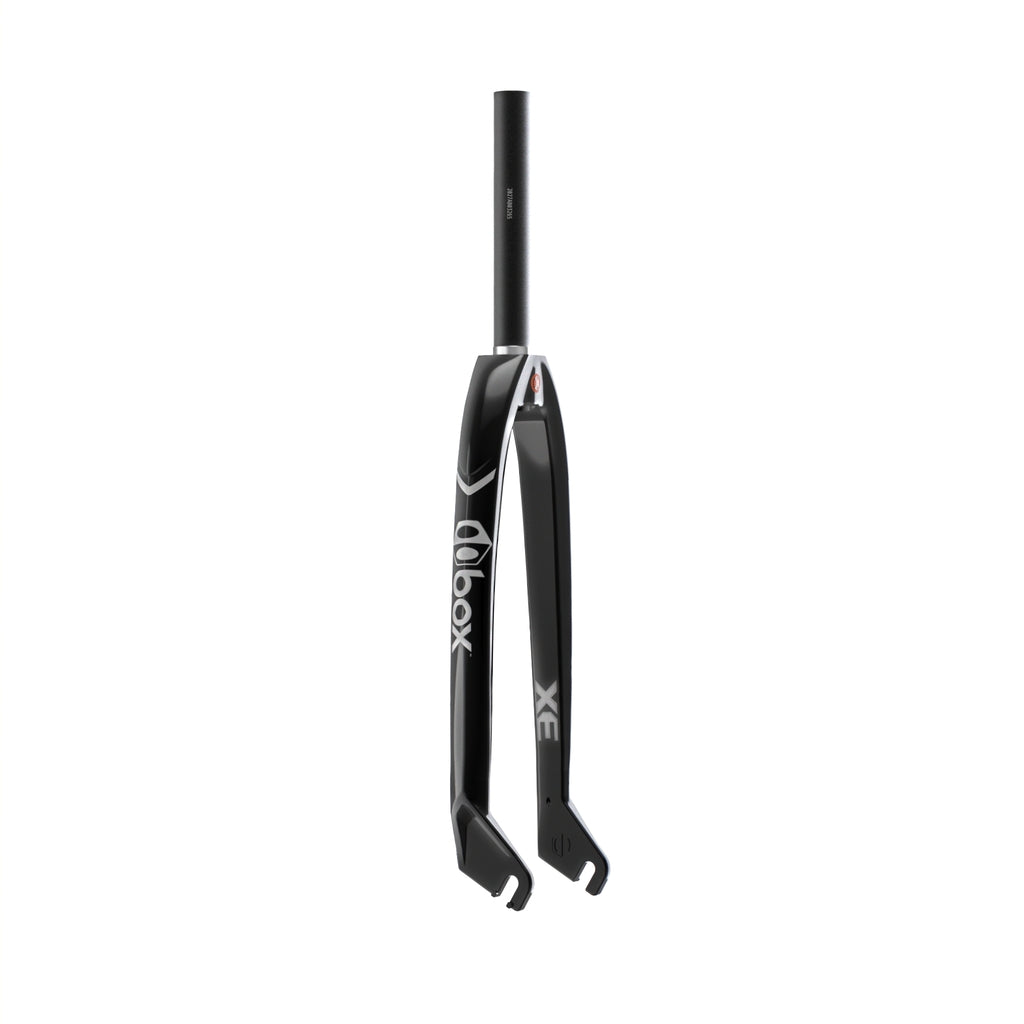

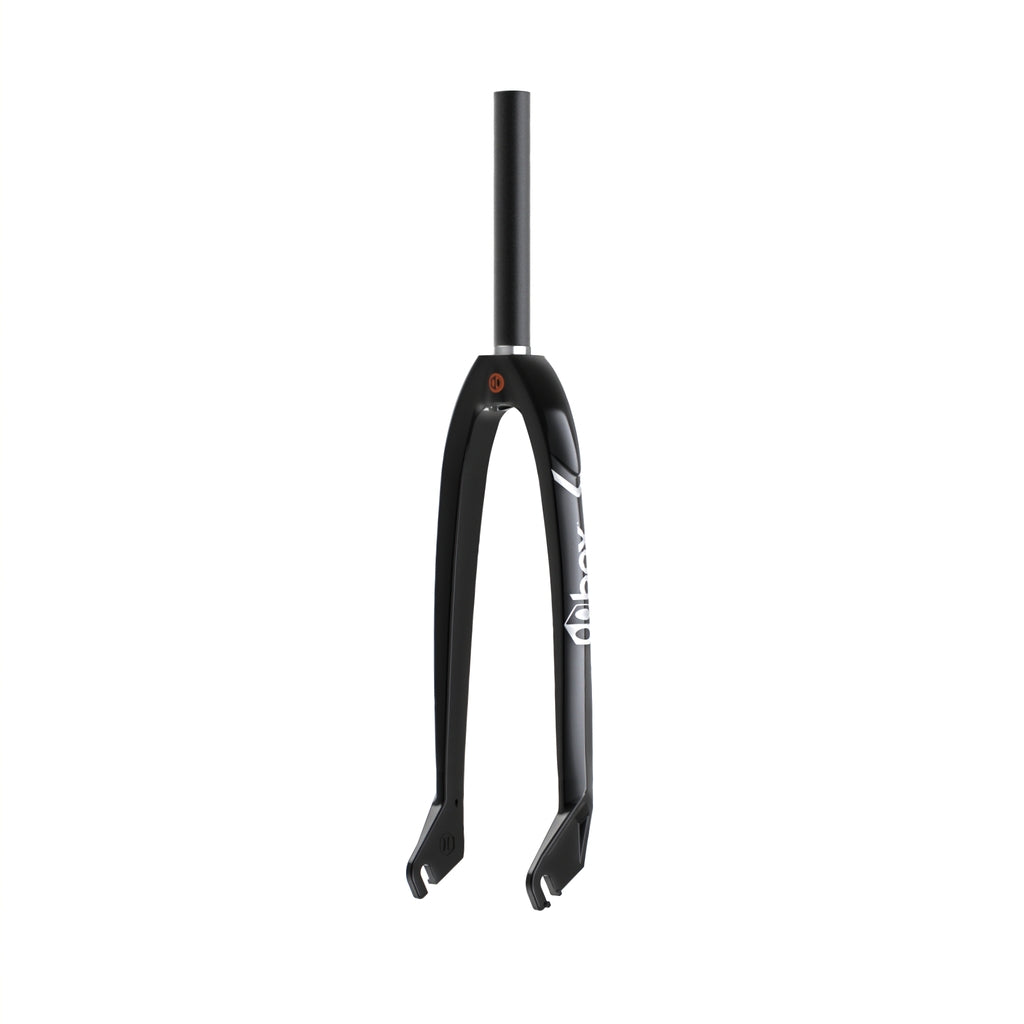

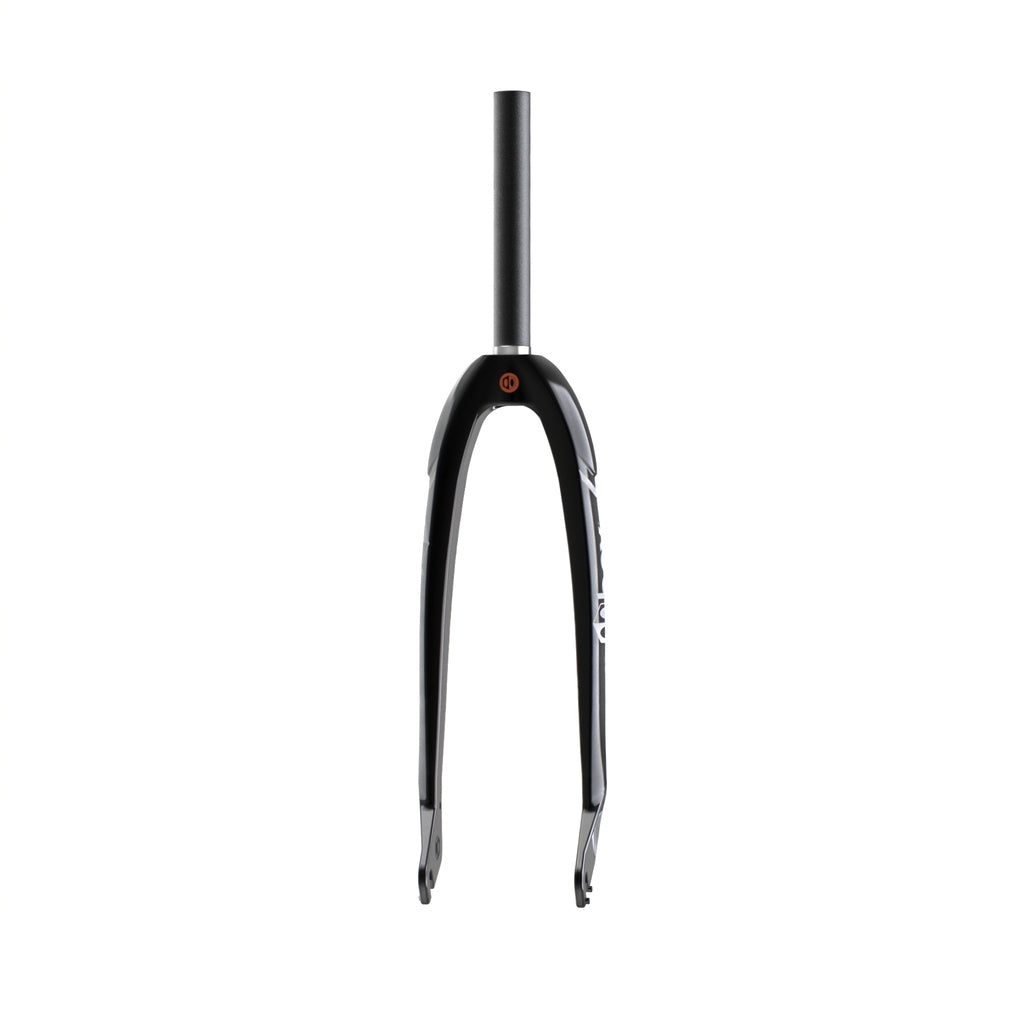

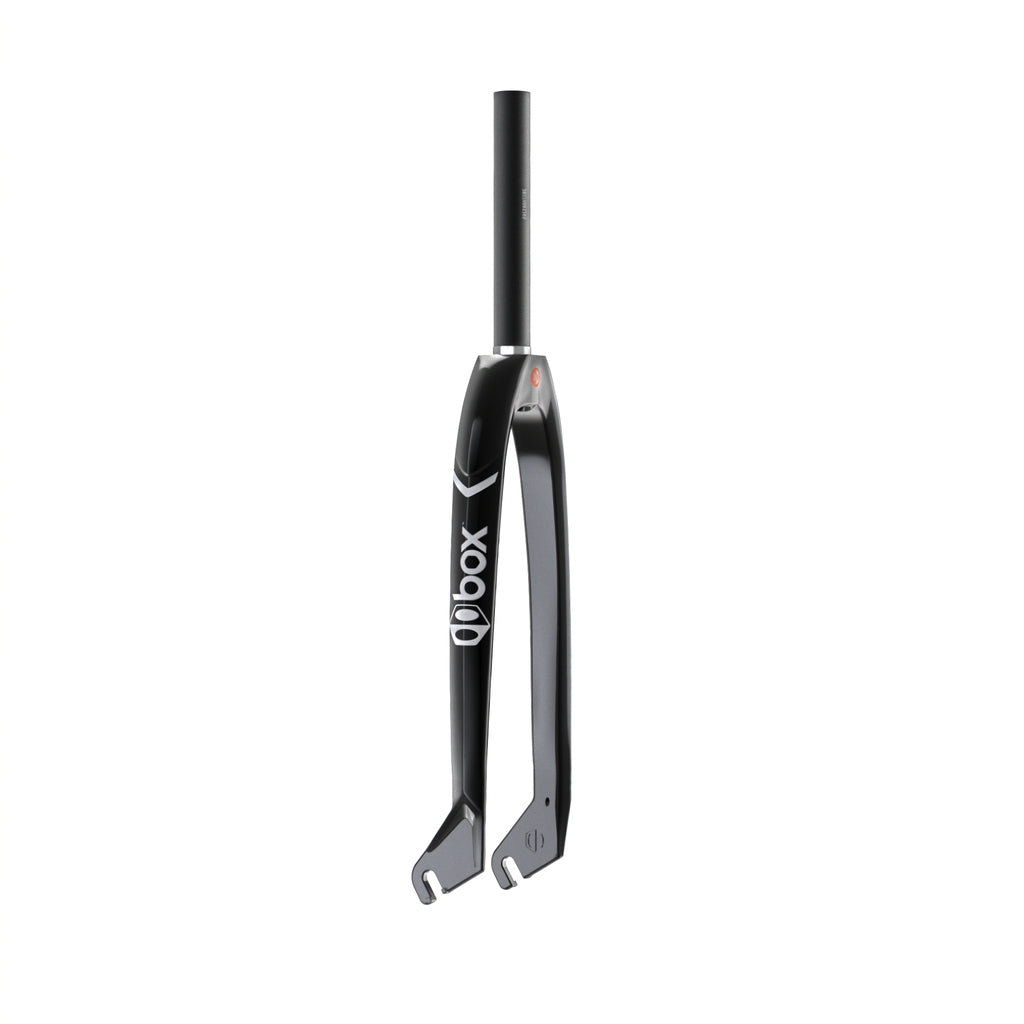

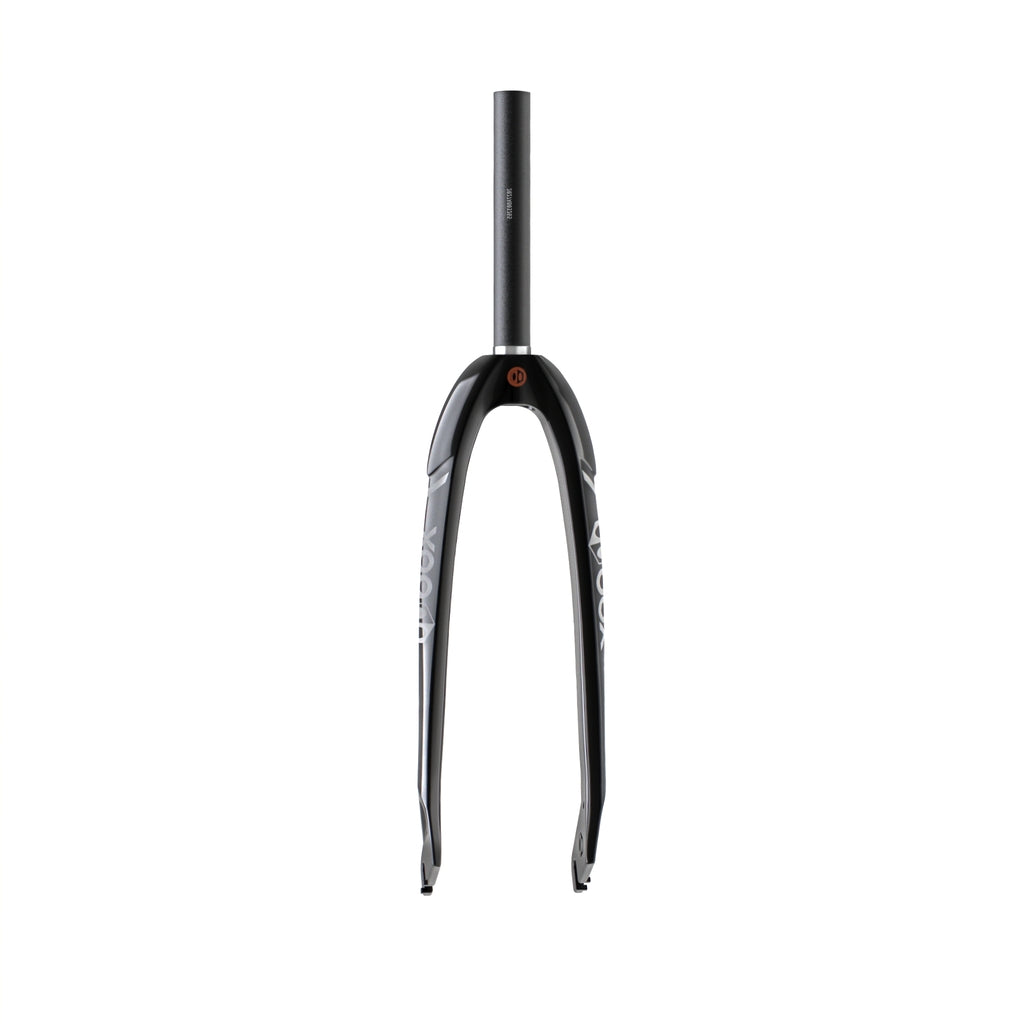

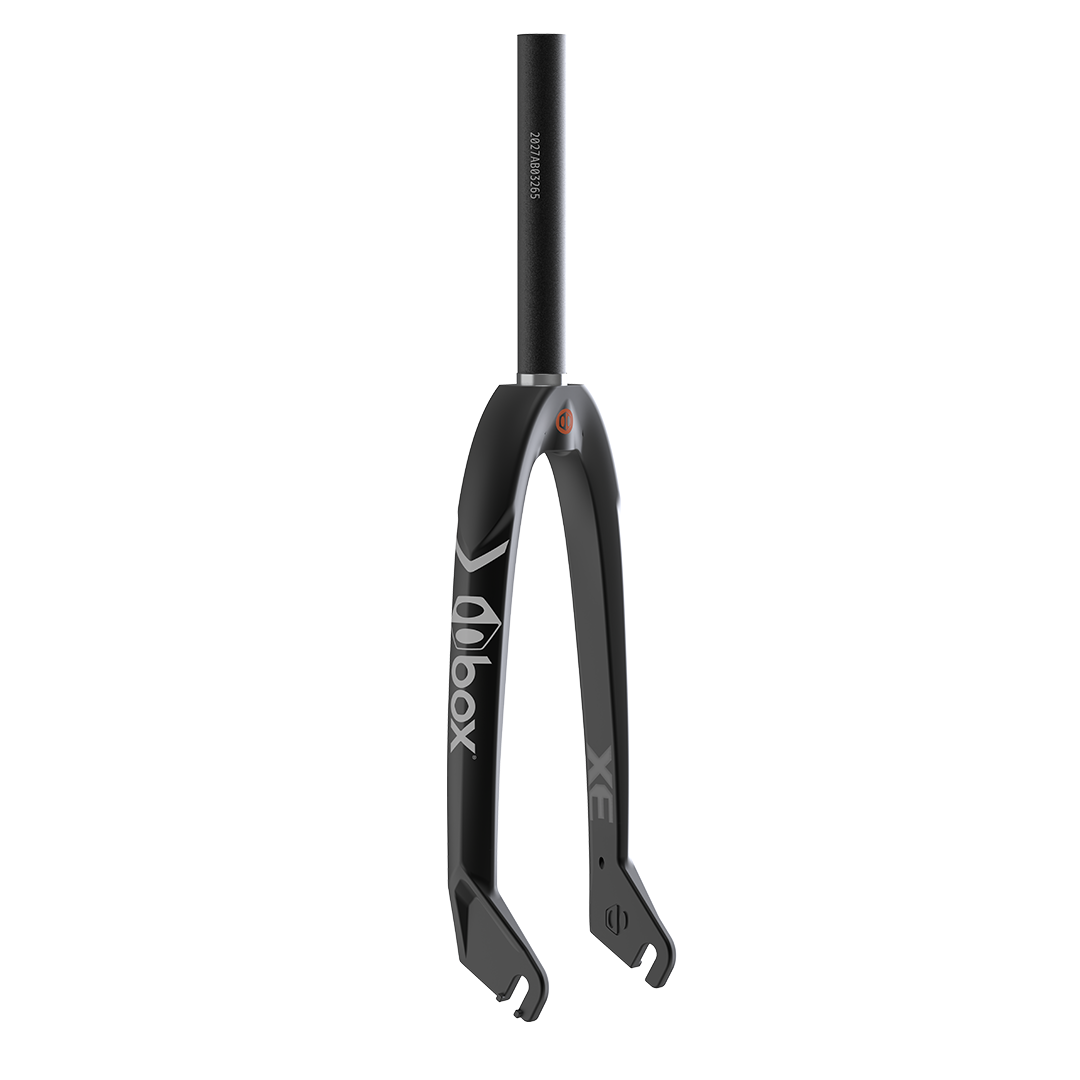

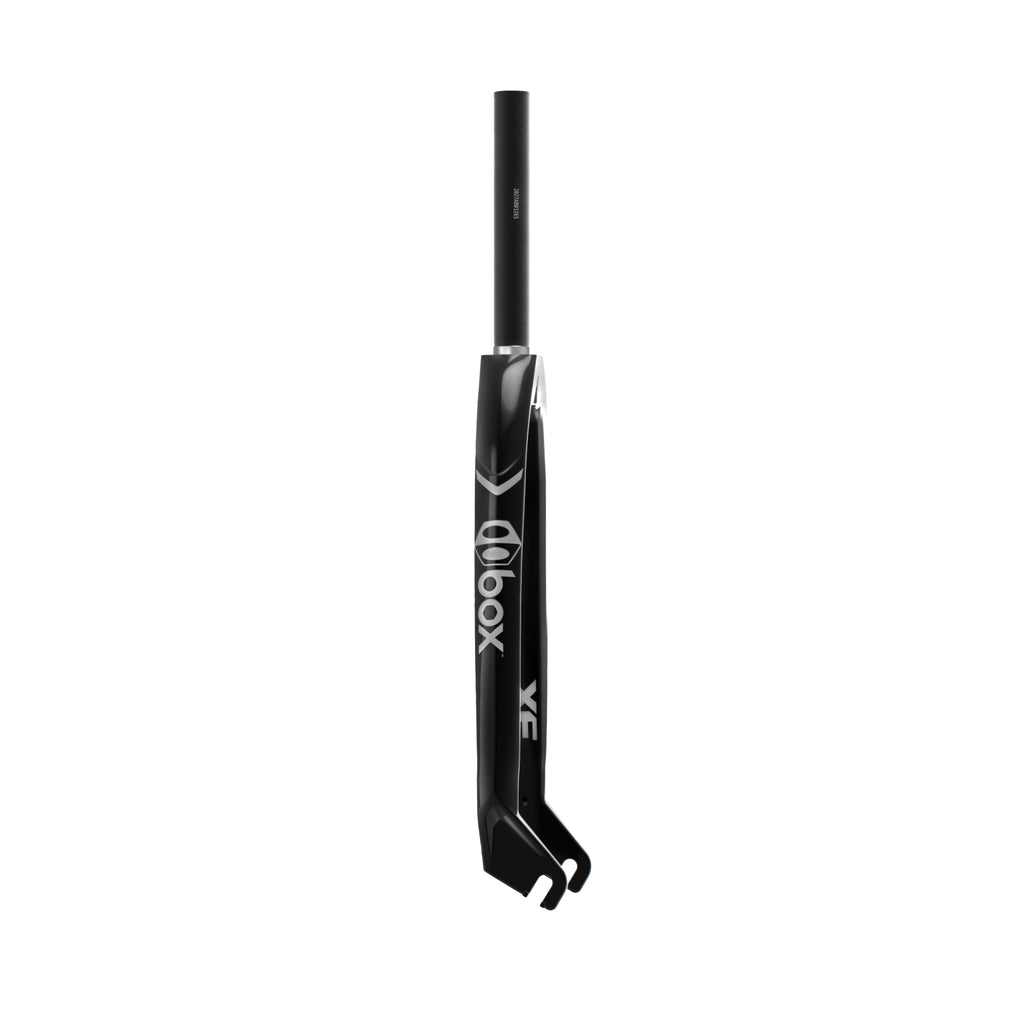

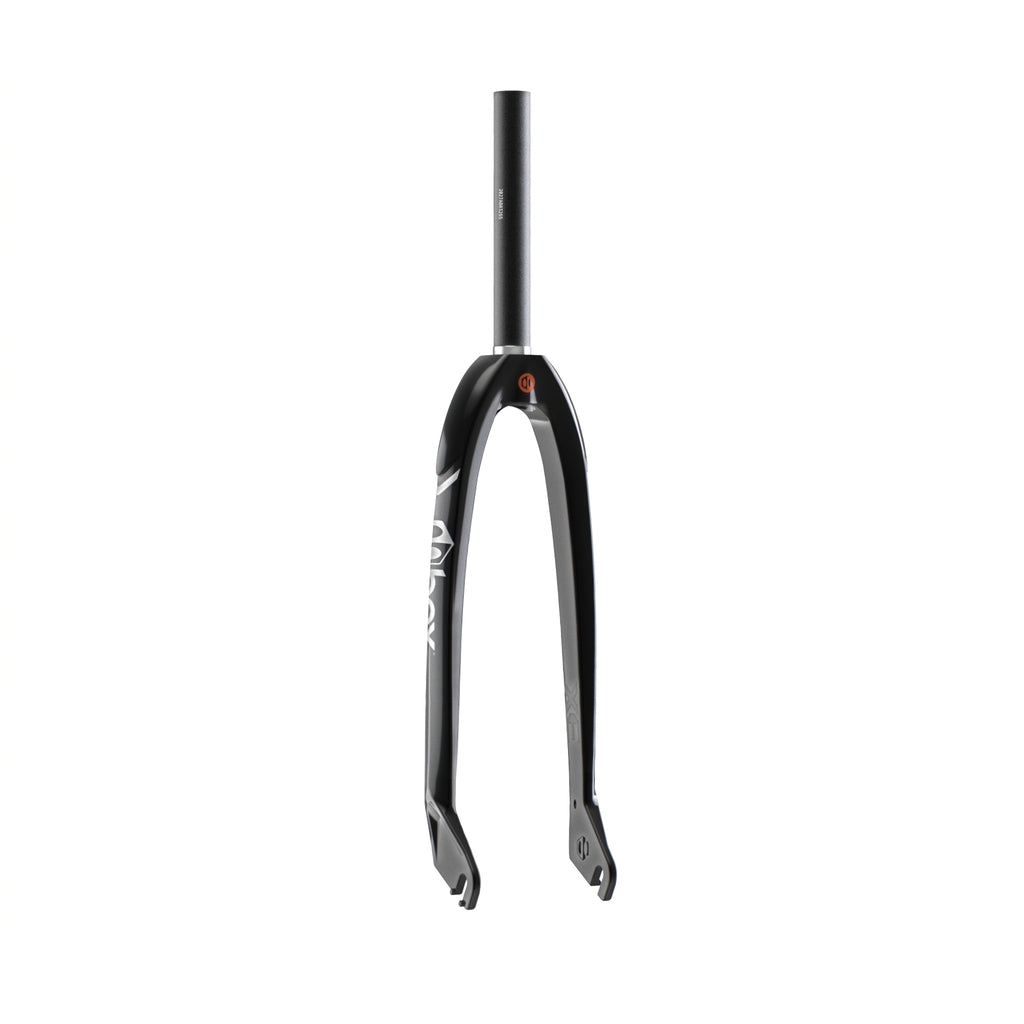

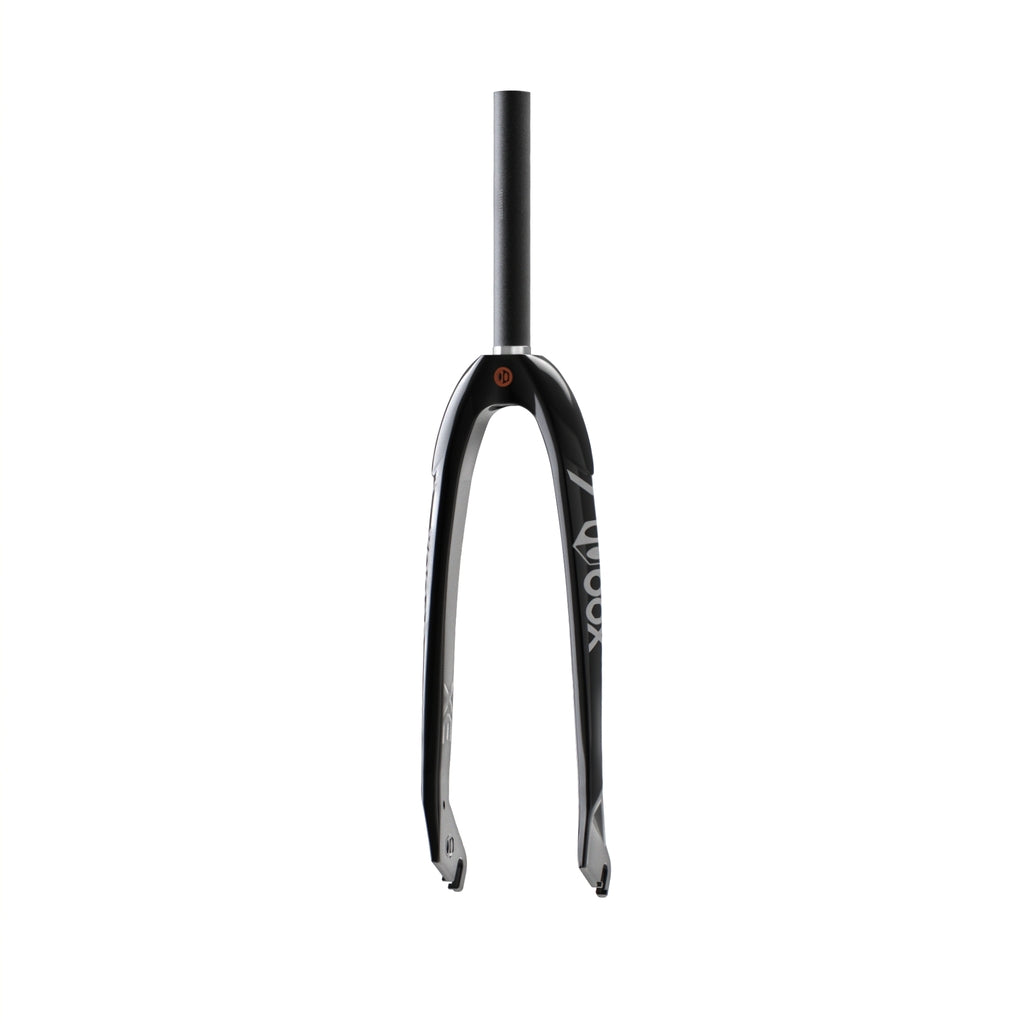

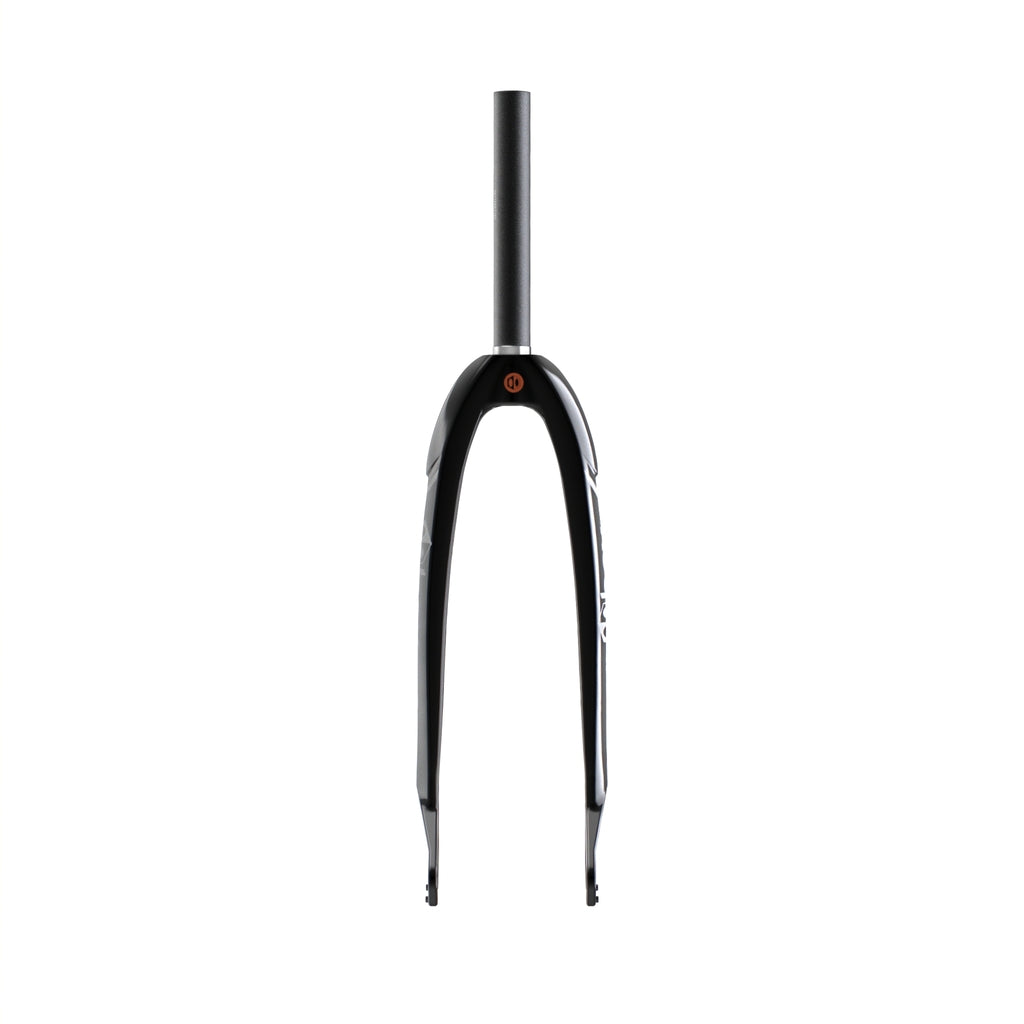

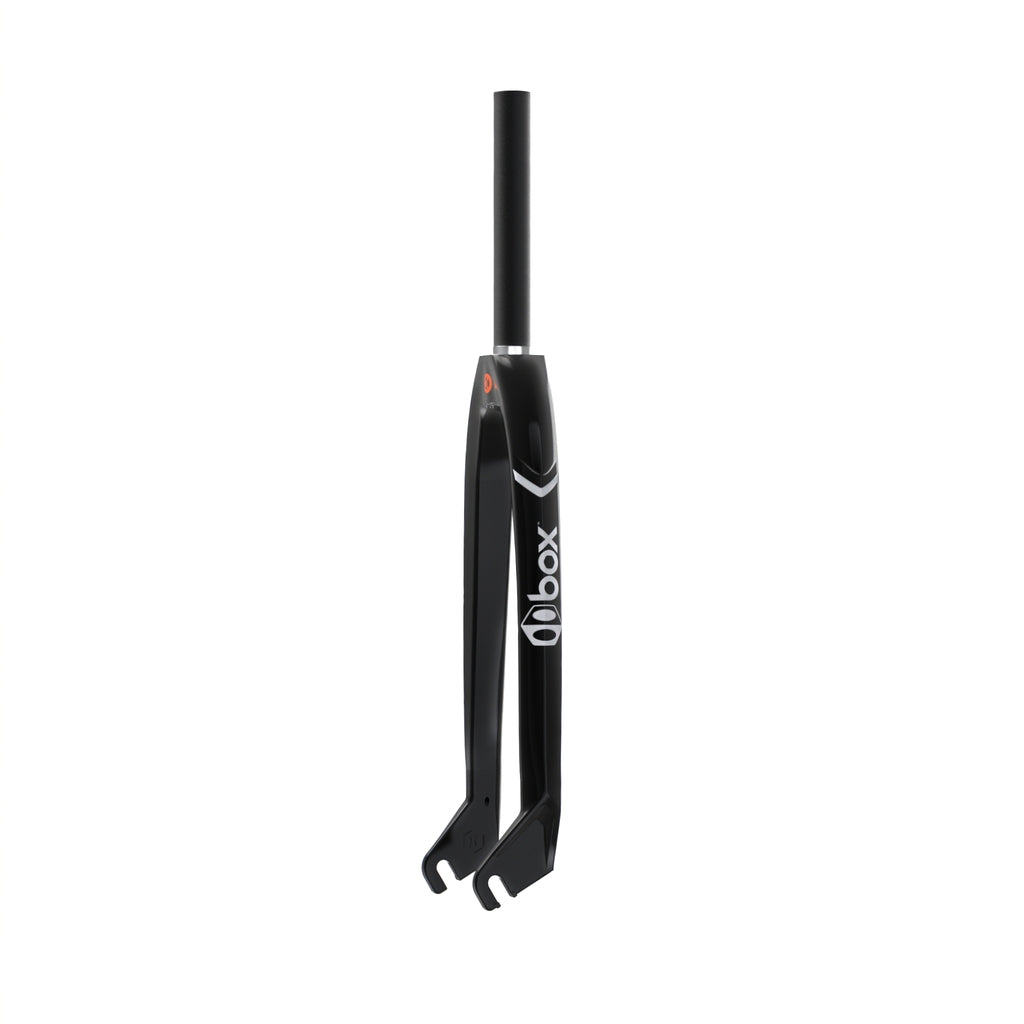

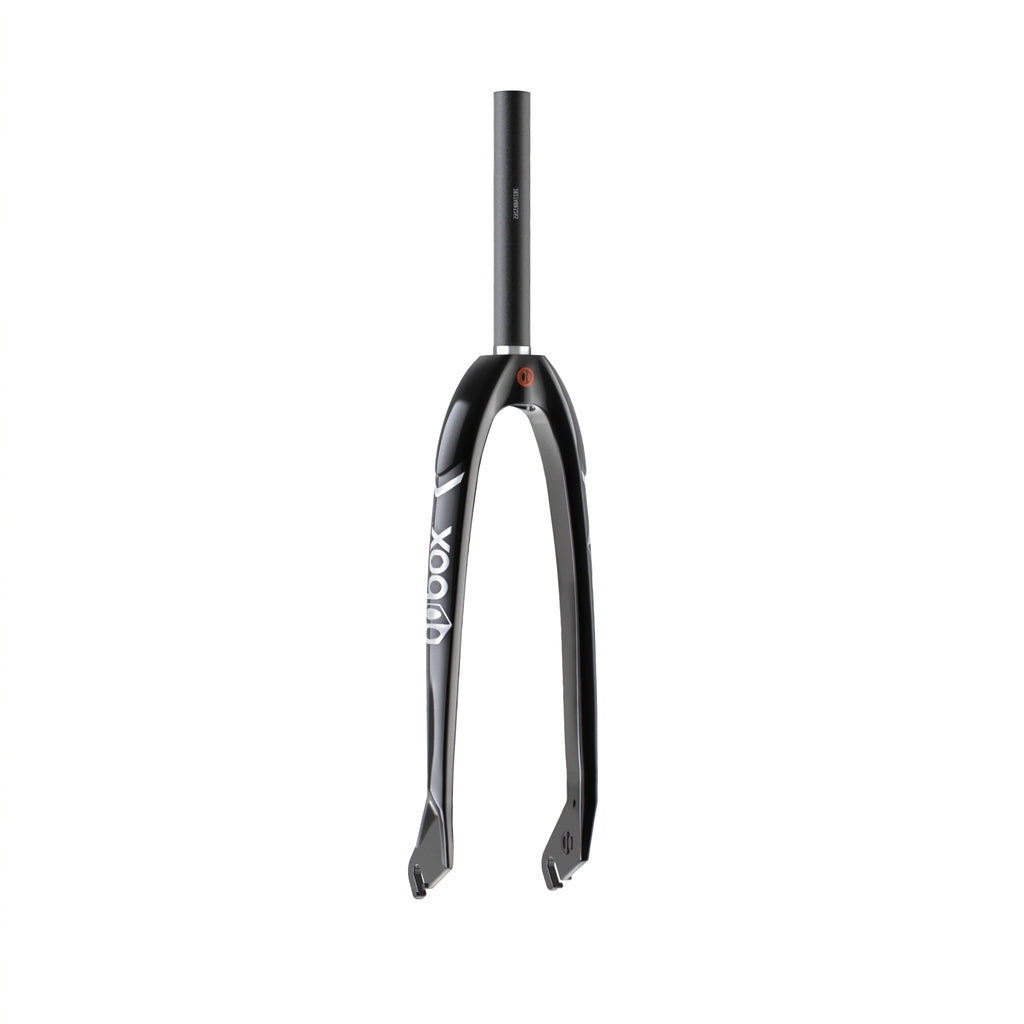

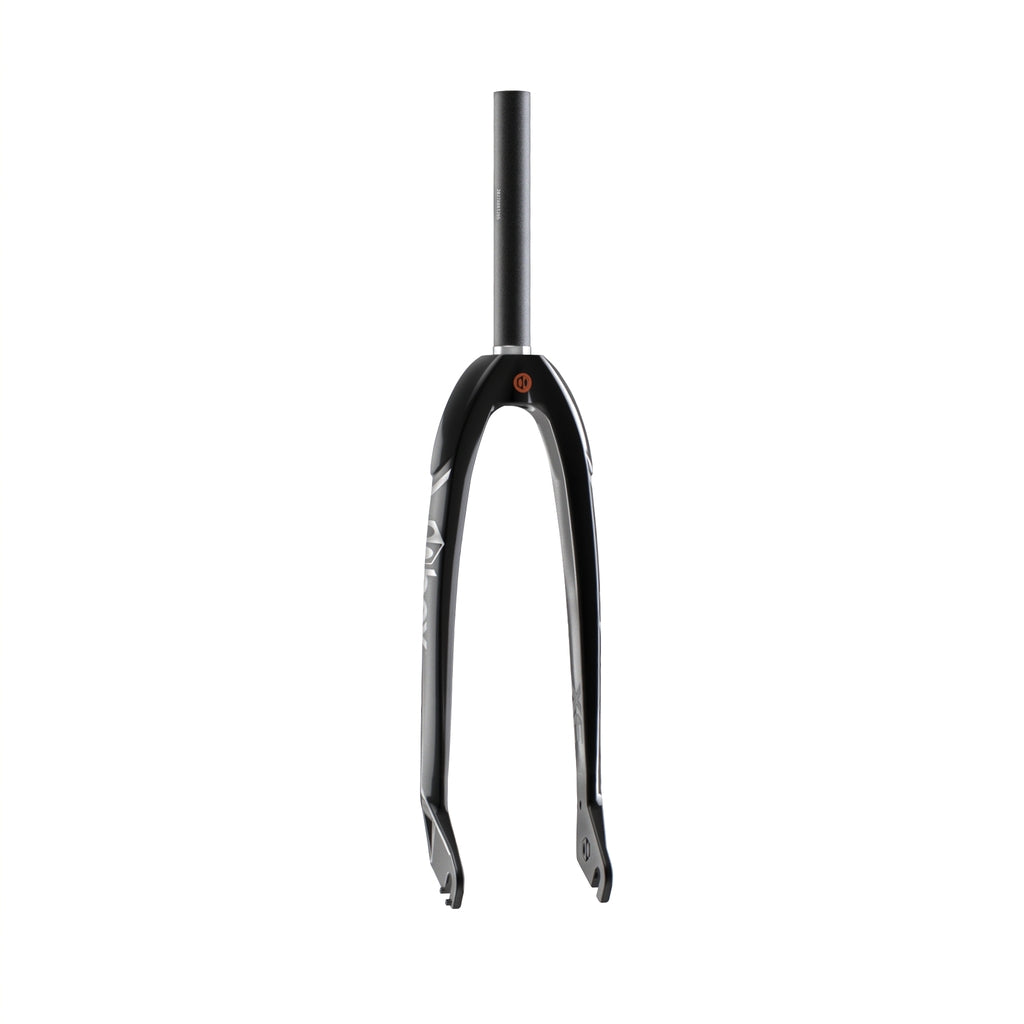

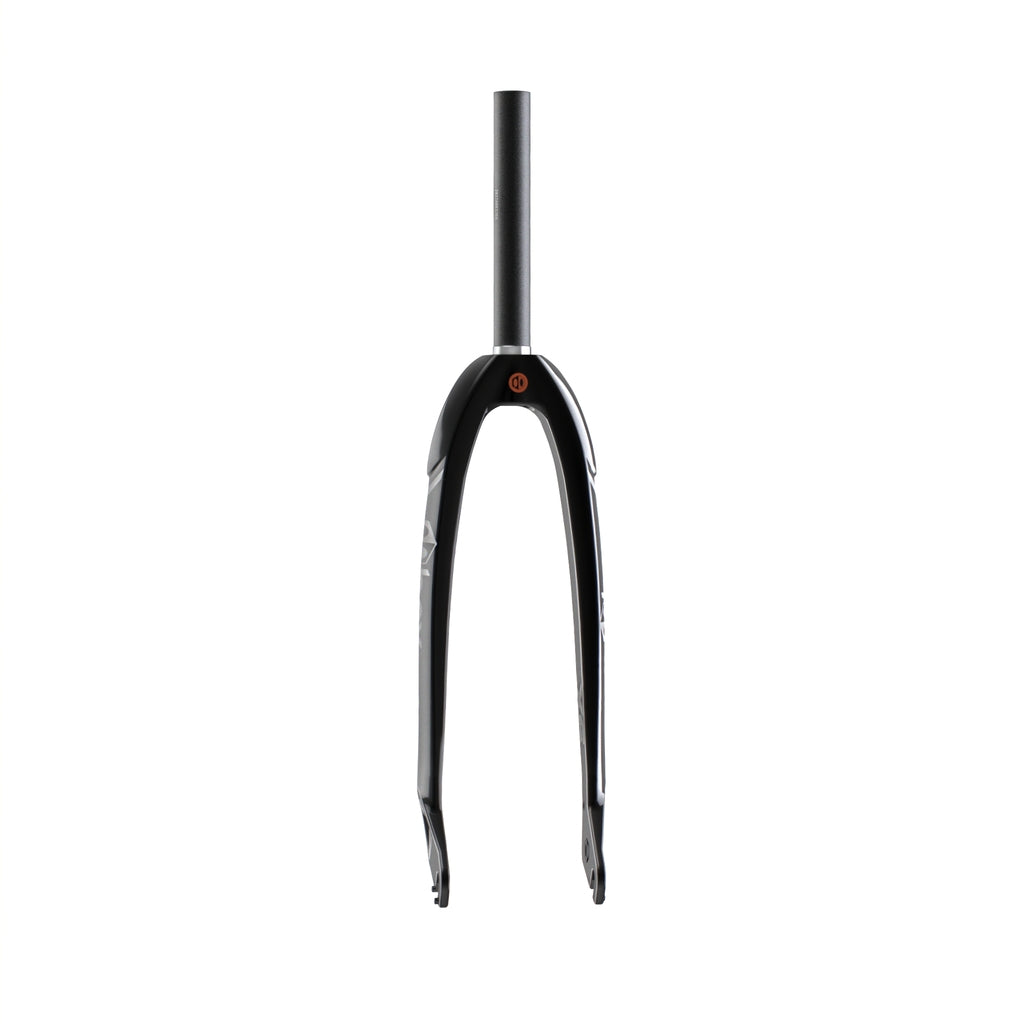

Box One Carbon BMX Race Fork – 1” Steerer

The Box One Carbon Fork is engineered specifically for competitive BMX racing, combining lightweight construction, exceptional steering stiffness, and precise handling. Built using Box’s Oversized Technology, this fork features strategically reinforced carbon fiber construction to maximize strength in high-stress areas while minimizing unnecessary weight.

The reinforced fork crown and muscular shoulder design provide superior steering stiffness, improved responsiveness, and more precise bike control. When paired with other Box Oversized components, the result is a responsive front end designed for competitive racing.

This model is specifically designed for mid-sized BMX racers, featuring a lightweight 7075-T6 aluminum 1” steerer tube and cold-forged 10mm dropouts.

Key Features

• High-modulus unidirectional carbon fiber legs for lightweight strength and stiffness
• Box Oversized Technology for improved steering precision and responsiveness
• Reinforced fork crown designed to handle high-stress loads
• Lightweight 7075-T6 aluminum 1” straight steerer tube
• Internal aluminum butterfly reinforcement for increased durability at the steerer and crown interface
• Cold-forged 6061-T6 aluminum 10mm dropouts
• Compatible with conventional 10mm front hubs
• Includes Box One Stem Lock
• Available for 20” and 24” BMX racing applications

Specifications

• Brand: Box
• Model: Box One Carbon Fork
• Application: BMX Racing
• Fork Legs: High-Modulus Unidirectional Carbon Fiber
• Steerer Material: 7075-T6 Aluminum
• Butterfly Reinforcement: 6061-T6 Aluminum
• Dropouts: 6061-T6 Aluminum
• Carbon Manufacturing Process: Vacuum Molded
• Steerer Construction: Extruded and Butted
• Dropout Construction: Cold-Forged
• Steerer Diameter: 1” Straight
• Fork Offset: 32mm
• Axle Compatibility: 10mm
• Wheel Sizes: 20” / 24”
• Finish: Gloss Black / Matte Black with Water Decals
• Included Hardware: Box One Stem Lock

Weight

• 20” Fork: 480g (16.9 oz)
• 24” Fork: 490g (17.3 oz)

Rider Weight Limit

Maximum rider weight: 45 kg (99 lbs), subject to the limitations specified under Category 1 of EN 16054:2012.

Compatibility

Compatible with the following Box components:

• Box One Stem Spacers
• Box Two Stem Spacers
• Box Two Threadless Headset
• Box Two 1” Integrated Headset
• Box Two 1” Integrated Conversion Headset
• Box Two Headset Adapters
• Box Two Top Load 1” Stem
• Box Hex Lab 1” Stem
• Box Two Center Clamp 1” Stem

Frequently Asked Questions

What is the difference between the XS and XE forks?

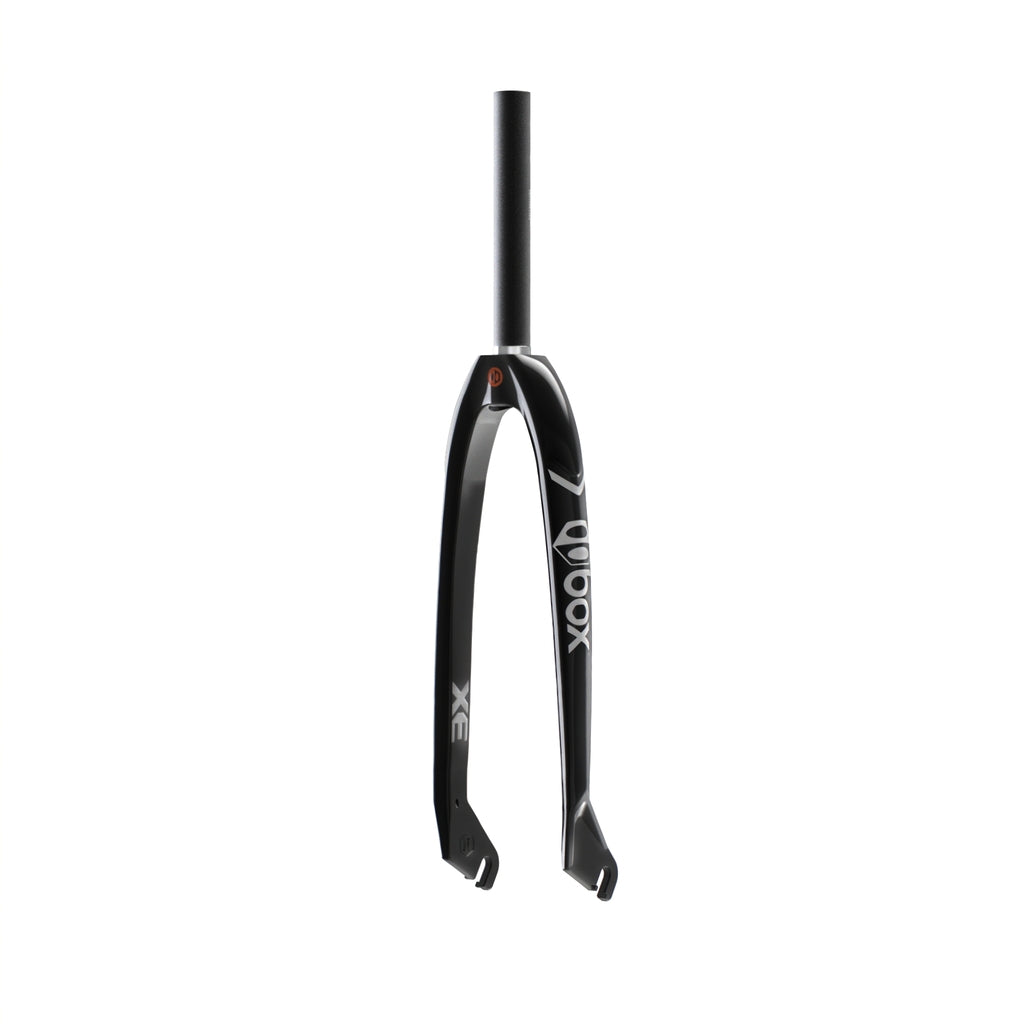

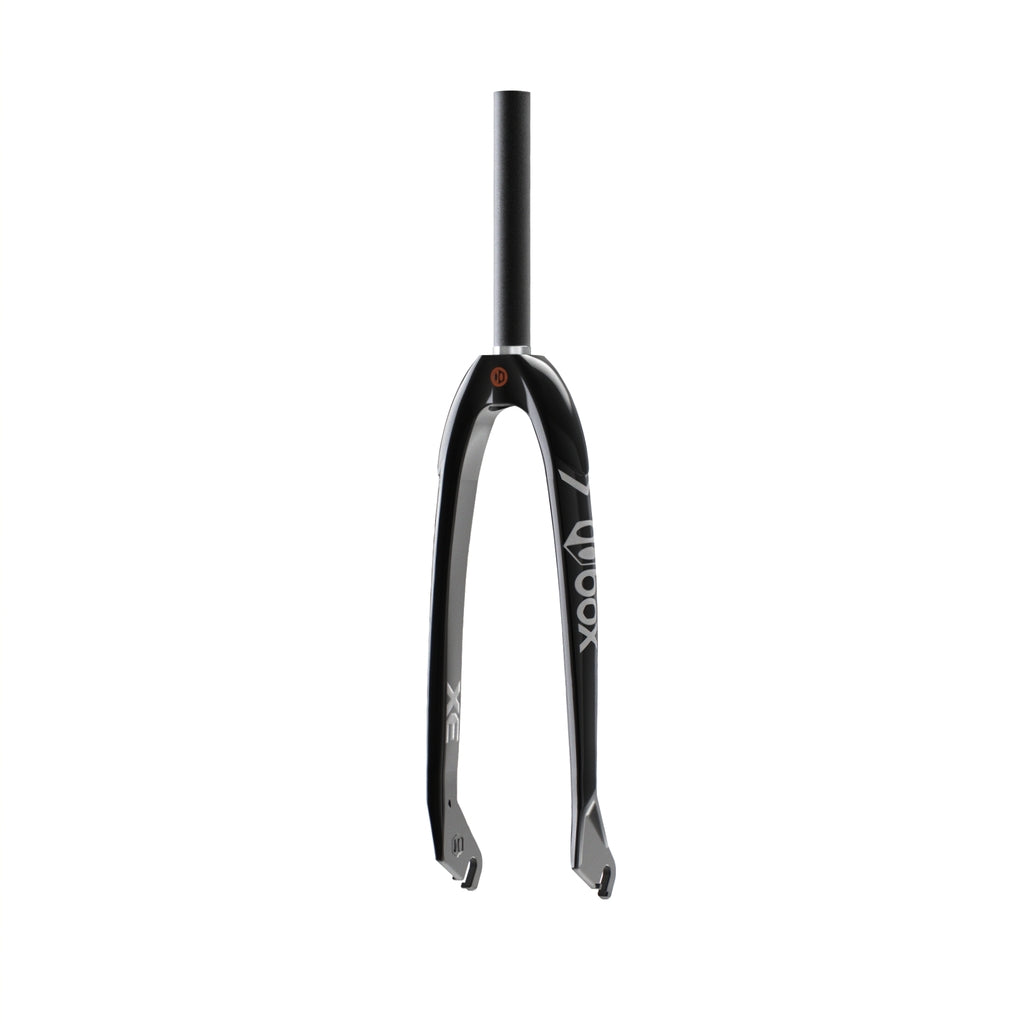

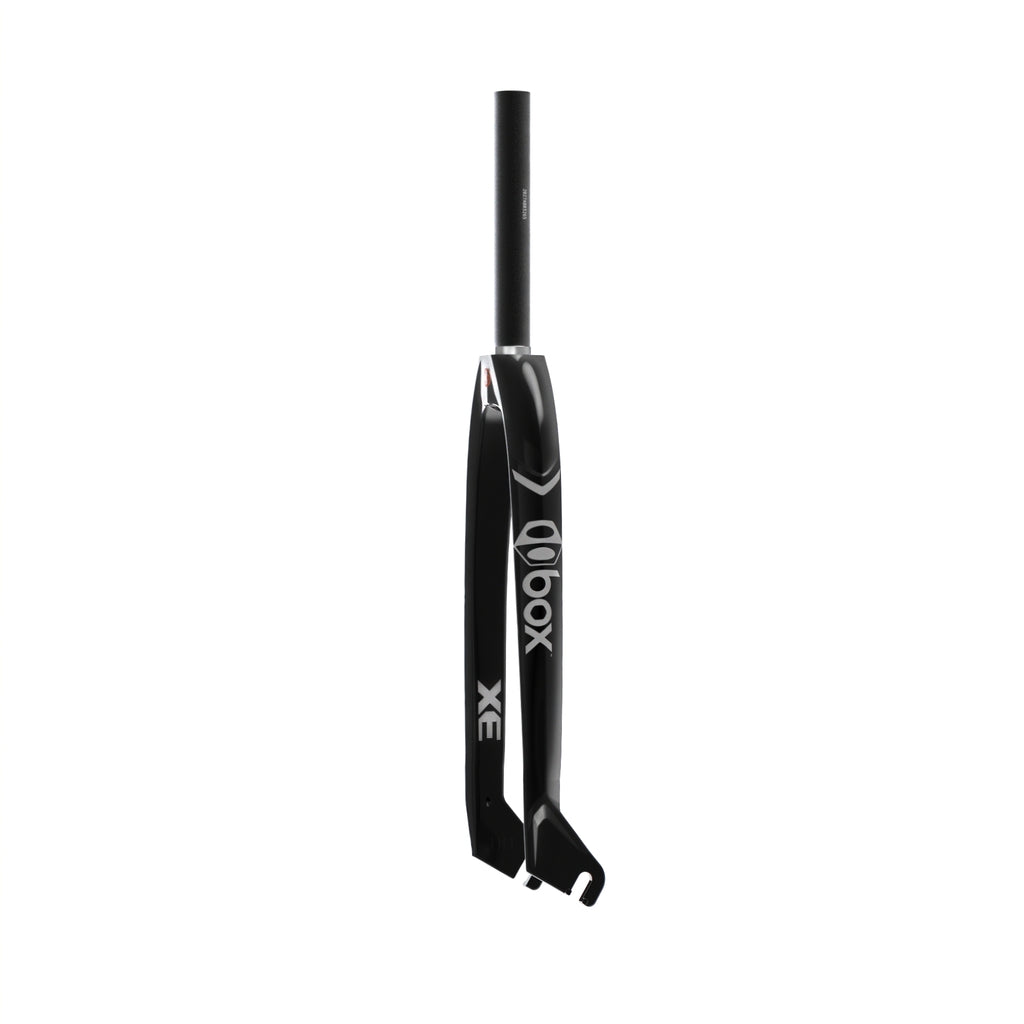

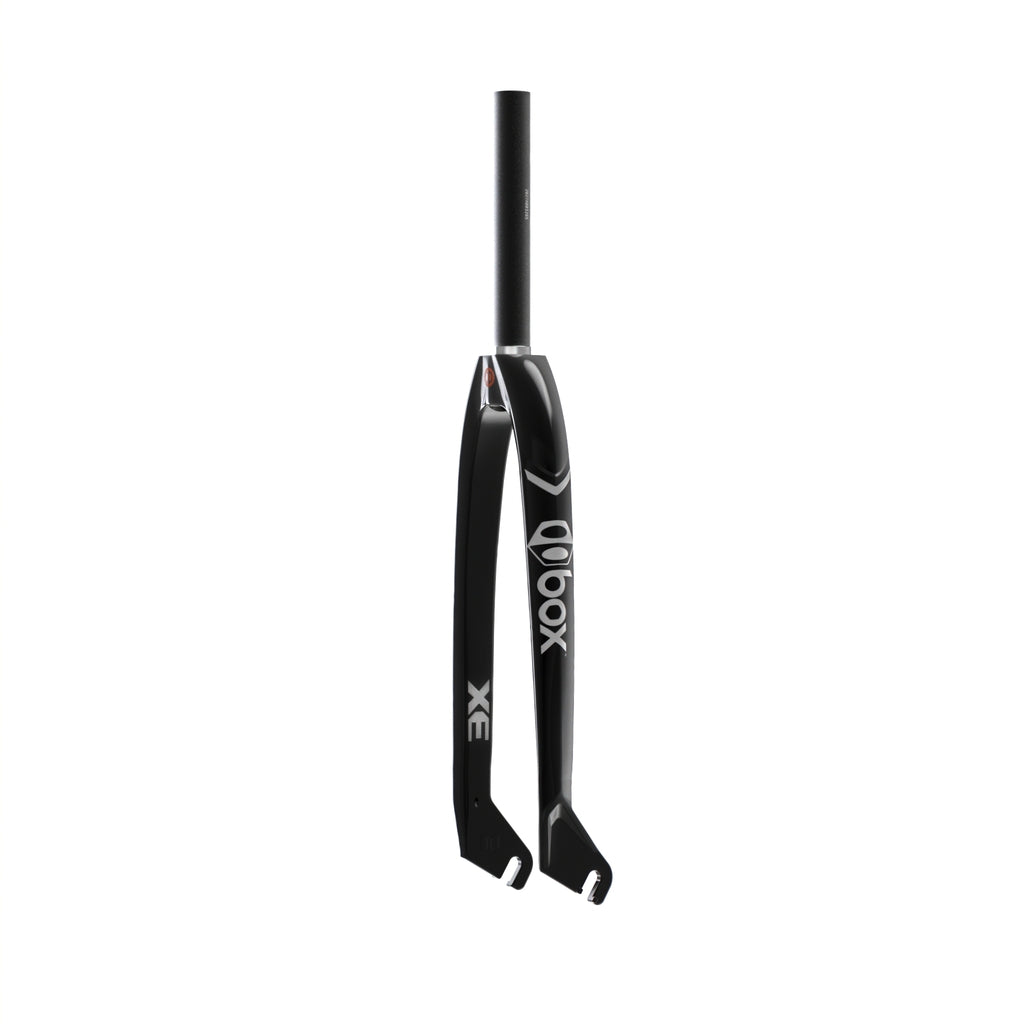

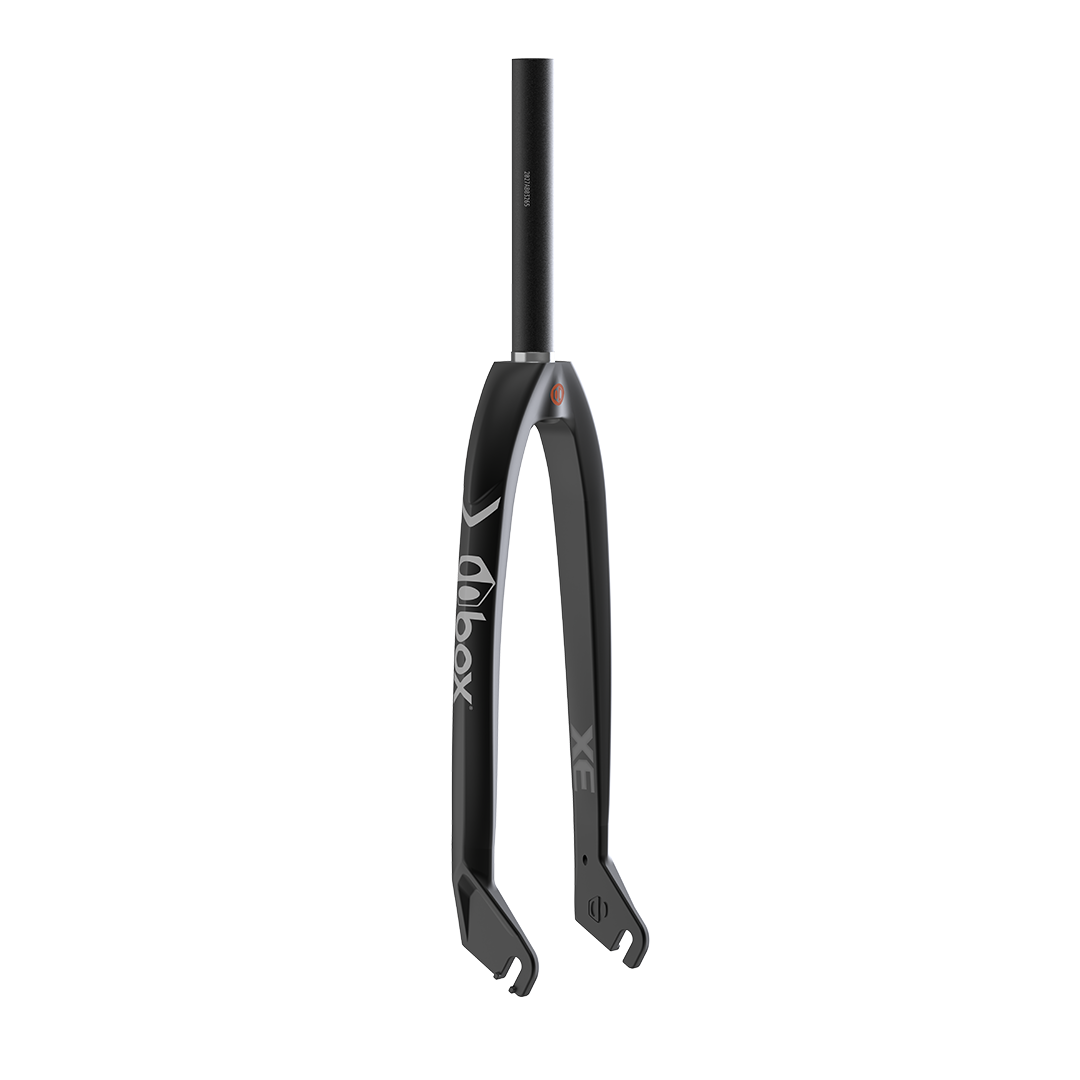

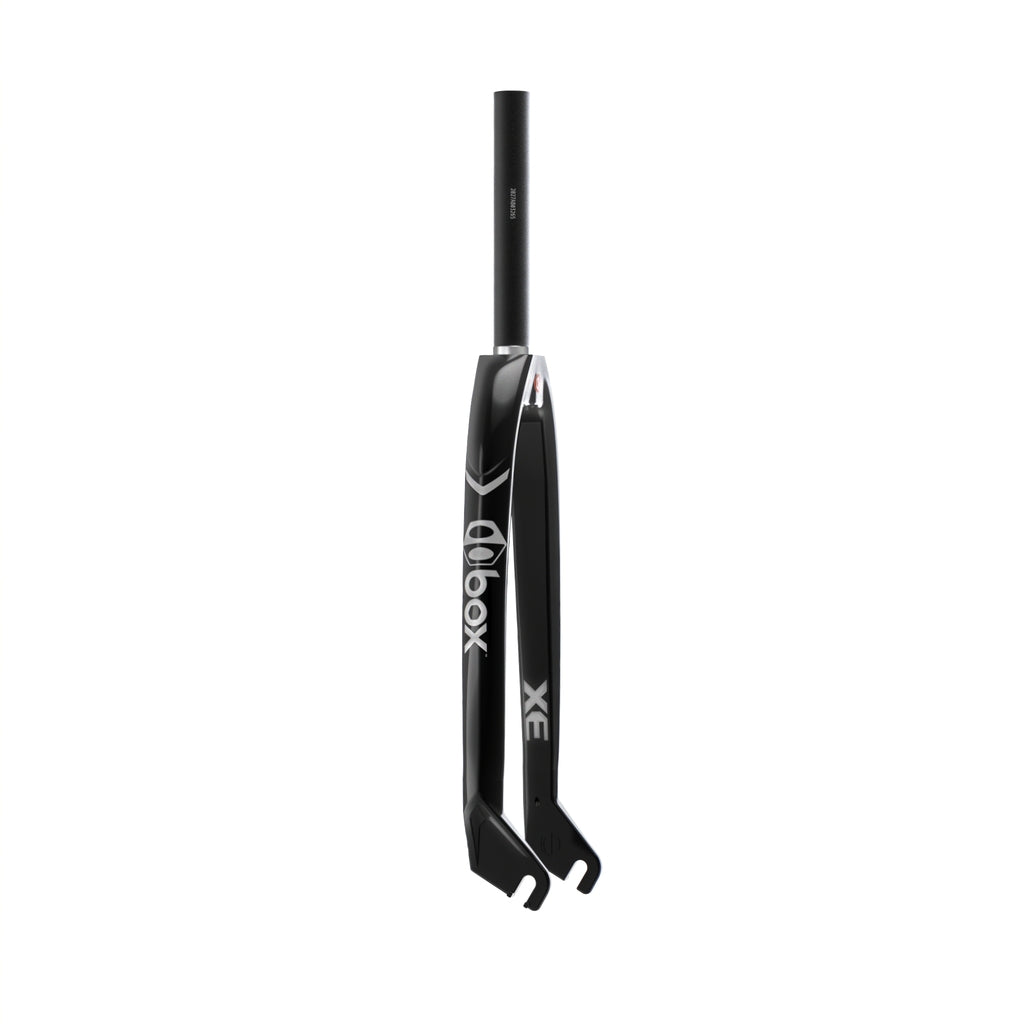

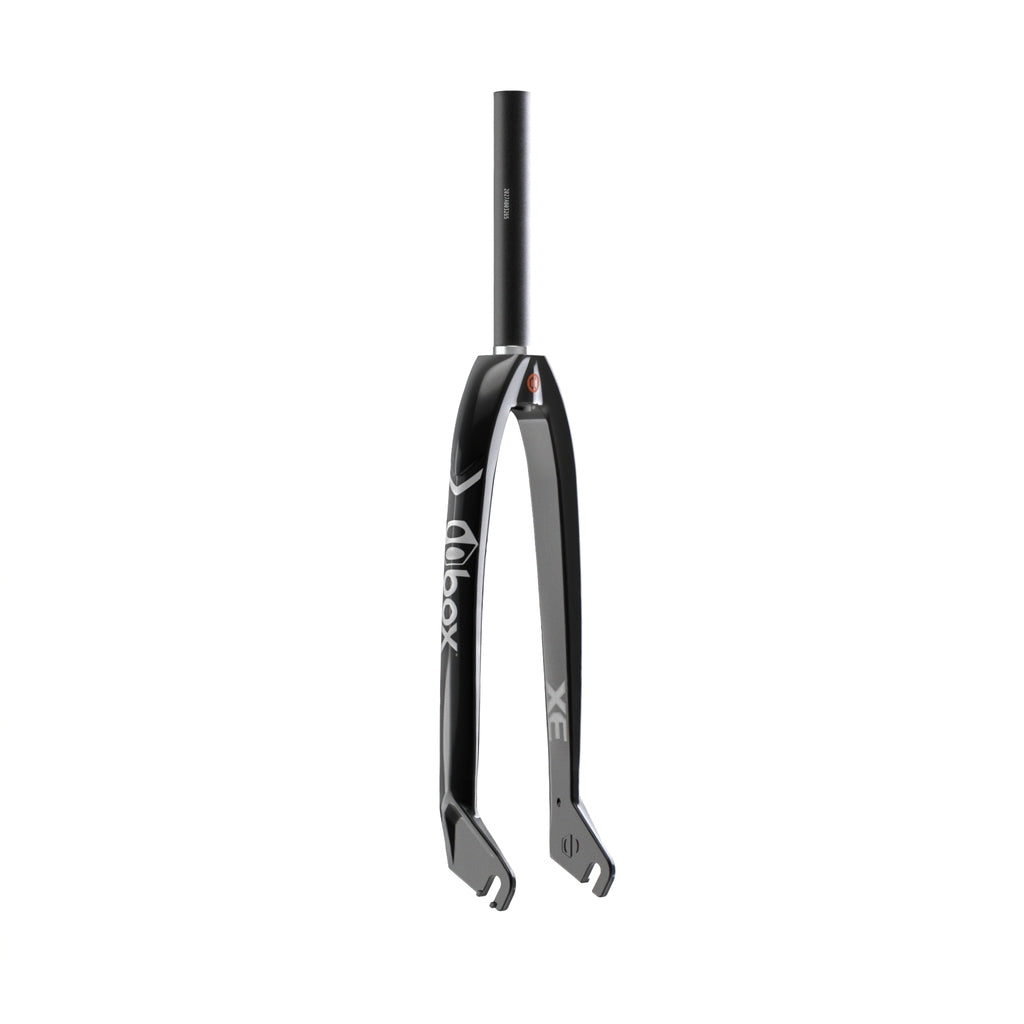

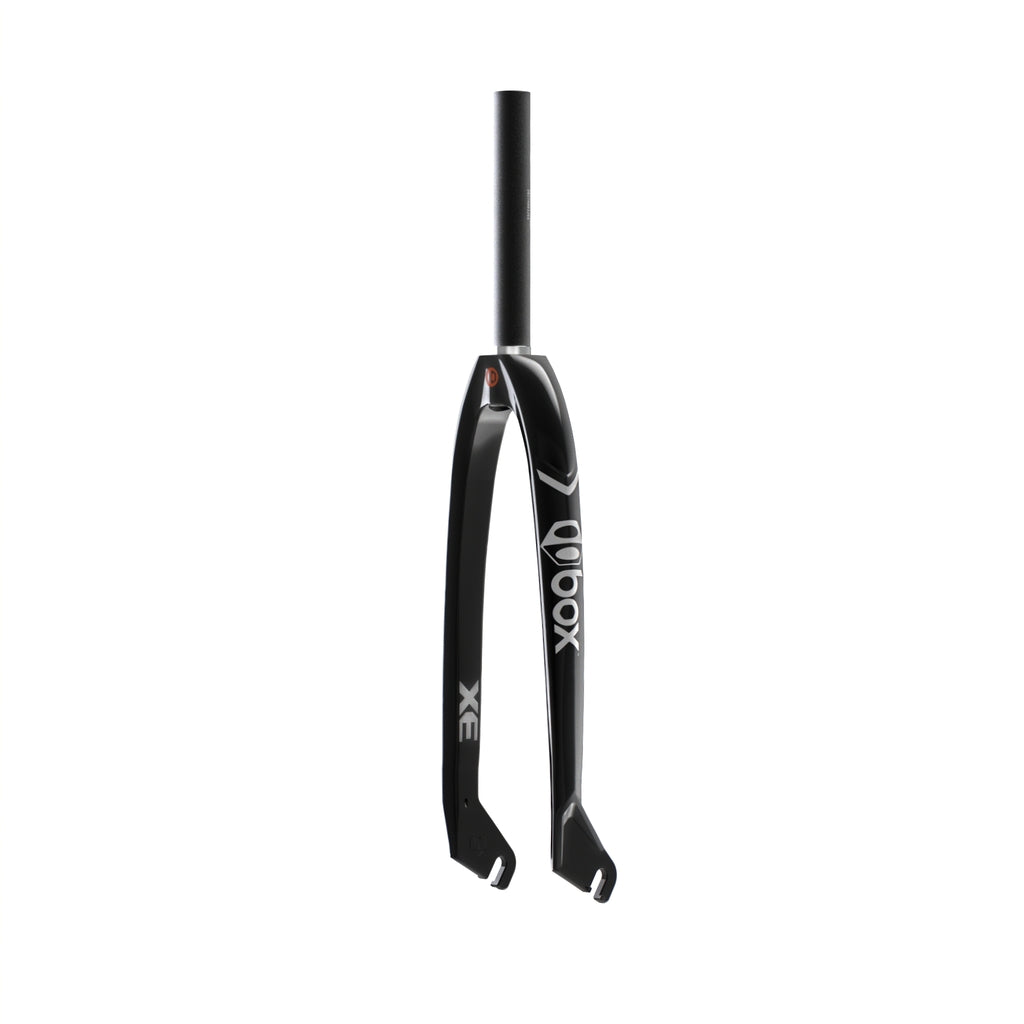

The XS features narrower fork legs designed for smaller wheel and tire combinations. It is also lighter than the XE model. The XE offers additional clearance and is better suited to larger BMX racing setups, including some Junior, Expert XL, and Expert XXL applications.

Do I need to cut the steerer tube?

Cutting the steerer tube is optional and typically unnecessary. Fitment depends on your frame’s head tube length, headset, stem, and spacer configuration.

Can I use a star nut with this fork?

No. A star nut must not be used with this fork. Installation requires the included Box One Stem Lock or a compatible expander plug, such as the Box One Carbon Headset system. Using a star nut will void the manufacturer’s warranty.

Important Installation Notes

• The Box One Stem Lock is included.
• Do not install a conventional star nut.
• Confirm headset, stem, and axle compatibility before installation.
• Observe the manufacturer’s 45 kg (99 lbs) rider weight limit and applicable riding restrictions.
